Hastelloy C276 Fittings in Indonesia

Check Pressure Rating of Alloy C276 Buttweld Pipe Elbow and Reducer, View Alloy C276

Hastelloy C276 Fittings are ideal for high-temperature and corrosive environments due to their exceptional corrosion and heat resistance. This nickel-molybdenum-chromium super alloy, enhanced with tungsten, meets ASTM B366 standards. Piping Material offers a variety of seamless and buttweld fittings in different sizes and threads.

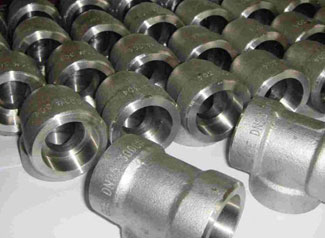

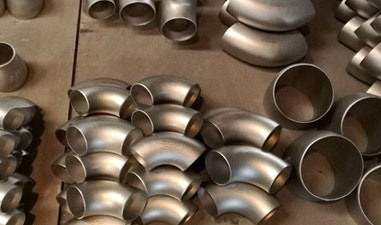

Hastelloy C276 Fittings

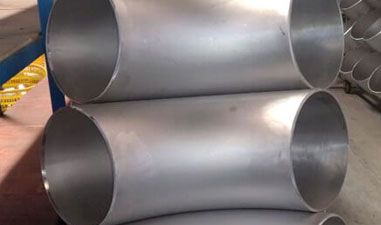

Alloy C276 Buttweld Pipe Elbow

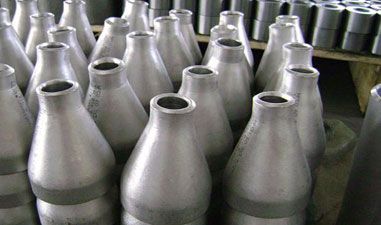

Alloy C276 Reducer

Check the price of Hastelloy C276 Tee, Hastelloy End Cap, and Lateral Tee in Indonesia with ANSI B16.9 and DN250 Sch40 specifications.

The seamless Hastelloy C276 fittings are ideal for instrumental applications due to their smoothness compared to buttweld fittings. Buttweld fittings, on the other hand, are valued for their strength. Varieties include the Alloy C276 Buttweld Pipe Elbow, offering a gradual flow direction change over a bend. Options include long and short radius elbows, typically in 45 and 90-degree angles. These fittings range in size from ½ to 48 inches in nominal diameter. The Alloy C276 Reducer is employed to adjust pipeline diameter by reducing it to a smaller size.

Table of Contents

• Alloy C276 Buttweld Pipe Elbow Material Specification
• Dimensions Chart of Alloy C276 Reducer
• ANSI B16.9 Hastelloy C276 Tee Range
• C276 Hastelloy End Cap Chemical Structure
• UNS N10276 Lateral Tee Mechanical Properties Table
• Basic Types Of Hastelloy C276 Cross Pipe Fittings
• C276 Alloy Equal Tee Equivalent Grades
• ASME SB366 Alloy C276 Long Stub End Standard Weight Chart
• Hastelloy C276 Equal Cross Price List in Indonesia

Hastelloy C276 Fittings Overview Hastelloy C276 Pipe Fittings, compliant with ASME B16.9 and ASME B16.28 standards, offer various thicknesses corresponding to different schedules (5s to 160 and XXS). These fittings, available in seamless, welded, or fabricated forms, include eccentric or concentric reducers based on application requirements. With a melting point of 1370 degrees Celsius, the material boasts high-temperature resistance. Featuring a minimum yield strength of 355MPa and minimum tensile strength of 790MPa, these fittings, such as the ANSI B16.9 Hastelloy C276 Tee and C276 Hastelloy End Cap, excel in high-stress and high-temperature environments with severe corrosive conditions. The exceptional corrosion resistance is attributed to the material's composition of 15% molybdenum, 14.5% chromium, and a nickel base. For more details on specific fittings like the UNS N10276 Lateral Tee, please reach out to us.

Alloy C276 Buttweld Pipe Elbow Material Specification

Specifications	ASTM B366 / ASME SB366
Size	Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″
Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Type	Seamless / Welded / Fabricated

Supplier of Hastelloy C276 Cross Pipe Fittings and Alloy C276 Equal Tee, GOST ХН65МВУ Pipe Elbow Dimension Check, ASME SB366 Alloy C276 Long Stub End in 2" 3/4" sch 40

Dimensions Chart of Alloy C276 Reducer

Hastelloy Butt Weld Fittings
Fittings Types	90º LRs, 90º SRs, 45º Elbows, Concentric Reducers, Eccentric Reducers, Tees, Reducing Tees and Stub Ends Fittings
Sizes	1/2" – 12"
Schedules	Sch 10S - 80S

ANSI B16.9 Hastelloy C276 Tee Range

Seamless	Welded
End Caps	Upto 24"
Elbows	Upto 24"	Upto 42"
Tees	Upto 24"	Upto 36"
Reducers	Upto 24"	Upto 48"
Cross	Upto 8"	Upto 36"
Return Bends	Upto 8"
Swage Nipple	Upto 4"
Special Fittings: Piggable Bends, 3D, 5D, 10D etc. Customized Bends, Miter Bends	As per customer drawings and datasheets
Thickness	Sch 5, Sch 5s, Sch 10, Sch 10s, Sch 20, Sch 30, Sch 40s, Sch 40, Sch STD, Sch 60, Sch 80s, Sch 100, Sch 120, Sch XS, Sch XXS, Sch 160, upto 50mm in case of welded fittings

C276 Hastelloy End Cap Chemical Structure

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

UNS N10276 Lateral Tee Mechanical Properties Table

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Basic Types Of Hastelloy C276 Cross Pipe Fittings

Alloy C-276 N10276 socket-welding threaded half full coupling B16.11

Hastelloy C276 90 degree 45 degree Long Radius Elbow

Alloy C276 90 degree long radius elbow r=1.5d ASME B16.9

1.5 to 5 inch Hastelloy C276 Pipe Fittings

Hastelloy Pipe Fittings, Size: 2 inch

Hastelloy Hydraulic Pipe Fittings, Size: 1/2 inch

Grade C276 Hastelloy Seamless Buttweld Fittings

Hastelloy C-276 Fittings, Size: 3/4 & 2 inch

2 - 5mm Hastelloy C276 Elbow Fittings

SS Hastelloy Elbow, Size: 3 inch-10 inch

Hastelloy 45 Deg Elbow Threaded, Size: 2 inch-3 inch, for Hydraulic Pipe SS 45 Deg Elbow Threaded, Size: 2 inch-3 inch

c276 hastelloy Street Elbow, 1/2 to 48 inch

C276 Alloy Equal Tee Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Stock of Hastelloy C276 ASME SB366 Pipe Bend, High Pressure Pipeline Welded Equal Cross, Seamless/Welded ASTM B366 Hastelloy C276 Long Stub and UNS N10276 Short Radius Elbow

Wide Range of Hastelloy C276 Pipe Fittings

ASTM B366 UNS N10276 Fittings	Hastelloy C276 Pipe Fitting
Hastelloy Alloy C276 90 Degree Elbow	Alloy C276 End Cap
Alloy UNS N10276 45 Degree Elbow	Nickel Alloy C276 Buttweld Fittings
Nickel C276 1D Elbow	Alloy DIN 2.4819 Short Stub End
Nickel Alloy C276 Stub End	ASTM B366 UNS N10276 Pipe Cap
C276 Hastelloy 3D Elbow	Alloy 2.4819 End Cap

Weight Chart for Hastelloy WERKSTOFF NR. 2.4819 45 Degree Elbow, ANSI B 16.9 Buttweld Schedule 80 ASME SB366 Tee, and DIN NR. 2.4819 180 Degree Bend

ASME SB366 Alloy C276 Long Stub End Standard Weight Chart

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Hastelloy C276 Equal Cross Price List in Indonesia

Hastelloy Pipe Fittings	Hastelloy Fittings Price in INR	Hastelloy Fittings Price in UAE Dirham
ASTM B366 Hastelloy C276 1/2″ Tee	97761.88	UAE Dirham 5167.98
Alloy C276 2-1/2″ Schedule 10 Stub End	37506.65	UAE Dirham 1982.71
