Stainless Steel Round Bar in Indonesia

Best Price for ASTM A276 Stainless Steel Bar - View Stainless Steel Rod Manufacturer

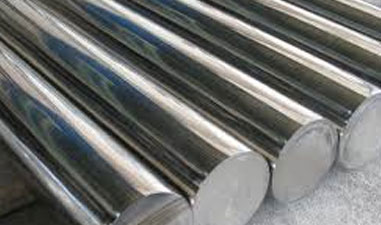

Stainless Steel Round Bar is a durable stainless steel product prized for its robustness and ability to withstand corrosion. Piping Material stands out as a leading supplier in Indonesia, offering a range of grades tailored for various industrial applications. The chromium content in these stainless steels determines their resistance to corrosion, with higher levels ensuring superior protection.

Stainless Steel Round Bar

Stainless Steel Rod

Cold Rolled Steel Round Bar

Explore our extensive range of stainless steel half round bars and refer to our SS round bar size chart for the perfect fit.

Stainless Steel Round Bar The Stainless Steel Round Bar, also known as a rod, is versatile in various applications based on material grade and specific requirements. Different specifications dictate production methods and shapes, like round, square, hexagon, and more. The ASTM A276 standard covers hot rolled and cold drawn bars, excluding forged ones.

Table of Contents

• Stainless Steel Bar Specifications
• Prices of Stainless Steel Half Round Bars
• SS Round Bar Grades
• Standard Stainless Steel Rod Sizes
• ASTM A479 SS Round Bar Chemical Composition
• Mechanical Properties of Forged Stainless Steel Round Bar
• Types of Cold Rolled Stainless Steel Rod
• SS Bars Equivalent
• Round Steel Bars Weight
• Hot Rolled Stainless Steel Round Bar Dimensions

The Hot Rolled Stainless Steel Round Bar offers superior strength and corrosion resistance, though it may have more roughness compared to drawn bars. For applications where aesthetics matter, the Cold Drawn Stainless Steel Round Bar is recommended for its smooth surface. Available in sizes ranging from 5mm to 450mm radius, we provide a comprehensive SS Round Bar Size Chart and pricing upon request.

Stainless Steel Bar Specifications

Stainless Steel Bar Length	2 to 6 meters or 8 to 20 feet
SS Rod Chamfering	Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Ultrasonic Test of ASTM A276 Threaded Rod	As per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO it is 100% tested thru Digital Ultrasonic Flaw Detector, 10423:2003-PSL 3, MIL STD 2154, SEP 1920:1984
SS Round Bar Size Tolerances	h11
Tolerance of Cold Rolled SS Round Bar Length	Stock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch)
Surface Finish of Cold Rolled SS Bar	Cold drawn or Belt polished condition
Bar Heat Treatment	Annealed and Solution Annealed

Suppliers of ASTM A479 Round Bar in Indonesia - Hot Rolled Stainless Steel Round Bar and Cold Drawn SS Round Bar Price

Prices of Stainless Steel Half Round Bars

Stainless Steel Round Bar Price List	Price in Indonesia	Price in UAE
SS Round Bar Price	Rs.578	$27.98
Stainless Rod Prices	Rs.1,595	$77.21
SS Bar Price Per Kg	Rs.414	$20.04
Hot Rolled SS Round Bar Price	Rs.540	$26.14

SS Round Bar Grades

300 Series SS Grades	SS 303, 304, 304L, 309, 310, 316, 316L, 316H, 317, 317L, 321, 347
400 Series SS Grades	410, 410PSQ, 410QDT, 410HT, 416, 416HT, 416PSQ, 420

Standard Stainless Steel Rod Sizes

Type	SIZES in milimeter	SIZES in inches	Tolerance
Peeled and Polished	40.00 - 150.00	1.50 - 6.00	h11, h11-DIN 1013
Cold Drawn and Polish	3.00 to 75.00	1/8 to3.00	h8 to h11
Cold Drawn and Ground	10.00 to 75.00	5/6 to 2.50	h8 to h11
Peeled nd Ground	20.00 - 50.00	3/4 - 2.00	h9 to h11

SS Round Bars Standard lengths of 2000 mm up to 6000 mm.

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

ASTM A479 SS Round Bar Chemical Composition

ASTM Grade	Carbon	Manganese	Silicon	Sulfur	Phospherous	Chromium	Nickel	Molybdenum	Other
304	0.08 max	2.00 max	0.75 max	0.030 max	0.045 max	18.0-20.0	8.0 11.0	-	-
316	0.08 max	2.00 max	0.75 max	0.030 max	0.045 max	16.0-18.0	10.0 14.0	2.0 3.0	-
317L	0.035 max	2.00 max	0.75 max	0.030 max	0.045 max	18.0-20.0	11.0 14.0	3.0 4.0	-
310 S	0.08 max	2.00 max	1.5 max	0.030 max	0.045 max	24.0-26.0	19.0 22.0	3.0 4.0	-
347 H	0.04 0.10	2.00 max	0.75 max	0.030 max	0.045 max	17.0- 19.0	9.0 13.0	-	10C(Cb+Ta)<1.10%
321	0.08	2.00 max	0.75 max	0.030 max	0.045 max	17.0-20.0	9.0 12.0	-	5C 0.70%

Mechanical Properties of Forged Stainless Steel Round Bar

Grade	Elongation	Density	Tensile Strength	Yield Strength (0.2%Offset)	Melting Point
SS 202	40 %	8.0 g/cm3	515 MPa	275 MPa	1454 °C (2650 °F)
SS 303	50 %	55%	Psi – 85,000	Psi – 45,000	Rb 180
SS 304	40%	8.0 g/cm3	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	1400 °C (2550 °F)
SS 304L	40%	8.0 g/cm3	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	1400 °C (2550 °F)
SS 316	35 %	8.0 g/cm3	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	1454 °C (2650 °F)
SS 316L	40 %	8.0 g/cm3	485 Min	170 Min.	1400 °C (2550 °F)

Types of Cold Rolled Stainless Steel Rod

200series 300series 400 series SS bar

SS Round Bar 2mm, 3mm, 6mm Metal Rod

10mm 16mm 18mm 25mm stainless Round rod bar

ASTM A564 Stainless 8mm SS round rod

ASTM A564 ss round bar 12mm bar

5.5 -500mm Industry Astm A276 SS Round Bar Rod

SS Bars Equivalent

UNS NO	Outokumpu	AISI	Werkstoff NO	ASTM NO
S31254	254SMO	904L	1.4547	A276
N08904	6Mo (Moly)		1.4539	A479
			EN10272	B677
				F44

PED approved Stainless Steel Solid Round Bar. SS Threaded Rod, ASTM A276 Rod Weight Chart.

Round Steel Bars Weight

Diameter	Weight Chart	Dia	Weight Chart
(mm)	per metre (kg)	(in)	per metre (kg)
3mm	0.06	1/8"	0.06
4mm	0.10	3/16"	0.14
5mm	0.16	1/4"	0.25
6mm	0.22	5/16"	0.39
7mm	0.30	3/8"	0.56
8mm	0.40	7/16"	0.77
10mm	0.62	1/2"	1.00
12mm	0.89	9/16"	1.22
14mm	1.22	5/8"	1.56
15mm	1.40	11/16"	1.89
16mm	1.59	3/4"	2.25
18mm	2.01	7/8"	3.07
20mm	2.48	1"	4.03
22mm	3.00
24mm	3.57
25mm	3.88

We have huge inventory of SS Welding Rod. Check Stainless Round Bar ASTM A276 Dimension. View 8mm ss rod, 12mm Stainless Round Bar at available sizes

Hot Rolled Stainless Steel Round Bar Dimensions

Diameter or Width (mm)	Weight per meter		Sectional Area		Perimeter
	Square (kg)	Round (kg)	Square (cm²)	Round (cm²)	Square (cm)	Round (cm)
5.0	0.20	0.15	0.25	0.20	2.0	1.57
5.5	0.24	0.19	0.30	0.24	2.2	1.78
6.0	0.28	0.22	0.36	0.28	2.4	1.88
7.0	0.38	0.30	0.49	0.38	2.8	2.20
8.0	0.50	0.39	0.64	0.50	3.2	2.51
9.0	0.64	0.50	0.81	0.64	3.6	2.83
10	0.73	0.63	1.00	0.79	4.0	3.14
11	0.95	0.75	1.21	0.95	4.4	3.46
12	1.13	0.89	1.44	1.13	4.8	3.77
14	1.54	1.21	1.96	1.54	5.6	4.40
16	2.01	1.58	2.56	2.01	6.4	5.03
18	2.54	2.00	3.24	2.54	7.2	5.65
20	3.14	2.47	4.00	3.14	8.0	6.28
22	3.80	2.98	4.84	3.80	8.8	6.91
25	4.91	3.85	6.25	4.91	10.0	7.85
28	6.15	4.83	7.84	6.16	11.2	8.80
32	8.04	6.31	10.24	8.04	12.8	10.05
36	10.17	7.99	12.96	10.18	14.4	11.31
40	12.56	9.86	16.00	12.57	16.0	12.57
45	15.90	12.49	20.25	15.90	18.0	14.14
50	19.62	15.41	25.00	19.64	20.0	15.71
56	24.62	19.34	31.36	24.63	22.4	17.59
63	31.16	24.47	36.69	31.17	25.2	19.79
71	39.57	31.08	50.41	39.59	28.4	22.31
80	50.24	39.46	64.00	50.27	32.0	25.13
