Stainless Steel Buttweld Fittings in Indonesia

Indonesia's Top Manufacturer of SS Seamless Pipe Elbows and Buttweld Schedule 80 SS Pipe Fittings - Specifications Available

Stainless Steel Buttweld Fittings are made from different types of stainless steel, providing flexibility for a range of uses. Different grades give the fittings distinct mechanical properties. Piping Material is a leading supplier of Stainless Steel Buttweld Fittings in various materials, standards, and specifications.

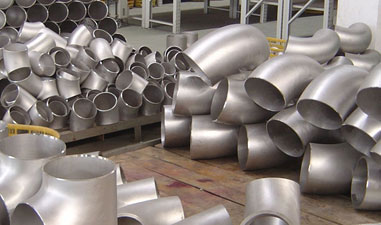

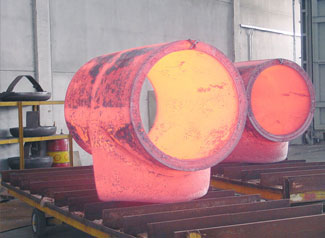

Stainless Steel Buttweld Fittings

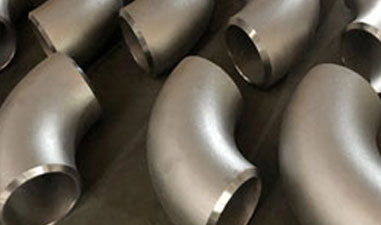

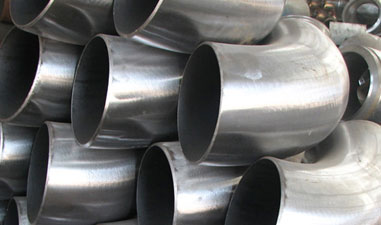

SS Seamless Pipe Elbow

Stainless Steel Fittings

Purchase Chromium Nickel Austenitic Stainless Steel Pipe Fittings, Chromium Nickel Stainless Steel 1D Bend, Pricing for Chromium Nickel Stainless Steel Piping Fittings in Indonesia

Stainless Steel Buttweld Fittings The fittings, compliant with ASTM B366 and A403, cater to various applications like cryogenic, high pressure, and elevated temperatures. Our top-notch SS Seamless Pipe Elbows range from 1/16 inches to 48 inches. Available in seamless and fabricated options, these fittings can withstand temperatures from cryogenic to 1093 degrees Celsius, determined by the material grade and Stainless Steel Fittings Specification.

Table of Contents

• SS Seamless Pipe Elbow Specification Schedule
• SS Pipe Fittings Specification Grade
• Stainless Steel Pipe Fittings Capacity
• Nickel Stainless Steel 1D Bend Composition Standard
• Chromium SS Piping Fittings Mechanical Characteristics
• Stainless Steel Welded Fittings standards
• Common Types Of Stainless Steel 3d Pipe Bend
• Equivalent Grades of Stainless Steel Short Radius Elbow
• Austenitic Stainless Steel 3D Bend Tolerance
• Martensitic Stainless Steel 90 degree Elbow Weight Chart
• Dimensions Standard of Stainless Steel Butt weld Pipe Fittings
• Super Martensitic Stainless Steel Cross Sizes And Schedules
• Price list of SS grades Long Stub End

Stainless Steel Buttweld Fittings Overview: Pressure classes of fittings vary based on material grade, bore size, and wall thickness. Our Indonesian manufacturing plant produces a range of fittings suitable for diverse environments. Options include long radius, short radius, 1D, 2D bends, and more. For instance, the Chromium Nickel Stainless Steel 1D Bend matches the outer diameter of the pipe it fits. Contact us for details and pricing.

SS Seamless Pipe Elbow Specification Schedule

Specifications	ASTM A403 / ASME SA403
Size	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Thickness	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Type	Seamless / Welded / Fabricated

SS Pipe Fittings Specification Grade

• Stainless Steel 304 Buttweld Fittings
• Stainless Steel 304L Buttweld Fittings
• Stainless Steel 304H Buttweld Fittings
• Stainless Steel 310 / 310S Buttweld Fittings
• Stainless Steel 310H Buttweld Fittings
• Stainless Steel 316 / 316L Buttweld Fittings
• Stainless Steel 316Ti Buttweld Fittings

• Stainless Steel 317 Buttweld Fittings
• Stainless Steel 317L Buttweld Fittings
• Stainless Steel 347 Buttweld Fittings
• Stainless Steel 347H Buttweld Fittings
• Stainless Steel 410 Buttweld Fittings
• Stainless Steel 446 Buttweld Fittings
• Stainless Steel 904L Buttweld Fittings

Stainless Steel Pipe Fittings Capacity

• Size: 1/8'' to 104'', SCH5S~SCH160
• Connection End: Butt-welded.

Product

Size*

Wall Thickness

Seamless

Welded

Elbow

1/2"-24"

SCH10S~XXS

√

√

8"-104"

SCH5S~80S/XS

√

Tee

1/2"-24"

SCH10S~XXS

√

√

8"-104"

SCH5S~80S/XS

√

Reducer

1/2"-24"

SCH10S~XXS

√

√

8"-104"

SCH5S~80S/XS

√

Cap

1/2"-80"

SCH10S~SCH160

√

Lap Joint Stub End

1/2"-24"

SCH5S~80S/XS

√

√

8"-80"

SCH5S~80S/XS

√

Nickel Stainless Steel 1D Bend Composition Standard

Type	Grade		ASTM A240 Chemical Composition
	ASTM(A240M)	Others(JIS)	C	Si	Mn	P	S	Ni	Cr	Mo	Others
Austenitic Steels	304	SUS304	0.07	0.75	2.00	0.045	0.030	8.0/10.5	17.5/19.5	―	N0.10
	304H	0.04/0.10	0.75	2.00	0.045	0.030	8.0/10.5	18.0/20.0	―
	304L	SUS304L	0.030	0.75	2.00	0.045	0.030	8.0/12.0	17.5/19.5	―	N0.10
	304N	SUS304N1	0.08	0.75	2.00	0.045	0.030	8.0/10.5	18.0/20.0	―	N:0.10/0.16
	304LN	SUS304LN	0.030	0.75	2.00	0.045	0.030	8.0/12.0	18.0/20.0	―	N:0.10/0.16
	309S	SUS309S	0.08	0.75	2.00	0.045	0.030	12.0/15.0	22.0/24.0	―
	310S	SUS310S	0.08	1.50	2.00	0.045	0.030	19.0/22.0	24.0/26.0	―
	316	SUS316	0.08	0.75	2.00	0.045	0.030	10.0/14.0	16.0/18.0	2.00/3.00	N0.10
	316L	SUS316L	0.030	0.75	2.00	0.045	0.030	10.0/14.0	16.0/18.0	2.00/3.00	N0.10
	316H	0.04/0.10	0.75	2.00	0.045	0.030	10.0/14.0	16.0/18.0	2.00/3.00
	316LN	SUS316LN	0.030	0.75	2.00	0.045	0.030	10.0/14.0	16.0/18.0	2.00/3.00	N:0.10/0.16
	317L	SUS317L	0.030	0.75	2.00	0.045	0.030	11.0/15.0	18.0/20.0	3.0/4.0	N0.10
	317LN	SUS317LN	0.030	0.75	2.00	0.045	0.030	11.0/15.0	18.0/20.0	3.0/4.0	N:0.10/0.22
	321	SUS321	0.08	0.75	2.00	0.045	0.030	9.0/12.0	17.0/19.0	―	N0.10Ti:5ʷʢC+Nʣ/0.70
	347	SUS347	0.08	0.75	2.00	0.045	0.030	9.0/13.0	17.0/19.0	―	Nb:10ʷC/1.00
	904L	SUS890L	0.020	1.00	2.00	0.045	0.035	23.0/28.0	19.0/23.0	4.00/5.00	N0.10Cu:1.0/2.0
	S31254	0.020	0.80	1.00	0.030	0.010	17.5/18.5	19.5/20.5	6.0/6.5	N:0.18/0.25Cu:0.50/1.00
	SUS317J2	0.06	1.50	2.00	0.045	0.030	12.00/16.00	23.00/26.00	0.50/1.20	N:0.25/0.40

Chromium SS Piping Fittings Mechanical Characteristics

Type	Mechanical Properties for Stainless Steel Plates
	ASTM(A240M)	Others(JIS)	Tensile Properties				Hardness
			Yield Strength (Mpa)	Tensile Strength (Mpa)		Elongation (%)	HBW	HRBW
AusteniticSteels	304	SUS304	205	515		40	201	92
	304H	205	515		40	201	92
	304L	SUS304L	170	485		40	201	92
	304N	SUS304N1	240	550		30	217	95
	304LN	SUS304LN	205	515		40	217	95
	309S	SUS309S	205	515		40	217	95
	310S	SUS310S	205	515		40	217	95
	316	SUS316	205	515		40	217	95
	316L	SUS316L	170	485		40	217	95
	316H	205	515		40	217	95
	316LN	SUS316LN	205	515		40	217	95
	317L	SUS317L	205	515		40	217	95
	317LN	SUS317LN	240	550		40	217	95
	321	SUS321	205	515		40	217	95
	347	SUS347	205	515		40	201	92
	N08904/904L	SUS890L	220	490		35	196	90
	S31254	310	655		35	223	96
	SUS317J2	345	690		40	250	100

Stainless Steel Welded Fittings standards

ASME/ANSI B16.9 ASME/ANSI B16.28 MSS-SP-43 MSS-SP-75 BS 1640

DIN/EN10253 JIS B2311/2312/2313 ISO 3419 ISO 5251 GOST etc.

Common Types Of Stainless Steel 3d Pipe Bend

Cap Butt Weld Fittings SS welded

long radius 90 elbow butt weld fittings ss welded

Lap Joint Stub End butt Weld Fittings SS Welded

Short 90 Elbow Butt Weld Fittings SS Seamless

concentric reducer butt weld fittings ss welded

Reducing Tee Butt Weld Fittings Welded

Tee Butt Weld Fittings SS Welded

Concentric Reducer Butt Weld Fittings SS Seamless

Long Radius 90 Elbow Butt Weld Fittings SS Seamless

Eccentric Reducer Butt Weld Fittings SS Welded

Long Radius 45 Elbow Butt Weld Fittings SS Seamless

Long Radius 45 Elbow Butt Weld Fittings SS Welded

Equivalent Grades of Stainless Steel Short Radius Elbow

S G4304	ASTM	UNS	KS	EN10095	AS	CNS
SUS201	201	S20100	STS201	1.4372	201-2	201
SUS202	202	S20200	STS202	1.4373	–	202
SUS301	301	S30100	STS301	1.4319	301	301
SUS304	304	S30400	STS304	1.4301	304	304
SUS304L	304L	S30403	STS304L	1.4306	304L	304L
SUS304N1	304N	S30451	STS304N1	1.4315	304N1	304N1
SUS304N2	XM21	S30452	STS304N2	–	304N2	304N2
SUS304LN	304LN	S30453	STS304LN	–	304LN	304LN
SUS305	305	S30500	STS305	1.4303	305	305
SUS309S	309S	S30908	STS309S	1.4833	309S	309S
SUS310S	310S	S31008	STS310S	1.4845	310S	310S
SUS316	316	S31600	STS316	1.4401	316	316
SUS316Ti	316Ti	S31635	–	1.4571	316Ti	316Ti
SUS316L	316L	S31603	STS316L	1.4404	316L	316L
SUS316N	316N	S31651	STS316N	–	316N	316N
SUS316LN	316LN	S31653	STS316LN	1.4429	316LN	316LN
SUS316J1	–	–	STS316J1	–	316J1	316J1
SUS316J1L	–	–	STS316J1L	–	–	316J1L
SUS317	317	S31700	STS317	–	317	317
SUS317L	317L	S31703	STS317L	1.4438	317L	317L
SUS321	321	S32100	STS321	1.4541	321	321
SUS347	347	S34700	STS347	1.455	347	347
SUS329J1	329	S32900	STS329J1	1.4477	329J1	329J1
SUS329J3L	–	S31803	STS329J3L	1.4462	329J3L	329J3L
SUS405	405	S40500	STS405	1.4002	405	405
SUH409	409	S40900	STS409	1.4512	409L	409L
SUS410L	–	–	STS410L	–	410L	410L
SUS430	430	S43000	STS430	1.4016	430	430
SUS434	434	S43400	STS434	1.4113	434	434
–	–	S43940	–	1.4509	439	439
SUS444	444	S44400	STS444	1.4521	444	444
SUS403	403	S40300	STS403	–	403	403
SUS410	410	S41000	STS410	1.4006	410	410
SUS420J1	420	S42000	STS420J1	1.4021	420	420J1
SUS420J2	–	–	STS420J2	1.4028	420J2	420J2
SUS440A	440A	S44002	STS440A	–	440A	440A

Austenitic Stainless Steel 3D Bend Tolerance

Nominal Diameter		O.D.For Bevel End	I.D.For End	Wall Thickness	Elbow		Tee		Reducer	Cap	180°Elbow
DN	NPS				A	B	C	M	H	E	O	K	Roughness
15-65	1/2-2 1/2	+1.6/-0.8	0.8	-12.50%	1.6	1.6	1.6	1.6	1.6	3.2	6.4	6.4	0.8
80-100	3-4	1.6	1.6							6.4
125-200	5-8	+2.4/-1.6
250-450	10-18	+4/-3.2	3.2		2.4	2.4	2.4	2.4	2.4		9.6
500-600	20-24	+6.4/-4.8	4.8		3.2	3.2	3.2	3.2	4.8	9.6
650-750	26-30
					4.8	4.8	4.8	4.8
800-1200	32-48
1250-1500	50-60	+9.6/-6.4	6.4		9.6	9.6	9.6	9.6	9.6
1550-1750	62-70	+12.7/-9.6	9.6		12.7	12.7
1800-2000	72-80	+16/-12	12		16	16

Buttweld Fittings ASME B16.9 WP304 Angularity Tolerance

Nominal Size		DN			15-100		125-200			250-300		350-400		450-600		650-750			800-1050			1100-1200		1300-1500
		NPS			1/2 - 4		5-8			10-12		14-16		18-24		26-30			32-42			44-48		52-60
Angularity Tolerance	Off Angle	Q			1		2			3		3		4		5			5			5		6.4
	Off Plain	P			2		4			5		6		10		10			13			19		20

Martensitic Stainless Steel 90 degree Elbow Weight Chart

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product range and theoretical weights (kg)
DN	Schedule 10S			Schedule 40S			Schedule 80S
	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee	Con reducer	Ecc reducer	Reducing tee
40x.25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50x25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50x40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80x.50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100x50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100x80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150x80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150x100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200x100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200x150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31

Check the dimensions of SS Welded Buttweld Fittings - ANSI B 16.9 Ferritic Stainless Steel grade WP 45 degree Elbow and Short Radius Elbow

Dimensions Standard of Stainless Steel Butt weld Pipe Fittings

Nominal Pipe Size	Outside Diameter		90° Elbows		45° Elbows		180° Returns
(inches)			Long Radius	Short Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Stainless Steel Tees, Caps, Stub Ends and Straight Crosses

Nominal Pipe Size	Outside Diameter		Caps	Straight Tees	Straight Crosses	Stub Ends
(inches)	(mm)	(inches)	Length (inches)	Center to End (inches)	Center to End (inches)	Lap Diameter (inches)	Long Length (inches)	Short Length (inches)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

Stainless Steel Reducers

Nominal Pipe Size	Outside Diameter		Reducers
Reduced from (inches)	(mm)	(inches)	Reduced to (inches)	Concentric & Eccentric Length (inches)
1/2	21.3	0.840	1/4	1 1/2
			3/8	1 1/2
3/4	26.7	1.050	3/8	2
			1/2	2
1	33.4	1.315	3/8	2
			1/2	2
			3/4	2
1 1/4	42.2	1.660	1/2	2
			3/4	2
			1	2
1 1/2	48.3	1.900	1/2	2 1/2
			3/4	2 1/2
			1	2 1/2
			1 1/4	2 1/2
2	60.3	2.375	3/4	3
			1	3
			1 1/4	3
			1 1/2	3
2 1/2	73.0	2.875	1	3 1/2
			1 1/4	3 1/2
			1 1/2	3 1/2
			2	3 1/2
3	88.9	3.500	1	3 1/2
			1 1/2	3 1/2
			2	3 1/2
			2 1/2	3 1/2
3 1/2	101.6	4.000	1 1/4	4
			1 1/2	4
			2	4
			2 1/2	4
			3	4
4	114.3	4.500	1 1/2	4
			2	4
			2 1/2	4
			3	4
			3 1/2	4
5	141.3	5.563	2	5
			2 1/2	5
			3	5
			3 1/2	5
			4	5
6	168.3	6.625	2 1/2	5 1/2
			3	5 1/2
			3 1/2	5 1/2
			4	5 1/2
			5	5 1/2
8	219.1	8.625	3	6
			3 1/2	6
			4	6
			5	6
			6	6
10	273.1	10.750	4	7
			5	7
			6	7
			8	7
12	323.9	12.750	5	8
			6	8
			8	8
			10	8

Extensive Selection of 90 Degree Elbows in Martensitic Stainless Steel, Cross Fittings in Super Martensitic Stainless Steel, and Butt Weld Pipe Fittings in Super Ferritic Stainless Steel Available in Various Schedules

Super Martensitic Stainless Steel Cross Sizes And Schedules

Stainless Steel Butt Weld Fittings
A403 SS Fittings Types	ANSI B16.9 SS 90º LRs, 90º SRs, 45º Elbows, ASME B16.9 ASTM A403 Concentric Reducers, Stainless Steel A403 Eccentric Reducers, A403 SS Tees, Reducing Tees and Stub Ends Fittings
Sizes	1/2″ – 12″
Schedules	Sch 10S – 80S

Price list of SS grades Long Stub End

Stainless Steel Buttweld Fittings Price Per Piece in Indonesia	Stainless Steel Pipe Fittings Price in Indonesia
Stainless Steel Schedule 10 Pipe Fittings Price in Indonesia	$12.10 – $6,050.00
ASME/ANSI B16.9 Welding Fittings Price in Indonesia	$12.10 – $6,050.00
SCH 80 Stainless Steel Butt Weld Fittings Price in Indonesia	$15-$6,000
SCH 5 Stainless Steel Buttweld Fittings Prices	$19-$5000
Price of ASTM B366 WP 904L SS Pipe Fittings in Jawa Timur	$18-$5500
