Inconel 600 Bolts Nuts in Indonesia

Indonesia Manufacturer of UNS N06600 Stud Bolt Dimension Fasteners in M5 M6 M10 Alloy 600

Inconel 600 Bolts Nuts are ideal for environments susceptible to chloride ion stress cracking and caustic corrosion. Resistant to high-temperature alkalis, they excel against steam, carbon dioxide, and exhaust gases. Piping Material offers a range of Inconel 600 Bolts Nuts in various sizes and styles.

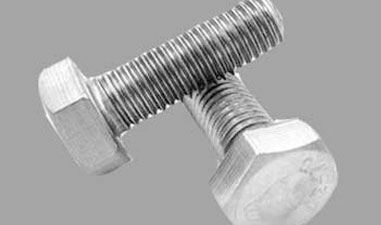

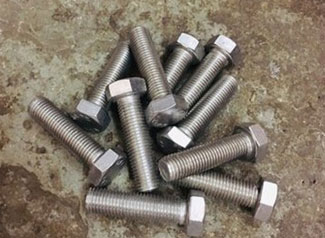

Inconel 600 Bolts Nuts

Alloy 600 Fasteners

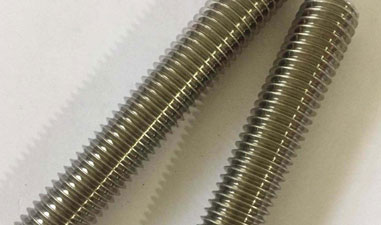

UNS N06600 Stud Bolt

Price in Indonesia for Inconel 600 Screws, ISO4017 Alloy 600 Bolts, and ASME SB166 Alloy 600 Washer.

Inconel 600 Bolts Nuts are compliant with ASTM B166 requirements for hot and cold finished bars, rods, bolts, and nuts. Available in various standards like DIN, ASTM, and BS, these fasteners can be custom lengths ranging from 3mm to 200mm. Sizes vary from M3 to M56 and 3/6 inches to 2 inches, offering options like T nuts, panel nuts, and square bolts in the Alloy 600 Fasteners range.

Table of Contents

• Specification Format of Alloy 600 Fasteners
• Dimension Schedule of UNS N06600 Stud Bolt
• Composition Chart of Inconel 600 Screws
• Most Commonly Used ASME SB166 Alloy 600 Washer Types
• Equivalent Grades of Inconel 600 Hex Bolts
• ASTM B166 UNS N06600 Threaded Rod Weight In Kg
• Mechanical Analysis of Alloy 600 Bolts
• Price Table of Inconel 600 Din 2.4816 Square Bolt/Nut

Inconel 600 Bolts Nuts The material boasts a high yield strength of at least 310MPa and a high tensile strength of at least 655MPa. Various fasteners cater to different needs - threaded or non-threaded, heavy-duty or gap-filling. The UNS N06600 Stud Bolt comprises an Inconel 600 rod with threads on both ends, ideal for connecting components with female threads. Inconel 600 Screws, on the other hand, are used independently without bolts, particularly useful when nuts can't be used and a flat surface is required. These screws offer a strong, corrosion-resistant, and ductile solution for applications in chemical, food processing, heat exchangers, and condensers. For more options like the ASME SB166 Alloy 600 Washer, contact us for pricing details.

Specification Format of Alloy 600 Fasteners

Specifications	ASTM B 166 ASME SB 166
Standard	DIN, ASTM, BS and all International Standards
Length	3 mm to 200 mm
Size	M3 – M56 | 3/6″ to 2″ | Custom Sizes
Screw Type	Inconel 600 Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc.
Bolts Types	Inconel 600 Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc.
Washer Types	Inconel 600 Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc.
Studs Types	Inconel 600 Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc.
Nut Types	Inconel 600 Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc.

Check Dimensions of Wholesale M1.6~M12 Inconel Gost МНЖМц 28-2,5-1,5 Hex Bolts, ASTM B166 UNS N06600 Threaded Rod, and Inconel 600 Socket Head Cap Screws

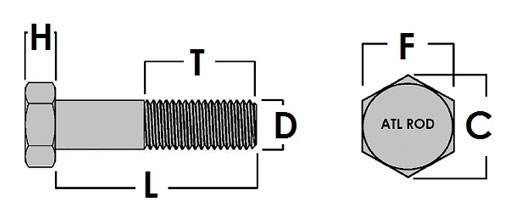

Dimension Schedule of UNS N06600 Stud Bolt

Bolts Diameter	D	F			C		H
	Body Diameter	Width Across Flats			Width Across Corners		Height
	Max	Basic	Max	Min	Max	Min	Basic	Max	Min
1/2	0.515	7/8	0.875	0.850	1.010	0.969	11/32	0.364	0.302
5/8	0.642	1-1/16	1.062	1.031	1.227	1.175	27/64	0.444	0.378
3/4	0.768	1-1/4	1.250	1.212	1.443	1.383	1/2	0.524	0.455
7/8	0.895	1-7/16	1.438	1.394	1.660	1.589	37/64	0.604	0.531
1	1.022	1-5/8	1.625	1.575	1.876	1.796	43/64	0.700	0.591
1-1/8	1.149	1-13/16	1.812	1.756	2.093	2.002	3/4	0.780	0.658
1-1/4	1.277	2	2.00	1.938	2.309	2.209	27/32	0.876	0.749
1-3/8	1.404	2-3/16	2.188	2.119	2.526	2.416	29/32	0.940	0.810
1-1/2	1.531	2-3/8	2.375	2.300	2.742	2.622	1	1.036	0.902
1-3/4	1.785	2-3/4	2.750	2.662	3.175	3.035	1-5/32	1.196	1.054
2	2.039	3-1/8	3.125	3.025	3.608	3.449	1-11/32	1.388	1.175
2-1/4	2.305	3-1/2	3.500	3.388	4.041	3.862	1-1/2	1.548	1.327
2-1/2	2.559	3-7/8	3.875	3.750	4.474	4.275	1-21/32	1.708	1.479

Composition Chart of Inconel 600 Screws

Element	Content (%)
Nickel, Ni	72.0 min
Silicon, Si	.50 max
Carbon, C	.15 max
Sulphur, S	.015 max
Copper, Cu	.50 max
Iron, Fe	6.0-10.0
Manganese, Mn	1.00 max

Most Commonly Used ASME SB166 Alloy 600 Washer Types

Inconel 600 alloy steel m20 bolts and nuts

Inconel 600 DIN 933 Hex Head Bolts with Full Threaded

Inconel 600 601 UNS N06601 nickel alloy m20 bolts and nuts

Inconel 600 M8 Bolts stud Bolts hexagon head flange Bolts

Inconel 600 UNS N06600 DIN/EN 2.4816 12 point flange shoulder Bolts

Inconel 600 Nickel Alloy Steel Hex Flange Bolts And Nuts

alloy inconel 600 N06600 u Bolts

Inconel 600 Stud Bolts

Inconel 600 Cap Head Flange Bolts and Nut

Inconel 600 UNS N06600 EN 2.4816 Bolts nut Flat Washer M12

Inconel 600 Hex Bolts Nut Full/Half Thread

( Inconel 600 / 2.4816 UNS N06600 ) Hex Bolts with nuts and washers

Equivalent Grades of Inconel 600 Hex Bolts

Alloy	Common Name	Related Specification
		British	European	ASTM	UNS
Alloy 600	Inconel 600®	BS 3076 NA 14	2.4816	B166	N06600

View Alloy 600 Nut Properties from High-Quality OEM ODM Factory Suppliers in Indonesia. Durable Inconel 600 Alloy Shoulder Nuts and Nickel Alloy 600 Hex Head Bolts available in Jawa Timur.

Mechanical Analysis of Alloy 600 Bolts

Density	8.47 g/cm3
Melting Point	1413 °C (2580 °F)
Tensile Strength	Psi – 95,000 , MPa – 655
Yield Strength (0.2%Offset)	Psi – 45,000 , MPa – 310
Elongation	40 %

Weight Chart for Inconel Alloy 600 Lock Nut, Eye bolts DIN933 Hardware Fasteners, U Bolts, and T Bolts in Nickel 600 Alloy.

ASTM B166 UNS N06600 Threaded Rod Weight In Kg

Size (MM)	Weight per Metre	Size (UNC)	Weight per Mtr
M2	0.0187
M2.5	0.030
M3	0.044
M3.5	0.060
M4	0.078
M5	0.124
M6	0.177	¼”	0.194
M8	0.319	5/16”	0.323
M10	0.500	3/8”	0.469
		7/16”	0.650
M12	0.725	½”	0.896
M14	0.970	9/16”	1.096
M16	1.330	5/8”	1.342
M18	1.650
M20	2.080	¾”	2.021
M22	2.540	7/8”	2.756
M24	3.000	1”	3.638
M27	3.850	1 1/8”	4.545
M30	4.750	1 ¼”	5.718
M33	5.900	1 3/8”	6.842
M36	6.900	1 ½”	8.281
M39	8.200	1 5/8”	9.726
M42	9.400	1 ¾”	11.231
M45	11.000	1 7/8”	13.038
M48	12.400	2	14.741

Price Table of Inconel 600 Din 2.4816 Square Bolt/Nut

Inconel Alloy 600 Fasteners Price List	Price Per Pcs.
Alloy UNS N06600 Nuts price	USD $1.30
Inconel 600 Hex Bolts price	USD $6.50
600 Machine bolts price	USD $5.60
Inconel 600 Allen bolts price	USD $5.25
