Nitronic 50 Round Bar in Indonesia
Find the best prices for Alloy 50 Rod and XM-19 Flat Bar from a trusted manufacturer in Indonesia
Nitronic 50 Round Bar is a robust material with superior strength compared to standard austenitic stainless steel. It offers excellent oxidation resistance. Piping Material is a top producer and supplier of these bars for diverse uses. Comprising chromium, nickel, manganese, molybdenum, and iron, the material's composition, including a minimum of 20% chromium, 11% nickel, and 4% manganese, ensures its strength and resistance against corrosion.

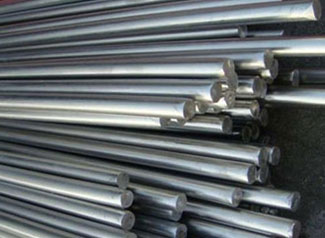

Nitronic 50 Round Bar
Alloy 50 Rod
XM-19 Flat Bar
Explore the Dimensions of Nitronic 50 Hex Bar, XM-19 Stainless Steel Bar, and Nitronic 50 Flat Bar Weight Chart
The Nitronic 50 Round Bar complies with ASTM, ASME and API standards, specifically ASTM A276 and A479. Available in sizes ranging from 6mm to 300mm and lengths from 1m to 6m, it can also be customized to specific lengths. The bars are offered in various finishes such as bright, polish, and black, and in different shapes including round, square, and hexagon. The XM-19 Flat Bar boasts a high hardness value of 241BHN, with a minimum tensile strength of 95ksi and a minimum yield strength of 50ksi. It is suitable for use in both high and low-temperature environments.
Table of Contents
- Specification Format of Alloy 50 Rod
- XM-19 Flat Bar Price per Foot
- Physical Component of Nitronic 50 Flat Bar
- XM-19 Stainless Steel Bar Chemical Formula
- Nitronic 50 Hex Bar Mechanical Analysis
- Most Common Types Of UNS S20910 Polished bar
- Equivalent Grades Of UNS S20910 XM-19 Square bar
- Nitronic 50 Stainless Steel Threaded Rod Weight Per Foot
- DIN 1.3964 Forged Bars Size Inch to MM
- SS Nitronic 50 Triangular Bar Diameter Tolerance
The Nitronic 50 Round Bar offers exceptional resistance to corrosion in marine settings. It is utilized in a variety of applications, including pumps, valves, pressure vessels, marine shafts, and downhole rigging. The UNS S20910 XM-19 Stainless Steel Bar boasts versatile performance, thanks to its unique enhancements. This material undergoes dual rolling, annealing, and cold working processes to achieve the desired properties. While initially non-magnetic, prolonged exposure to cold working can make it magnetic. For more details on the Nitronic 50 Round Bar and pricing information, please get in touch with us.
Specification Format of Alloy 50 Rod
| Stainless Steel Round Bar type | Nitronic 50 stainless steel round bars |
| Standards | A276, A479, A276, GB4226-84, GB/T1220-2007, JISG4311-91, JIS G4318-98, EN 10095-99, GB4226-84, EN10088-3-2005, JIS G904L3-2005, etc |
| Range | Range – 3.17mm to 350mm dia |
| Diameter | 2.0-400mm |
| Length | 3000mm, 6000mm or according to the customer’s requirement. |
| Type | Round bar, rod, square bar, flat bar, hexagon bar, angle bar, channel bar, threaded bar |
| Technique | Forged/Hot Rolled/Cold Drawn/Peeled |
| Surface | bright round bar, pickled round bar, black round bar |
| Package Details | Standard seaworthy package(wooden boxes package,pvc package, or other package) |
| Export Area | USA, UAE, Europe, Asia, Middle East, Africa, South America |
Price List of DIN 1.3964 Forged Bars, PED Approved UNS S20910 Polished Bar, UNS S20910 XM-19 Square Bar, Nitronic 50 Stainless Steel Threaded Rod Available
XM-19 Flat Bar Price per Foot
| Alloy 50 Rod Price | XM-19 Flat Bar Price in Indonesia |
|---|---|
| nitronic 50 ss316 316s 316L steel round bar | US $2000-5000 / Metric Ton |
| Nitronic 50 Stainless Steel solid round bar price per kg | US $5-30 / Kilogram |
| Nitronic 50 SS round bar price per kg | US $5-30 / Kilogram |
| Nitronic 50 round bar UNS S20910 | US $1500-2500 / Ton |
| Nitronic 50 UNS S21800 round bar | US $1000-3000 / Ton |
| Nitronic 50 Bright Surface Rod For Sale | US $10-35 / Kilogram |
Physical Component of Nitronic 50 Flat Bar
| Temperature, °F | 70 | 200 | 300 | 400 | 600 | 800 | 900 | 1000 | 1200 | 1400 |
| Coefficient of Thermal Expansion, in/in°F x 10-6 | 9.0 | 9.2 | 9.6 | 9.9 | 10.2 | 10.5 | 10.8 | |||
| Thermal Conductivity Btu • ft/ft2 • hr • °F |
108 | 108 | 124 | 141 | 160 | |||||
| Modulus of Elasticity, psi X 106 STA |
26.2 | |||||||||
| Density: 0.285 lb/inch3 | ||||||||||
| Melting Range: 2579-2642°F | ||||||||||
| Electrical Resistivity: 492 ohm circ-mil/ft | ||||||||||
XM-19 Stainless Steel Bar Chemical Formula
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Cb | V | Fe | |
| MIN | 11.5 | 20.5 | 1.5 | 4.0 | – | – | 0.2 | – | – | 0.1 | 0.1 | – |
| MAX | 13.5 | 23.5 | 3.0 | 6.0 | 1.0 | 0.06 | 0.4 | 0.03 | 0.045 | 0.3 | 0.3 | Balance |
Nitronic 50 Hex Bar Mechanical Analysis
| Temperature, °F | -320 | -100 | 75 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1350 | 1500 |
| Ultimate Tensile Strength, ksi | – | – | 117 | 107 | 96 | 92 | 89 | 84 | 74 | 66 | 52 |
| 0.2% Yield Strength, ksi | – | – | 60 | 50 | 38 | 35 | 34 | 32 | 31 | 31 | 30 |
| Elongation, 2% | – | – | 45 | 43.5 | 43.5 | 42.5 | 43.5 | 41 | 38 | 37 | 41 |
| Impact Strength, ft-lbs | 50 | 115 | 170 | – | – | – | – | – | – | – | – |
Most Common Types Of UNS S20910 Polished bar
Nitronic 50 round bars 105mm 125 mm
4-50mm duplex Nitronic 50 round bars
ASTM DIN EN Nitronic 50 Round Bars 8 - 50 MM
Nitronic 60 stainless steel Dia 5-12mm round bars
Nitronic 50 300M 4340M black surface round bars
10mm XM-19 Flat Bars
Equivalent Grades Of UNS S20910 XM-19 Square bar
| STANDARD | UNS | JIS |
|---|---|---|
| SS Nitronic 50 | S20910 | SUH 660 |
Nitronic 50 Stainless Steel Threaded Rod Weight Per Foot
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3 | 0.017 | 0.055 | 20 | 0.753 | 2.470 | 3" | 10.900 | 35.762 |
| 1/8" | 0.019 | 0.062 | 22 | 0.908 | 2.979 | 3-1/4" | 12.800 | 41.996 |
| 5/32" | 0.029 | 0.095 | 7/8" | 0.926 | 3.038 | 3-1/2" | 14.850 | 48.772 |
| 4 | 0.030 | 0.098 | 24 | 1.080 | 3.543 | 3-3/4" | 17.001 | 55.780 |
| 3/16" | 0.043 | 0.141 | 25 | 1.180 | 3.871 | 4" | 19.306 | 63.340 |
| 5 | 0.047 | 0.154 | 1" | 1.210 | 3.970 | 4-1/4" | 21.908 | 72.249 |
| 7/32" | 0.058 | 0.190 | 26 | 1.271 | 4.170 | 4-1/2" | 24.4487 | 80.340 |
| 6 | 0.068 | 0.223 | 27 | 1.368 | 4.490 | 4-3/4" | 27.366 | 90.249 |
| 1/4" | 0.076 | 0.249 | 1-1/8" | 1.534 | 5.033 | 5" | 30.461 | 99.940 |
| 7 | 0.091 | 0.298 | 30 | 1.691 | 5.548 | 5-1/2" | 36.690 | 121.000 |
| 5/16" | 0.118 | 0.387 | 1-1/4" | 1.924 | 6.349 | 6" | 43.860 | 143.900 |
| 8 | 0.120 | 0.398 | 32 | 1.894 | 6.314 | 6-1/2" | 51.093 | 167.630 |
| 9 | 0.152 | 0.498 | 1-3/8" | 2.303 | 7.550 | 7" | 59.432 | 196.000 |
| 3/8" | 0.170 | 0.557 | 35 | 2.390 | 7.553 | 7-1/2" | 68.226 | 225.000 |
| 10 | 0.189 | 0.620 | 36 | 2.438 | 7.999 | 8" | 77.586 | 254.55 |
| 11 | 0.228 | 0.748 | 38 | 2.792 | 8.903 | 10" | 121.048 | 397.140 |
| 7/16" | 0.232 | 0.761 | 1-1/2" | 2.715 | 8.951 | |||
| 12 | 0.271 | 0.889 | 40 | 3.009 | 9.872 | |||
| 1/2" | 0.303 | 0.994 | 1-5/8" | 3.200 | 10.449 | |||
| 13 | 0.318 | 1.043 | 1-3/4" | 3.712 | 12.179 | |||
| 14 | 0.368 | 1.207 | 45 | 3.807 | 12.555 | |||
| 9/16" | 0.383 | 1.256 | 1-7/8" | 4.260 | 13.977 | |||
| 15 | 0.424 | 1.391 | 48 | 4.330 | 14.205 | |||
| 5/8" | 0.473 | 1.551 | 50 | 4.698 | 15.414 | |||
| 16 | 0.481 | 1.578 | 2" | 4.848 | 15.906 | |||
| 17 | 0.543 | 1.791 | 2-1/8" | 5.475 | 17.963 | |||
| 11/16" | 0.573 | 1.880 | 2-1/4" | 6.135 | 20.128 | |||
| 18 | 0.610 | 2.001 | 60 | 6.768 | 22.205 | |||
| 3/4" | 0.682 | 2.237 | 2-3/8" | 6.838 | 22.435 | |||
| 2-1/2" | 7.576 | 24.856 | ||||||
| 2-5/8" | 8.354 | 27.409 | ||||||
| 2-3/4" | 9.169 | 30.083 | ||||||
Buy SS Nitronic 50 Triangular Bars at factory price, Suppliers of ASTM A276 Nitronic 50 Hexagonal Bars, ASME SA479 UNS S20910 Nitronic 50 Cold Drawn Round Bars Sizes
DIN 1.3964 Forged Bars Size Inch to MM
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6" – 2.50" | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50" – 6.00" | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00" | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8" – 3.00" | h8-h9-h10-h11 |
Nitronic 50 Bar Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
SS Nitronic 50 Triangular Bar Diameter Tolerance
| Tolerances for Alloy 50 Rod | ||
|---|---|---|
| Shape / Section | Size, diameter or width across flats | Permitted variation |
| milimeter | milimeter | |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
Tolerances of Turned XM-19 Flat Bar (BS 970-3)
| Finish condition | Nitronic 50 Round Bar Tolerance class to ISO 286-2 | ||||||
|---|---|---|---|---|---|---|---|
| h6 | h7 | h8 | h9 | h10 | h11 | h12 | |
| Drawn | – | – | – | R | R | R,S,H | R,S,H |
| Turned | – | – | – | R | R | R | R |
| Ground | R | R | R | R | R | R | R |
| Polished | R | R | R | R | R | R | R |
| R = Round; S = Square; H = Hexagon | |||||||
Fermonic 50/XM-19 Rods, ASTM A479 XM-19 Rectangular Bars. We have a full range Hot Rolled Nitronic 50 SS Round bar, Get Quick delivery of UNS S20910 Stainless Steel Black Bars, Nitronic 50 Steel Bars in Jawa Timur
Stock Of ASTM A276 Nitronic 50 Hexagonal Bar
| Nitronic Alloy 50 Rectangular bars | AISI Nitronic Alloy 50 Flat bars |
| nitronic 50 steel T-bars | Nitronic UNS S20910 Rounds |
| Nitronic 50 / XM-19 Square bars | Nitronic Alloy 50 Half-Round bars |
| 50 Nitronic Alloy Round bars | stainless steel nitronic 50 Hexagonal bars |
