Hastelloy C276 Pipe in Indonesia

UNS N10276 Tubing suppliers in Jawa Timur offering SCH 10, 40, 80 Alloy C276 Seamless Tube

Hastelloy C276 Pipe is composed of a nickel molybdenum chromium alloy known for its exceptional resistance to corrosion. This material is highly resistant to both pitting and crevice corrosion. The inclusion of tungsten in its composition further enhances its versatility, making it a top choice for corrosion resistance worldwide.

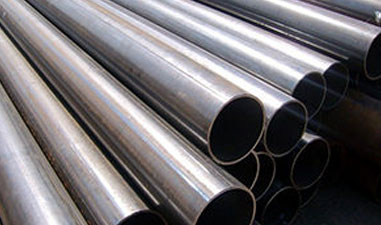

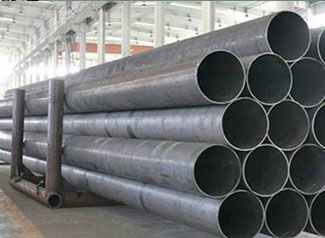

Hastelloy C276 Pipe

Alloy C276 Seamless Tube

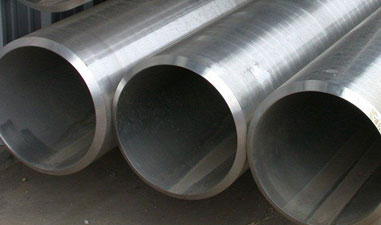

UNS N10276 Tubing

Manufacturer of Alloy C276 ERW Pipe, Best Selling Hastelloy C276 Seamless Pipe, discover ASME B36.19 Hastelloy C276 Welded Pipe price per meter in Indonesia.

Hastelloy C276 Pipe Piping Material offers a wide range of Hastelloy C276 pipes and tubes in different sizes and forms. The pipes are available in seamless, ERW, fabricated, and welded options. These pipes adhere to ASTM B622 and B619 standards, with dimensions specified by ASTM, ASME, and API guidelines. Length options include single random, double random, and cut to size.

Table of Contents

• Specification List of Alloy C276 Seamless Tube
• UNS N10276 Tubing Schedule Chart
• Hastelloy C276 Seamless Pipe Sizes In Mm
• Alloy C276 ERW Tube Size In Inch
• Hastelloy C276 Welded Pipe Chemical Composition
• C276 Hastelloy Hexagonal Pipe Mechanical Strength Table
• Most Selling Types Of C276 Alloy Pipes
• Equivalent Grade Of ASME SB622 Hastelloy Square Pipe
• Weight Of ASTM B619 Hastelloy C276 Rectangular Pipe
• UNS N10276 Decorative Pipe Pressure Chart
• Price List of Hastelloy C276 Tube

The Hastelloy C276 Pipe comes in various sizes, ranging from 15 inches to 150 inches. The schedules range from sch5 to sch160, with corresponding pressure ratings. It includes hydraulic pipes and round pipe types, with options for plain, threaded, or bevel ends. The composition includes carbon, manganese, silicon, iron, phosphorus, sulfur, and cobalt, giving it a high melting point of 1370 degrees Celsius. The UNS N10276 Tubing has a minimum yield strength of 355MPa and a minimum tensile strength of 790MPa. The material is dense, with a weight of 8.89 grams per cubic centimeter. These pipes and tubes are used in tough applications such as pollution control, exhaust pipes, heat exchangers, and marine engineering. For more details on the ASTM B619 Hastelloy C276 Welded Pipe and pricing, please get in touch with us.

Specification List of Alloy C276 Seamless Tube

Specifications	ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619
Dimensions	ASTM, ASME and API
Size	15″NB TO 150″NB IN
Specialized in	Large Diameter Size
Schedule	SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

High-quality Prime C276 Hastelloy Hexagonal Pipe, Small Diameter ASME SB622 Hastelloy Square Pipe with Superior Dimensions, Top-notch C276 Alloy Pipes

UNS N10276 Tubing Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Hastelloy C276 Seamless Pipe Sizes In Mm

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

Hastelloy C276 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Alloy C276 ERW Tube Size In Inch

Wall Thickness	Alloy C276 Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Hastelloy C276 Welded Pipe Chemical Composition

Alloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

C276 Hastelloy Hexagonal Pipe Mechanical Strength Table

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Most Selling Types Of C276 Alloy Pipes

Cold Rolled Alloy C276 Tube

Nickel alloy 2.4819 pipe C276 seamless pipe

ASTM B619 N10276 2.4819 C276 welded nickel and nickel-cobalt alloy pipes

NS3304 N10276 2.4819 Hastelloy C276 Corrosion Resistant Alloy Seamless Tube

Hastelloy C-276 pipe hastelloy c276 tube

asme sb575 hastelloy c276 b b3 pipe

Hastelloy C276 SCH40 Seamless Nickel Pipe

UNS N10276 B619 Hastelloy C 1" SCH40 Hastelloy Alloy Pipe

Nickel alloy 2.4819 pipe Hastelloy C276 seamless pipe

hastelloy c276 seamless pipe and tube

astm b622 hastelloy c276 tube

HASTELLOY C276 PIPE 1 inch SCH 80S X 550 MM

Equivalent Grade Of ASME SB622 Hastelloy Square Pipe

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	–	ХН65МВУ

Weight Of ASTM B619 Hastelloy C276 Rectangular Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Premium Quality Hastelloy C276 Pipes in Various Shapes and Sizes: Rectangular Pipe, Thick Wall Pipe, Hollow Pipe, and Round Pipe Available at Hot Sale Prices

UNS N10276 Decorative Pipe Pressure Chart

Pipe O.D. (in.)	Wall Thickness of Pipe/Tube (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Maximum Allowable Working Pressure (Psi) For Fractional Sizes

Pipe OD	Wall Thickness (Inches)
	.010	.012	.016	.020	.028	.035	.049	.065	.083	.095	.109	.120
1/16	6,422	7,872	10,768	13,484
1/8				6,422	9,325	11,823
3/16				4,081	5,935	7,630	11,005
1/4					4,305	5,518	8,053	10,946
3/8						3,530	5,107	7,029
1/2						2,595	3,721	5,078	6,699
5/8						2,051	2,927	3,970	5,200	6,056
3/4						1,696	2,412	3,259	4,249	4,933	5,755	6,422
7/8						1,446	2,051	2,764	3,592	4,161	4,842	5,391
1						5,040	7,140	9,595	12,445	14,390	16,715	18,585

Maximum Allowable Working Pressure (Bar) For Metric Sizes

Pipe OD	Wall Thickness (Inches)
	0.5	0.6	0.7	0.8	1.0	1.2	1.5	1.6	1.8	2.0	2.2	2.5	3.0
3	464	567	672	775	965
4	335	411	491	567	723	873
6			310	360	464	567	723	775
8			227	262	335	411	528	567
10				206	262	320	411	442
12				169	215	262	335	360	411	464
14					182	222	282	303	345	389	433	500	612
16					158	192	244	262	298	335	372	430	528
18					140	169	215	230	262	294	326	377	464
22					113	137	173	186	211	236	262	301	369
25					99	120	152	162	184	206	228	262	320

Polished Hastelloy C276 ASME SB619 Polish Pipe, ASTM B 619 Hastelloy C276 Tubes, Hastelloy Alloy C276 Welded Tubes, Alloy UNS N10276 EFW Pipe - Seamless Pipes Weight Chart

Price List of Hastelloy C276 Tube

Price of Hastelloy C276 pipe manufacturer in Indonesia	ASTM B622 Hastelloy C276 Pipe Price in Indonesia (INR)	UNS N10276 Pipe Price in UAE Dirham
Hastelloy C-276 Smls Pipe Nipple To Astm b 622 Gr. Uns No.N10276, Size:-1/2 Nb X Sch 40s X 4 Lengt	INR 12,832	662.12 UAE Dirham
Hastelloy C-276 Smls tubing To Astm B 622uns No. 10276, Size: 2nbx Sch 40s X 600 Mm Long	INR 112,219	5790.87 UAE Dirham
Hastelloy C276 Tube 3nb X Sch 80 Length3.55 Mtr Long	INR 247,999	12797.56 UAE Dirham
