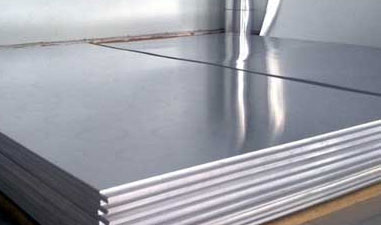

Aluminium Sheet

Aluminium Patterned Sheet Price In Indonesia - Chequered Plate Quality and Pricing

Aluminium Sheet consists of various aluminium alloys, with a focus on commercially pure grades known for their corrosion resistance. Piping Material is a leading producer of Aluminium Sheet in Indonesia, specializing in these high-quality materials.

Aluminium Chequered Plate

Aluminium Patterned Sheet

Check Sizes of EN573 Perforated Aluminium Mesh Sheet - View Now

The Aluminium Sheet Aluminium sheets naturally develop a protective oxide layer, making them highly resistant to oxidation. This layer serves as a shield against further corrosion. With options like chequered, mill finished, and coated sheets, aluminium is versatile in forms like foils, coils, and strips. The thickness of Aluminium Patterned Sheets can vary from 0.2mm to 50mm, with widths ranging from 500mm to 2000mm and lengths up to 10000mm.

The various grades of aluminium sheets serve diverse purposes. The perforated aluminium sheet further reduces weight, enhancing its already lightweight nature. Commercially pure grades boast a density of around 3 grams per cubic centimetre. Aluminium plates find utility in aerospace, chemical, food processing, and high-heat applications like heat exchangers and condensers. Different variations offer similar mechanical properties. Aluminium coils exhibit high thermal conductivity, maintaining mechanical integrity even at high temperatures. With the ability to function up to 427 degrees Celsius, they offer stability in various applications. For more information on aluminium strip, foil, coil, sheet, and plate products, along with pricing details, please reach out to us.

Specification List of Aluminium Chequered Plate

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

European Standard of Aluminium Patterned Sheet

European Standard	USA (AA)	BS (OLD)	GERMANY (DIN)	IS	ISO	Canadian
EN AW-1050 A	1050	1E	Al99.5	19500, 19501	Al99.5	1 S
EN AW-1070 A	1070	–	Al-99.7	19700	Al-99.7
EN AW-1100	1100	IC	Al-99.0	19000	Al-99.0	2 S
EN AW-2011	2011	FC1	AlCuBiPb	–	AlCu6BiPb	28S
EN AW-2014	2014	HE15	AlCuSiMn	24345	AlCu4SiMg	B26S
EN AW-2024	2024	–	AlCuMg2		AlCu4Mg1	24 S
EN AW-3003	3003	N3	AlMnCu	31000	AlMn1Cu	3 S
EN AW-3103	3103		–	–	AlMn1
EN AW-6101A	6101	E91E	E AlMgSi 0.5	63401	E AlMgSi(A)	D50S
EN AW-6005	6005		AlMgSi0.7	62400	AlSiMg	C51S
EN AW-6351	6351	HE30	AlMgSi1	64430	AlSiMg0.5Mn	B51S
EN AW-6060	6060		AlMgSi 0.5	–	AlMgSi
EN AW-6061	6061	HE20	AlMgSiCu	65032	AlMg1SiCu	65S
EN AW-6063	6063	HE9	AlMgSi0.5	63400	AlMg0.7Si	50S
EN AW-6082	6351	HE30	AlMgSi1	64430	AlSi1MgMn	B51S

Range of Perforated Aluminium Sheet

Aluminium Sheets Product Range
Alloy Number	Thickness in Milimeter	Width in Milimeter	Length in Milimeter	Temper Chart
A3003, A3105, A3004	0.2-5.0	20-2200	20-8000	O, H14, H18, H24
A1050, A1060, A1070, A1100	0.2-5.0	20-2200	20-8000	O, H12, H22, H14, H16, H18, H24, H26
A6061, A6063, A6082	0.2-5.0	20-2200	20-8000	T4, T6, T651
A5005, A5052, A5083, A5086, A5754	0.2-5.0	20-2200	20-8000	O, H18, H24, H32, H34, H111, H112
A8011	0.2-5.0	20-2200	20-8000	O, H12, H22, H14, H16, H18, H24, H26

EN573 Aluminium Mesh Sheet Chemical Composition

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

AMS 4003 Aluminium Strip Mechanical Strength Table

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Most Selling Types Of Aluminium Foil

1mm 2mm 2.5mm 3mm aluminium sheet 4x8 standard size

H14/H22 aluminum sheet/plate in size 4.5mm

H14/H22 aluminum sheet in size 4.5mm

aluminium roofing sheet/ shim sheet

150x200mmx0.45mm Sublimation Coated Aluminium Sheet

Silver Aluminum Sheet

0.1- 40mm thick Aluminium Sheet

Physical Material Grade Of 10mm Aluminium Plate

Physical Property	Value
Density	2,70 g/cm³
Melting Point	582 °C
Thermal Expansion	23.4 x 10^-6 /K
Modulus of Elasticity	69 GPa
Thermal Conductivity	170 W/m.K
Electrical Resistivity	%43 IACS

Explore the Weight Chart of EN573 Aluminium Hot Rolled Plates at the Premier AMS 4003 Aluminium Strip Stockist and Aluminium Foil Manufacturers in Jawa Timur

Weight Of ASTM-B-209M Aluminium Roofing Sheet

Thickness	Size	Weight
Mm	M	Kg/
0.30	2.5 X 1.25	2.63
0.40	2.5 X 1.25	3.50
0.50	2.5 X 1.25	4.38
0.60	2.5 X 1.25	5.25
0.80	2.5 X 1.25	7.00
1.00	2.5 X 1.25	8.75
1.20	2.5 X 1.25	10.50
1.27	2.5 X 1.25	11.11
1.60	2.5 X 1.25	14.00
2.00	2.5 X 1.25	17.50
2.50	2.5 X 1.25	21.88
3.00	2.5 X 1.25	26.25
4.00	2.5 X 1.25	35.00
5.00	2.5 X 1.25	43.75
6.00	2.5 X 1.25	52.50
6.35	2.5 X 1.25	55.56

Density Based On 2.80 G/Cm³ (0.101 Lbs/In³)

Imperial

Thickness	Size	Weight
In	Ft	Lbs/
0.012	12 X 4	8.38
0.016	12 X 4	11.19
0.018	12 X 4	12.57
0.020	12 X 4	13.96
0.025	12 X 4	17.45
0.032	12 X 4	22.34
0.040	12 X 4	27.92
0.050	12 X 4	34.91
0.063	12 X 4	43.98
0.070	12 X 4	48.87
0.080	12 X 4	55.85
0.090	12 X 4	62.83
0.100	12 X 4	69.81
0.125	12 X 4	87.26
0.188	12 X 4	131.25
0.250	12 X 4	174.53

Check the wide stock of 10mm Aluminium Plate cut to size, ASTM-B-209M Aluminium Roofing Sheet, and Aluminium Condenser Coil thickness available

Size Schedule Chart of Aluminium Condenser Coil

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125"	.875"	3.18	22.2
.134"	1"	3.40	25.4
.156"	1.125"	3.96	28.6
.187"	1.250"	4.75	31.8
.250"	1.500"	6.35	38.1
.312"	1.750"	7.92	44.5
.375"	2"	9.53	50.8
.500"	2.500"	12.7	63.5
.625"	3"	15.9	76.2
.750"		19.1

ASTM B221 Aluminium Trim Coil Thickness

0.6 milimeter	0.8 milimeter
1.0 milimeter	1.2 milimeter
1.5 milimeter	1.6 milimeter
1.8 milimeter	2.0 milimeter
3.0 milimeter	4.0 milimeter
5.0 milimeter	6.0 milimeter
8.0 milimeter	10.0 milimeter
12.0 milimeter	15.0 milimeter
20.0 milimeter	25.4 milimeter

Gauge Chart of Aluminium Plate

Gauge Number	Aluminum Sheet in Inches	Aluminum Shim Sheet MM
7	.1443	3.665
8	.1285	3.264
9	.1144	2.906
10	.1019	2.588
11	.09074	2.305
12	.08081	2.053
14	.06408	1.628
16	.05082	1.291
18	.04030	1.024
20	.03196	.812
22	.02535	.644
24	.02010	.511
26	.01594	.405
28	.01264	.321
30	.01003	.255

Check the price list for Aluminium Plate from the largest supplier of small-quantity ASTM B221 Aluminium Trim Coil and Aluminum Sheet Suppliers in Indonesia

Price List of Aluminum Roofing Sheet

Aluminium Sheet Price List	EN573 Aluminium Mesh Sheet Per Unit (INR)
850 Aluminium Roofing Sheet	$2,299.00/ Ton
Aluminum Roofing Sheet price	$2,650.00-$4,500.00/ Ton
Aluminium Foil Prices	$2.38-$2.66/ Kilogram
AMS 4003 Aluminium Sheet/ Strip price list	$2,100.00-$2,500.00/ Ton
