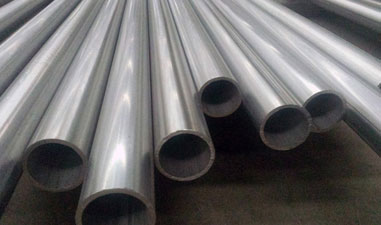

Inconel 625 Pipe

Alloy 625 Seamless Tubing: Explore our Price List for UNS N06625 Tube

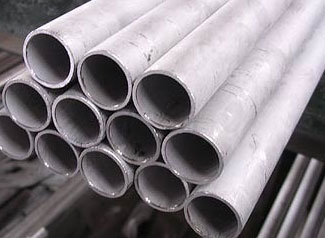

Inconel 625 Pipe is a premium nickel-chromium super alloy pipe comprising 58% nickel, 20% chromium, and various other elements. Piping Material is a leading provider of these exceptionally corrosion-resistant pipes, boasting a minimum yield strength of 517MPa and a minimum tensile strength of 930MPa.

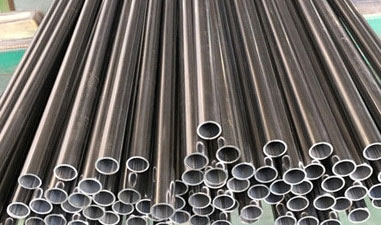

Alloy 625 Seamless Tubing

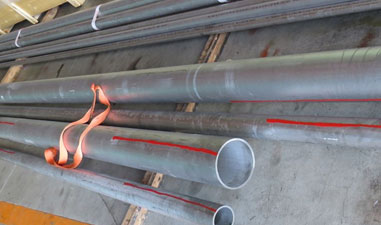

UNS N06625 Tube

Check the price of Inconel Din 2.4856 Welded Pipe in Indonesia, High-quality polished Inconel 625 Seamless Pipe, and ASTM B444 Inconel 625 ERW Pipe ASME B36.19

The versatile Inconel 625 Pipe is essential for demanding applications in elevated temperatures. Commonly utilized in heat exchangers, condensers, and boiler components, this tube adheres to strict ASTM B167, ASTM B829, and ASTM B517 specifications. Its dimensions conform to rigorous ASTM, ASME, and API standards for reliable performance.

The Inconel 625 Pipe ranges from 4mm to 219mm in size, with welded, fabricated, and LSAW options. Wall thickness varies from 0.5mm to 20mm, suitable for larger diameters (5-160 schedules). Available in round and hydraulic forms, with various lengths (single random, double random, cut to length). The ASTM B444 UNS N06625 ERW Pipe is electric resistance welded, with options for treaded, beveled, or plain ends. For more details on products like the Inconel Din 2.4856 Welded Pipe, please contact us.

Alloy 625 Seamless Tubing Specification Schedule

Specifications	ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517
Dimensions	ASTM, ASME and API
Seamless 625 Pipe	4 to 219mm W. T.: 0.5 to 20mm
Welded 625 Pipe	5.0 mm – 1219.2 mm
EFW 625 Pipe	5.0 mm – 1219.2 mm
Size	15″NB TO 150″NB IN
Specialized in	Large Diameter Size
Schedule	SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form	Round, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

UNS N06625 Tube Schedules

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Inconel 625 Round Pipe Sizes: Check ASME SB444 Alloy 625 Hexagonal Pipe and Inconel UNS N06625 Hollow Pipe Dimension

Inconel 625 Seamless Pipe Sizes And Schedules

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

Inconel 625 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

ASTM B444 Inconel 625 ERW Tube Sizes In Mm

Wall Thickness	Inconel Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Inconel Din 2.4856 Welded Pipe Composition Standard

Grade		C	Mn	Si	Fe	S	Cr2	Al-Ti	Ni
625	min.	–	–	–	–	–	20.0	–	58.0
625	max.	0.10	0.50	0.50	5.0	0.015	23.0	0.40	–

ASME SB444 Alloy 625 Hexagonal Pipe Characteristics

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
625	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5	–	–

Common Types Of Inconel Gost ХН75МБТЮ Pipes

ASTM B167 B829 inconel 625 601stainless steel seamless pipe

1/2-24 inch AMS 5580 Inconel 625 seamless welded pipe tube

1/2"-24" AMS 5580 Inconel 625 seamless welded pipe tube

inconel 625 pipe / inconel 625 tube

Inconel 625 Seamless Tubes

UNS N06625 2.4856 Inconel 625 Nickel Alloy Pipe

Inconel 625 UNS N06625 NS312 alloy seamless pipe tube

alloy inconel 625 steel seamless pipe tube

exhaust inconel 625 pipe/tube

Inconel 625 Pipes, Size/Diameter: 3 inch

Inconel 625,NO6625 small diameter alloy tubing 12.7x1.27mm

Inconel 625 UNS N06625 Ni -Cr alloy pipe tube

3/4 1/2" sch 40 12 inch inconel 625 stainless steel pipe

Equivalent Grades of ASTM B444 UNS N06625 Clad Pipe

STANDARD	WNR Material Number	JIS	EN	BS	UNS	AFNOR	GOST
625	2.4856	NCF 625	NiCr22Mo9Nb	NA 21	N06625	NC22DNB4M	ХН75МБТЮ

Suppliers of Light Gauge Alloy 625 Tubes and Inconel Welded Tubes. Alloy 625 EFW Pipes, Polished, with Pressure Rating for 2 inch Inconel Alloy 625 Square Pipe.

Inconel UNS N06625 Hollow Pipe Pressure

Size mm	Grade	Maximum internal pressure, ksi
100°F	200°F	300°F	400°F	500°F	625°F	700°F
1.59 x 0.36	N06625	19.21	19.21	19.02	18.83	18.54	18.15	17.77
3 x 0.5	N06625	940	940	930	921	907	888	869
6 x1	N06625	940	940	930	921	907	888	869
8x1	N06625	681	681	675	668	658	644	630
8x2	N06625	1476	1476	1462	1447	1425	1395	1366
10x1	N06625	534	534	529	524	516	505	494
12x1	N06625	440	440	435	431	424	415	407
16x1	N06625	324	324	321	318	313	307	300

Inconel 625 Seamless Pipes Weight Chart for SCH 10, 40, 80 Thick Wall and Small Diameter Rectangular Polish Pipe

Inconel 625 Round Pipe Weight Chart

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Price list of Alloy 625 Tubes

Price of inconel 625 pipe manufacturer in Indonesia	ASTM B444 inconel 625 Pipe Price in Indonesia (INR)	UNS N06625 Pipe Price in UAE Dirham
Inconel 625 Seamless Pipe: Size: 1/4 Xsch80 (3 -4mm Thk) (2.2 Mtr Long)	INR 58,562	3024.19 UAE Dirham
Inconel 625 Welded Z=1, O Pipe To Astm B705 Gr. Uns No. 6625 Gr 2, In 1.38 + 1.84 Mtrs Length.	INR 323,382	16699.72UAE Dirham
Inconel 625 Smls Pipe To Astm B 444 Gr.Uns No. 6625 Gr 2, In 1.7 Mtrs Length Size : 73.02 Mm Od X 3.2 Mm Thk	INR 65,097	3361.66 UAE Dirham
Inconel 625 Pipe 1/2 Od X 0.049 Thk	INR 3,935	203.21 UAE Dirham
