Stainless Steel Angle manufacturer in Indonesia in Indonesia

316 Stainless Steel Equal Angle Weight Chart, SS 304 Equal Angle

Piping Material is a top Stainless Steel Angle manufacturer in Indonesia, offering a variety of angles in different stainless steel grades. Our angles are primarily L-shaped and typically have a 90-degree angle, but we also produce angles in various specific angles and L-forms to meet diverse needs.

Stainless Steel Angle

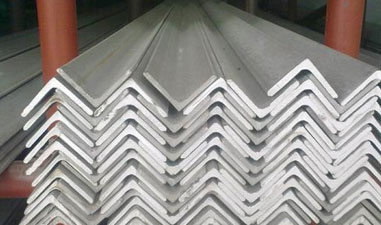

Stainless 304 Equal Angle

316 Stainless Steel Equal Angle

Explore Price List for Unequal Angle Sizes in Stainless Steel 304 and 316 for Jawa Timur

The SS 304 Equal Angle Weight Chart provides weights for various material grade angles. Equal angles have equal sides of the L shape, while unequal angles have one wider side. The 316 Stainless Steel Equal Angle is commonly used after the 304 angles. However, 304 angles are unsuitable for brackish and sea water due to chloride ion corrosion.

Table of Contents

• Specification Chart of SS 304 Equal Angle
• Dimensions of 316 Stainless Steel Equal Angle
• Chemical Element of SS 304 Unequal Angle
• Mechanical Properties of 316 Stainless Steel Unequal Angle
• Types Of Stainless Steel Unequal Angle
• Austenitic SS Equal Angle Equivalent Material
• Stainless Steel 90 Degree Angle Bracket Tolerance Chart
• Size Chart of Martensitic Stainless Steel L Angle
• HSN Code of SS Angle
• Polished Stainless Steel Angle Price

The 316 Stainless Steel Unequal Angle, with 4% molybdenum, resists chloride ion stress corrosion. Varying Stainless Steel 304 Unequal Angle Sizes suit different applications. Angles connect components securely, with some featuring bolt holes for fastening. The 316 angle withstands harsher conditions than the 304 variant. Unequal angles, widely used in brackets, trim, and reinforcements, offer versatile applications. For details on angles and pricing, reach out to us.

Specification Chart of SS 304 Equal Angle

Standard	ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size	3/4″ THRU 8″
Thickness	1/8″ thru 5/8″
Type	Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled
Grades	304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L

View Austenitic Stainless Steel Equal Angle Dimension from PED Approved Stainless Steel Unequal Angle Stockist

Dimensions of 316 Stainless Steel Equal Angle

Sizes (all Dimensions in milimeter)	Approx Weight SS Angle Bar (kilogram/meter)	SS 304 Angle Bar Sizes (all Dimensions in milimeter)	Approx Weight SS 316 Angle Bar (kilogram/meter)
25 x 25 x 3	1.13	63 x 63 x 8	7.50
25 x 25 x 4	1.46	65 x 65 x 4	4.00
25 x 25 x 5	1.78	65 x 65x 5	5.02
30 x 30 x 3	1.37	65 x 65 x 8	7.75
30 x 30 x 4	1.78	70 x 70 x 5	5.35
30 x 30 x 5	2.20	70 x 70 x 6	6.40
40 x 40 x 3	1.83	75 x 75 x 6	6.85
40 x 40 x 4	2.41	75 x 75 x 8	9.05
40 x 40 x 5	2.97	80 x 80 x 6	7.35
50 x 50 x 4	3.05	80 x 80 x 8	9.65
50 x 50 x 5	3.78	80 x 80 x 10	11.98
63 x 63 x 4	3.90	100 x 100 x 8	12.20
63 x 63 x 5	3.90	100 x 100 x 12	18.00

Chemical Element of SS 304 Unequal Angle

Grade	C	Mn	Si	P	S	Cr	Mo	Ni
Stainless 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	–	8 – 11
Stainless 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.03 max	18 – 20	-	8 – 13
Stainless 316	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	11.00 - 14.00
Stainless 316L	0.035 max	2.0 max	1.0 max	0.045 max	1.0 max	16.00 - 18.00	16.00 - 18.00	10.00 - 14.00

Mechanical Properties of 316 Stainless Steel Unequal Angle

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Types Of Stainless Steel Unequal Angle

SS Angles, Size: 20 to 250 mm

25 mm to 50 mm L Shape SS Angles

202 SS Angles Size: 3-10 M

SS 304 Structural Angles 2mm up to 20mm

L Shape 316 SS Angles, Size: 25x3 To 100x8 Mm

Ss Angles, Size: 20 X 20 X 3 Mm

316 316L HL ss angles

ss angles 304 41x41mm

50x50x5mm SS304 angles

50x50x5mm SS304 angles rod

50x50x5 SS Angles

angles bar sizes and thickness 1.5 x 1.5 steel

Austenitic SS Equal Angle Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	-	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	-	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13		Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

We are high quality SS 304 Angle Bar, Stainless Steel Angle Manufacturer In Indonesia

Stainless Steel 90 Degree Angle Bracket Tolerance Chart

Leg Length = +/- 1/8"

Right Angle = +/- 2 Degrees

Straightness or Camber = 1/8" in 5 feet

Size Chart of Martensitic Stainless Steel L Angle

Size in Inches	Est. Weight per Ft. Lbs.	Est. Weight per 20' Bar
3/4 x 3/4 x 1/8	0.59	11.80
1 x 1 x 1/8	0.80	16.00
1 x 1 x 3/16	1.16	23.20
1 x 1 x 1/4	1.49	29.80
1-1/4 x 1-1/4 x 1/8	1.01	20.20
1-1/4 x 1-1/4 x 3/16	1.48	29.60
1-1/4 x 1-1/4 x 1/4	1.92	38.40
1-1/2 x 1-1/2 x 1/8	1.23	24.60
1-1/2 x 1-1/2 x 3/16	1.80	36.00
1-1/2 x 1-1/2 x 1/4	2.34	46.80
2 x 2 x 1/8	1.65	33.00
2 x 2 x 3/16	2.44	48.80
2 x 2 x 1/4	3.19	63.80
2 x 2 x 3/8	4.70	94.00
2-1/2 x 2-1/2 x 3/16	3.07	61.40
2-1/2 x 2-1/2 x 1/4	4.10	82.00
3 x 3 x 1/4	4.90	98.00
4 x 4 x 1/4	6.60	132.00
4 x 4 x 3/8	9.80	196.00

Check Hsn Code for Martensitic SS L Angle, Indonesia's largest supplier of small-quantity Stainless Steel 90 Degree Angles Bracket

HSN Code of SS Angle

Hs Code	Description
7222	Other Bars And Rods Of SS; Angles, Shapes And Sections Of SS
72224020	Of Below 80 Mm
72222012	Nickel Chromium Austenitic Type
72223099	Other
7301	Sheet Piling Of Iron , Whether Or Not Drilled, Punched Or Made From Assembled Elements; Welded Angles, Shapes A
73012090	Other
7326	Other Articles Of Iron Or Steels
73269060	Manufactures Of SS

Check India's Stainless Steel Angle Material Specification, Wide Stock of Polished and Brushed Stainless Steel Angle Trim Available

Polished Stainless Steel Angles Price

Stainless Steel Angles Price List	SS 304 Unequal Angles Per Unit (INR)
50x50x5mm SS304 angles Price List	$1,000.00-$3,000.00/ Ton
201 304 316 SS angle bar	$500.00-$700.00/ Ton
SS angles bar price	$1,000.00-$2,500.00/ Ton
SS Angles Bar 6m Price	$1,000.00-$3,000.00/ Ton
