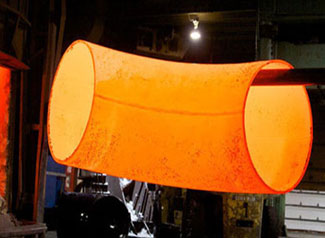

904L Stainless Steel Buttweld Pipe Fittings in Indonesia
Weight Chart for Stainless Steel 904L Tee and ASME B16.9 Alloy 904L Elbow
904L Stainless Steel Buttweld Pipe Fittings adhere to ASTM B366 standards, including ASME B16.9 and B16.28. These specifications cover pipe sizes from 1/8 inches to 48 inches for high heat and corrosion resistance. The fittings can be seamless or x-ray welded.
904L Stainless Steel Buttweld Pipe Fittings
Alloy 904L Elbow
Stainless Steel 904L Tee
Manufacturer of DIN2609 Stainless Steel 904L Pipe Fittings, Price Per Kg in Indonesia for 24 inch SS 904L Long Stub End, Short Radius Elbow in 904L Stainless Steel
904L Stainless Steel Buttweld Pipe Fittings are supplied by Piping Material in various sizes and specifications. The wall thickness and pressure capacity vary based on the nominal bore size. These fittings, like the Alloy 904L Elbow, serve different purposes such as changing the pipe line direction with minimal pressure exerted on the walls. Wall thickness and pressure ratings are determined by schedules ranging from 5s to 160 and XXS.
Table of Contents
- Specification Chart of Alloy 904L Elbow
- Chemical Element of Stainless Steel 904L Tee
- Mechanical Properties of Stainless Steel 904L Pipe Fittings
- Types Of SS 904L Long Stub End
- 904L Stainless Steel Short Radius Elbow Equivalent Material
- Physical Chart of 904L SS 3D Bend
- Stainless Steel 904L Welded Buttweld Fittings Chart & Weight
- Dimensions of SS 904L Grade Butt weld Pipe Fittings
- AISI 904L Stainless Steel 5d Bend Price
The Stainless Steel 904L Buttweld Pipe Fittings are versatile connectors for pipes, offering strength and corrosion resistance. With a composition of 23% nickel, 19% chromium, and other elements, they provide 220MPa minimum yield strength and 490MPa minimum tensile strength. Available in various sizes and types, including UNS N08904 Long Stub End. Contact us for more information.
Specification Chart of Alloy 904L Elbow
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
Check SS 904L Grade Butt weld Pipe Fittings Weight Chart, 2" 3/4" sch 40 AISI 904L Stainless Steel 5d Bend Dimension, 904L SS 3D Bend
Varities Of 904L Stainless Steel Pipe Tee manufactured as per Hot or Cold forming process
| ASTM B366 Grade WP904L SS Lateral Tee | ASTM B366 Gr WP904L Equal Tee |
|---|---|
| SS WP904L Lateral Tee | SA 403 WP904L Equal Tee |
| Stainless Steel ASTM WP904L Lateral Tee | ASTM B366 Grade WP904L Equal Tee |
| ASTM B366 WP904L Stainless Steel Equal Tee | ASTM B366 Gr WP904L Lateral Tee |
| Stainless Steel 904L Equal Tee | ASTM B366 904L Lateral Tee |
| ASTM B366 WP 904L SS Equal Tee | ASTM B366 WP 904L Lateral Tee |
Types Of ASTM B366 WP904L Elbow Manufactured As Per Hot Forming Or Extrusion Method & Cold Forming
| ASTM B366 WP904L Elbow | |
|---|---|
| SA 403 WP904L 45 Degree Elbow | Stainless Steel 904L 90 Degree Elbow |
| ASTM B366 Grade WP904L 45 Degree Elbow | ASTM B366 WP 904L 90 Degree Elbow |
| ASTM B366 Grade WP904L 45 Degree Elbow | ASTM B366 WP 904L 45 Degree Elbow |
ANSI B16.9 B366 Grade Wp904L Pipe Cross Types manufactured as per Hot or Cold forming process
| ASTM B366 WP 904L B16.9 Cross | SS UNS N08904 Reducing Cross |
| ASTM B366 Grade WP904L 4-way cross pipe fittings | ANSI B16.9 Stainless Steel ASTM WP904L butt weld pipe fittings cross |
| ASTM B366 Gr WP904L equal welded cross | Stainless Steel ASTM B366 WP904L buttweld equal cross |
| Werkstoff No 1.4539 SS equal straight cross | SS WP904L 1-60inch sch40 ASME B16.9 4 way pipe fittings |
| ASTM B366 WP904L Stainless Steel equal cross | Stainless Steel 904L ASME B16.9 Big cross |
| SA 403 WP904L butt welded equal cross b16.9 | SS WP904L Pipe cross |
Varities Of SS 904L End Cap manufactured as per Hot or Cold forming process
| SS UNS N08904 End Cap | ASTM B366 WP904L Stainless Steel 2" sch40s pipe cap |
|---|---|
| SA 403 904L Pipe Caps For Pipe End | Stainless Steel ASTM B366 904LH Pipe Cap |
| Grade WP904L Stainless Steel 24" pipe end cap | SS Grade WP904L B16.9 Buttweld Cap |
| SS 904L End Cap | DN100 Stainless Steel 904L S40 Weld On Pipe Cap |
| SA 403 Gr 904L seamless butt weld pipe cap | SS WP904L Pipe Cap |
| 904L SS pipe end caps | ASME B16.9 904L Stainless Steel End Cap |
| Werkstoff No 1.4539 SS Buttwelded Pipe Cap | ANSI B16.9 Stainless Steel 904L SCH40 Cap Butt Weld Cap |
| SA 403 WP 904L End Cap | SA 403 WP 904L Buttweld end seamless pipe cap |
| B366 904L threaded pipe end cap | ASME SB366 SS 904L 219 GOST 17379 WELD STEEL PIPE CAPS |
Types Of Wp904L Astm B366 Stub End manufactured as per Hot or Cold forming process
| ASTM B366 WP904L Stub End | |
|---|---|
| SS UNS N08904 Long Stub End | B366 WP904L Stainless Steel Short Stub End |
| Grade WP904L Stainless Steel Long Stub End | SS Grade WP904L Short Stub End |
| SA 403 Gr 904L Short Stub End | SS WP904L Long Stub End |
| 904L SS Short Stub End | 904L Stainless Steel Long Stub End |
| SA 403 904L Short Stub End | SS Grade WP904L Long Stub End |
Varities Of Asme Sa 403 Wp904L Pipe Bend manufactured as per Hot or Cold forming process
| SA 403 WP 904L Pipe Bend | ASTM B366 WP 904L SS 180 degree U bend |
| SS UNS N08904 Bend | ASTM B366 WP 904LH Stainless Steel Pipe Bend |
| SA 403 Gr 904L seamless 180 degree pipe bends | SS WP904L Pipe Bend |
| SS 904L 45 90 degrees pipe Bend | Stainless Steel 904L pipe bends 3d 5d |
| ASTM B366 Grade WP904L pipe fitting bends | ASTM B366 Grade WP904L din26616 standard bend |
| SA 403 904L Equal Cross | ASTM B366 WP904LH Stainless Steel Equal Cross |
| Grade WP904L Stainless Steel Pipe Bend | SS Grade WP904L Pipe Bend |
| 5d 3d ASTM B366 904L pipe bends | Stainless Steel 904L 6mm pipe fitting bends |
| 904L SS Equal Cross | 904L Stainless Steel 90 Degree Pipe Bend |
| B366 904L 45 degree pipe bends | ASME SB366 SS 904L 12 inch Pipe Bend |
| ASTM B366 WP 904L seamless steel pipe bend | Stainless Steel ASTM B366 WP904L 90 Degree 5D Bend |
| Werkstoff No 1.4539 SS DN200 8inch sch40s 90 degree bend | ANSI B16.9 Stainless Steel 904L Equal Cross |
| ASTM B366 WP904L 20mm 90 degree bend | ASTM B366 WP 904L SS Tube bend |
| ASTM B366 Gr WP904L 90 Degree Bends | ASTM B366 Gr WP904L 3d Pipe Bend |
| ASME B16.9 SA 403 WP904L 5D Pipe Bend | SS WP904L Bend |
Types Of B366 WP904L Material Reducer Manufactured As Per Hot Forming Or Extrusion Method & Cold Forming
| SA 403 904L Concentric Reducer | ASTM B366 904L Eccentric Reducer |
|---|---|
| Stainless Steel 904L Concentric Reducer | ASTM B366 Grade WP904L Eccentric Reducer |
| ASTM B366 WP 904L Eccentric Reducer | SS WP904L Concentric Reducer |
| Stainless Steel B366 WP904L Concentric Reducer | ASTM B366 Gr WP904L Eccentric Reducer |
| ASTM B366 WP904L Eccentric Reducer | ASTM WP904L SS Concentric Reducer |
| SA 403 WP904L Eccentric Reducer | Stainless Steel 904L Concentric Reducer |
Chemical Element of Stainless Steel 904L Tee
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 | 23.00 | 0.10 |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |
Piping Material is a leading manufacturer of Grade 904L Stainless Steel Fittings including Stainless Steel 904L Pipe Fittings and Astm B649 904L Stainless Steel Forged Fittings with ASTM A403, UNS N08904 and WP904L.
Mechanical Properties of Stainless Steel 904L Pipe Fittings
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | – |
Types Of SS 904L Long Stub End
90 Degree steel elbow pipes 904l offshore pipe fittings
45 Degree steel elbow pipes 904l pipe fittings
Stainless steel a182 904L SCH80 4" Butt-welding fittings(BW) Eccentric Reducer
1/2"-4" 904L/USN8904 BW SW NPT nipples
6 inch stainless steel 904l sch40s pipe fitting eccentric reducer
SCH40 Long Radius Elbow 904L Stainless Steel Pipe Elbow
2 inch Sch40 904L stainless steel Butt Weld elbow
Stainless steel a182 904L SCH80 8" Butt-welding fittings(BW) concentric Reducer
ANSI B16.9 BW 2" SCH40 90D Elbow 904L Stainless Steel Elbow
904L Stainless Steel Short Radius Elbow Equivalent Material
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 904L | N08904 | 904S13 | X1NiCrMoCu25-20-5 | 1.4539 | – | – | SUS 904L |
We have large Inventory of Aisi 904L Ss Pipe Fittings, 904L Stainless Steel Buttweld Fittings Manufacturer In Indonesia. check 904l stainless steel fittings price in Indonesia
Physical Chart of 904L SS 3D Bend
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | At 20°C | At 500°C | |||||
| 904L | 7900 | 190 | 15 | - | - | 11.5 | - | 500 | 952 |
Stainless Steel 904L Welded Buttweld Fittings Chart & Weight
|
Product range and theoretical weights (kg) |
|||||||||
|
DN |
Schedule 10S |
Schedule 40S |
Schedule 80S |
||||||
|
900 Elbow |
450 Elbow |
Equal tee |
900 Elbow |
450 Elbow |
Equal tee |
900 Elbow |
450 Elbow |
Equal tee |
|
|
8 |
0.02 |
0.01 |
0.03 |
0.03 |
0.02 |
0.06 |
0.04 |
0.03 |
0.07 |
|
10 |
0.03 |
0.02 |
0.05 |
0.03 |
0.02 |
0.03 |
0.06 |
0.04 |
0.09 |
|
15 |
0.06 |
0.03 |
0.09 |
0.08 |
0.04 |
0.10 |
0.10 |
0.05 |
0.14 |
|
20 |
0.07 |
0.03 |
0.13 |
0.08 |
0.04 |
0.17 |
0.11 |
0.05 |
0.20 |
|
25 |
0.14 |
0.08 |
0.28 |
0.15 |
0.11 |
0.29 |
0.22 |
0.14 |
0.38 |
|
32 |
0.23 |
0.11 |
0.49 |
0.26 |
0.17 |
0.59 |
0.40 |
0.23 |
0.68 |
|
40 |
0.30 |
0.17 |
0.68 |
0.40 |
0.23 |
0.86 |
0.51 |
0.29 |
1.02 |
|
50 |
0.50 |
0.25 |
0.85 |
0.70 |
0.4 |
1.28 |
0.91 |
0.59 |
1.59 |
|
65 |
0.85 |
0.48 |
1.41 |
1.40 |
0.77 |
2.19 |
1.81 |
0.99 |
3.13 |
|
80 |
1.25 |
0.63 |
1.77 |
2.20 |
1.08 |
3.31 |
2.97 |
1.50 |
4.45 |
|
90 |
1.70 |
0.75 |
2.67 |
2.83 |
1.42 |
4.08 |
4.00 |
2.00 |
5.44 |
|
100 |
2.10 |
1.08 |
3.46 |
4.47 |
2.09 |
5.27 |
6.18 |
2.81 |
7.71 |
|
150 |
5.45 |
2.72 |
8.07 |
10.89 |
5.44 |
10.99 |
16.32 |
8.16 |
13.61 |
|
200 |
10.20 |
5.33 |
15.65 |
21.54 |
10.77 |
20.91 |
33.11 |
16.56 |
28.12 |
|
250 |
18.15 |
9.75 |
26.46 |
38.56 |
19.27 |
35.38 |
51.71 |
25.86 |
49.90 |
|
300 |
25.80 |
13.62 |
39.46 |
59.42 |
29.71 |
62.14 |
79.38 |
39.69 |
83.91 |
|
Product range and theoretical weights (kg) |
|||||||||
|
DN |
Schedule 10S |
Schedule 40S |
Schedule 80S |
||||||
|
Con reducer |
Ecc reducer |
Reducing tee |
Con reducer |
Ecc reducer |
Reducing tee |
Con reducer |
Ecc reducer |
Reducing tee |
|
|
40x.25 |
0.19 |
0.19 |
0.60 |
0.26 |
0.26 |
0.76 |
0.34 |
0.34 |
0.90 |
|
50x25 |
0.28 |
0.28 |
0.73 |
0.40 |
0.40 |
1.10 |
0.54 |
0.54 |
1.37 |
|
50x40 |
0.31 |
0.31 |
0.76 |
0.45 |
0.45 |
1.15 |
0.59 |
0.59 |
1.43 |
|
80x.50 |
0.55 |
0.55 |
1.56 |
1.00 |
1.00 |
2.91 |
1.79 |
1.79 |
3.91 |
|
100x50 |
0.78 |
0.78 |
2.94 |
1.50 |
1.50 |
4.48 |
1.95 |
1.95 |
6.55 |
|
100x80 |
0.87 |
0.87 |
3.04 |
1.74 |
1.74 |
4.64 |
2.33 |
2.33 |
6.79 |
|
150x80 |
1.82 |
1.82 |
6.86 |
3.95 |
3.95 |
9.68 |
5.51 |
5.51 |
11.57 |
|
150x100 |
1.96 |
1.96 |
7.10 |
4.07 |
4.07 |
11.94 |
5.96 |
5.96 |
11.97 |
|
200x100 |
3.01 |
3.01 |
13.46 |
6.55 |
6.55 |
17.98 |
9.23 |
9.23 |
24.18 |
|
200x150 |
3.19 |
3.19 |
14.08 |
6.74 |
6.74 |
18.82 |
10.12 |
10.12 |
25.31 |
SUS 904L Stainless Steel 180 Deg bend, Bevel Ends Food Grade 904L Stainless Steel 90 degree Elbow, Grade 904L Stainless Steel Cross suppliers in Indonesia.
Dimensions of SS 904L Grade Butt weld Pipe Fittings
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) |
Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
MSS SP 75 Stainless Steel Grade 904L Reducer, 6 Inch 8 Inch SS UNS N08904 Equal Tee, Stainless Steel UNS N08904 Pipe Bend, ASTM A403 f904L stainless steel Pipe End Cap at factory Price.
AISI 904L Stainless Steel 5d Bend Price
| ASTM B366 Grade WP904L Pipe Fittings Price Per Piece in Indonesia | ASTM B366 Gr WP904L Fittings Price in INR | ASTM B366 Grade WP904L Fittings Price in UAE Dirham |
| ASTM B366 WP904L Buttweld Pipe Fittings Price in Indonesia | Rs. 646 | UAE Dirham 33.10 |
| ASTM B366 Grade WP904L Fittings Price in Indonesia | Rs. 510 | UAE Dirham 26.13 |
| ASTM B366 Gr WP904L Pipe Fittings Price List | Rs. 728 | UAE Dirham 37.31 |
| ASTM B366 WP904L Elbow Cost in Jawa Timur | Rs. 465 | UAE Dirham 23.83 |
| Price of ASTM B366 WP 904L SS Pipe Fittings in Jawa Timur | Rs. 820 | UAE Dirham 42.02 |
