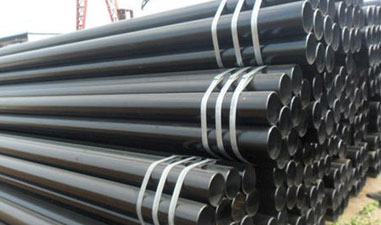

API 5L Seamless Line Pipe

View API 5L Seamless Pipe Specification from a Manufacturer of Schedule 40 Carbon Steel Smls Pipe

API 5L Seamless Line Pipe is crafted from a durable carbon steel blend, offering exceptional resistance to corrosion and wear. This material boasts a unique composition including carbon, manganese, chromium, nickel, and trace elements. Piping Material stands out as a top provider of Schedule 40 API 5L Carbon Steel Line Pipe, available in both welded and seamless options.

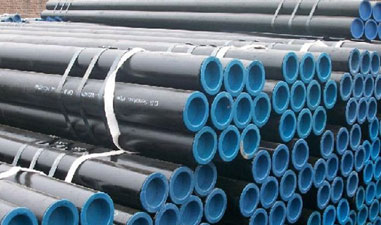

Schedule 40 API 5L Carbon Steel Smls Pipe

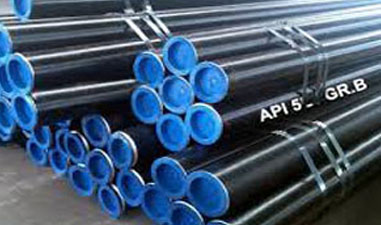

API 5L Seamless Pipe

Check Price of API 5L X52, X60, and X65 Seamless Pipes in India, Buy Now

The API 5L Seamless Line Pipe range in diameter from Â½ inches to 48 inches, offering versatility for various applications. The pipes cater to long pipe line needs for transporting oil, gas, water, and other liquids and gases. Available in single random, double random, and cut to length sizes, these pipes vary in wall thickness based on pressure ratings and schedules. The schedule options range from 5s to XXS, with corresponding pressure ratings.

API 5L Seamless Line Pipe Overview The API 5L X65 PSL2 Seamless Pipe is part of the seamless carbon steel pipes range, with different classes including product level specifications 1 and 2. PSL 1 pipes are common, while PSL 2 pipes offer enhanced mechanical properties. These pipes are wear-resistant, making them suitable for high-friction environments. The API 5L X42 Seamless Pipe is versatile, suitable for use in open, underwater, and underground applications due to its durability. The API 5L X52 Seamless Pipe is known for its high toughness, crucial for withstanding impact stress in line pipes. For more information on products like the CS API 5L X70 PSL1 Seamless Pipe and pricing, please get in touch with us.

Schedule 40 API 5L Carbon Steel Smls Pipe Specification Table

API 5L Pipe (Seamless Steel Pipe)
Type	Seamless steel pipe
Material	GR.B, X42, X52, X60
Application	Line pipe
Special pipe	Regular and special thick-walled steel pipe, maximum thickness of up to 60MM
Process	Hot rolled and hot expanded
Specification in Milimeter	114-914MM*4-60MM
Diameter in Milimeter	114MM-914MM
Thickness in Milimeter	4MM-60MM
Length	As your requirements

Discover the sizes and thickness of CS API 5L X 70 Seamless Pipes, explore the range of API 5L Grade B Seamless Pipe, and connect with the most established API 5L Gr.b Seamless Pipe Suppliers in Indonesia

API 5L Seamless Pipe Thickness

CS 5L wall thickness t mm (in)	Pipes Tolerances a mm (in) mm (in)
SMLS pipe b
≤ 4,0 ( 0.157)	+ 0,6 (0.024) – 0,5 (0.020)
> 4,0 ( 0.157) to < 25,0 (0.984)	+ 0,150 – 0,125
≥ 25,0 (0.984)	+3,7 (0.146) or + 0,1 t whichever is the greater – 3,0 (0.120) or – 0,1 t whichever is the greater

Sizes of API 5L X60 Seamless Pipes

NPS	OD	Wall Thickness
NPS	OD	STD	Sch40	XS	Sch80	Sch160	XXS
1/8″	10.3	1.73	1.73	2.41	2.41
1/4″	13.7	2.24	2.24	3.02	3.02
3/8″	17.1	2.31	2.31	3.2	3.20
1/2″	21.3	2.77	2.77	3.73	3.73	4.78	7.47
3/4″	26.7	2.87	2.87	3.91	3.91	5.56	7.82
1″	33.4	3.38	3.38	4.55	4.55	6.35	9.09
1 1/4″	42.2	3.56	3.56	4.85	4.85	6.35	9.7
1 1/2″	48.3	3.68	3.68	5.08	5.08	7.14	10.16
2″	60.3	3.91	3.91	5.54	5.54	8.74	11.07
2 1/2″	73	5.16	5.16	7.01	7.01	9.53	14.02
3″	88.9	5.49	5.49	7.62	7.62	11.13	15.24
3 1/2″	101.6	5.74	5.74	8.08	8.08
4″	114.3	6.02	6.02	8.58	8.56	13.49	17.12
5″	141.3	6.55	6.55	9.53	9.53	15.88	19.05
6″	168.3	7.11	7.11	10.97	10.97	18.28	21.95
8″	219.1	8.18	8.18	12.7	12.70	23.01	22.23
10″	273	9.27	9.27	12.7	15.09	28.58	25.4
12″	323.8	9.53	10.31	12.7	17.48	33.32	25.4
14″	355.6	9.53	11.13	12.7	19.05	35.71
16″	406.4	9.53	12.7	12.7	21.44	40.4
20″	508	9.53	15.09	12.7	26.18	50.01
24″	610	9.53	17.48	12.7	30.96	59.54

API 5L X65 Seamless Pipes Chemical Material Composition

Grades	Chemical Composition
	C	Si	Mn	P	S	V	Nb	Ti
X42	0.16	0.45	1.65	0.020	0.010	0.07	0.05	0.04
X52	0.16	0.45	1.65	0.020	0.010	0.07	0.05	0.04
X60	0.16	0.45	1.65	0.020	0.010	0.08	0.05	0.04
X65	0.16	0.45	1.65	0.020	0.010	0.09	0.05	0.06
X70	0.17	0.45	1.75	0.020	0.010	0.10	0.05	0.06

Mechanical Behaviour of API 5L X52 Seamless Pipes

Grades	Yield Strength	Tensile Strength	Yield to Tensile	Elongation
	min. (KSI)	min. (KSI)	Ratio (max)	%
X42	42	60	0.93	23
X52	52	66	0.93	21
X60	60	75	0.93	23
X65	65	77	0.93	18
X70	70	82	0.93	17

What Are The Different Types Of API 5L X 70 Seamless Pipes?

Carbon steel x52 seamless line pipe

Api 5ct N80 Casing Pipe Api 5ct Seamless Pipe Api 5l X70 Psl2 Steel Line Pipe

Api 5ct N80 Casing Pipe, Seamless Pipe X70 Psl2 Steel Line Pipe

API 5L Gr.B SCH 40 seamless steel line pipe

CS Gr.B SCH 40 smls steel line pipe

api 5l x52 grade x52 seamless carbon steel pipe

CS 5l x52 grade x52 smls carbon steel pipe

API SPEC 5L PSL2 X60 X70 mild seamless steel pipe

CS SPEC 5L PSL2 X60 X70 mild seamless steel pipes

Carbon Steel 5L 12Inch SCH40 smls Line Pipes

Carbon steel seamless pipes API 5L, 160-315mm pipe line

Carbon steel seamless pipes 5L, 160-315mm pipes line

API 5l hot rolled seamless steel pipe 150mm diameter

Carbon Steel 5l hot rolled smls steel pipes 150mm diameter

34mm cs 5L smls steel pipes

API 5L Grade X65 PSL2 Seamless Carbon steel line pipe

5L Grade X65 PSL2 smls Carbon steel line pipes

5l x52 seamless line pipes

Carbon Steel 5L X52 LSAW steel line pipe

PSL1 VS PSL2

PSL GRADE	C, a	Mn a	P	S	Si	V	Nb	Ti	Other	CEIIW	CEpcm
1	0.24	1.40	0.025	0.015	0.45	0.10	0.05	0.04	b,c	.043	0.025
2	0.28	1.40	0.03	0.03	–	b	b	b	–	–	–

Discover Incredible Offers on CS API 5L X60 Psl2 Seamless Pipe, Explore API 5L X56 Seamless Pipes Dimensions, and Shop API 5L Smls Pipe

Dimensions Schedule of API 5L Gr.b Seamless Pipe

NPS (in)	Outside Diameter (in)	API 5l Seamless Pipe Schedule
		SCH 10	SCH 20	SCH 30	SCH STD	SCH 40	SCH 60	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
		Wall Thickness (in)
1/8	0.405				0.068	0.068		0.095	0.095
1/4	0.540				0.088	0.088		0.119	0.119
3/8	0.675				0.091	0.091		0.126	0.126
1/2	0.840				0.109	0.109		0.147	0.147				0.187	0.294
3/4	1.050				0.113	0.113		0.154	0.154				0.219	0.308
1	1.315				0.133	0.133		0.179	0.179				0.250	0.358
1 1/4	1.660				0.140	0.140		0.191	0.191				0.250	0.382
1 1/2	1.900				0.145	0.145		0.200	0.200				0.281	0.400
2	2.375				0.154	0.154		0.218	0.218				0.344	0.436
2 1/2	2.875				0.203	0.203		0.276	0.276				0.375	0.552
3	3.500				0.216	0.216		0.300	0.300				0.438	0.600
3 1/2	4.000				0.226	0.226		0.318	0.318
4	4.500				0.237	0.237		0.337	0.337		0.438		0.531	0.674
5	5.563				0.258	0.258		0.375	0.375		0.500		0.625	0.750
6	6.625				0.280	0.280		0.432	0.432		0.562		0.719	0.864
8	8.625		0.250	0.277	0.322	0.322	0.406	0.500	0.500	0.594	0.719	0.812	0.906	0.875
10	10.750		0.250	0.307	0.365	0.365	0.500	0.500	0.594	0.719	0.844	1.000	1.125	1.000
12	12.750		0.250	0.330	0.375	0.406	0.562	0.500	0.688	0.844	1.000	1.125	1.312	1.000
14	14.000	0.250	0.312	0.375	0.375	0.438	0.594	0.500	0.750	0.938	1.094	1.250	1.406
16	16.000	0.250	0.312	0.375	0.375	0.500	0.656	0.500	0.844	1.031	1.219	1.438	1.594
18	18.000	0.250	0.312	0.438	0.375	0.562	0.750	0.500	0.938	1.156	1.375	1.562	1.781
20	20.000	0.250	0.375	0.500	0.375	0.594	0.812	0.500	1.031	1.281	1.500	1.750	1.969
22	22.000	0.250	0.375	0.500	0.375		0.875	0.500	1.125	1.375	1.625	1.875	2.125
24	24.000	0.250	0.375	0.562	0.375	0.688	0.969	0.500	1.219	1.531	1.812	2.062	2.344
30	30.000	0.312	0.500	0.625	0.375			0.500
32	32.000	0.312	0.500	0.625	0.375	0.688
34	34.000	0.312	0.500	0.625	0.375	0.688
36	36.000	0.312	0.500	0.625	0.375	0.750
42	42.000		0.500	0.625	0.375	0.750

Manufacturer of API 5L Grade X52 Carbon Steel Seamless Pipes for Sale with Weight Specifications

API 5L Smls Pipe Weight In Kg

Test Requirement	PSL1	PSL2
Charpy test	None required	Required for all grades
Seamless NDT test	Only if purchaser specifies SR4	SR4 mandatory
Certification	Certificates when specified per SR15	Certificates (SR 15.1) mandatory
Traceability	Traceable only until all tests are passed, unless SR15 is specified	Traceable after completion of tests (SR 15.2) mandatory
Hydrostatic Test	Required	Required

Price of API 5L X56 Seamless Pipes

API 5L X60 Seamless Pipes Price List	Carbon Steel X 70 Seamless Pipes Per Unit (INR)
API 5L x60 Carbon steel line seamless pipes price	$550.00-$600.00/ Ton
CS 5L Gr B black seamless steel pipes	$599.00-$639.00/ Ton
api 5l x52 seamless line pipes price	$800.00-$895.00/ Ton
pipelines Carbon Steel 5ct l80 seamless steel pipes	$600.00-$1,000.00/ Metric Ton

Tolerance of API 5L Psl1 Seamless Pipe

Specified outside diameter D mm (in) of API 5L Pipes	Diameter tolerances Milimeter (in)				Out-of-roundness tolerances Milimeter (in)
	Pipe except at end a		Pipe end a,b,c		Pipe except at end a	Pipe end a,b,c
	SMLS pipe	Welded pipe	SMLS pipe	Welded pipe
< 60.3 (2.375)	– 0.8 (0.031 ) to + 0.4 (0.016)		– 0.4 (0.016) to + 1.6 (0.063)		d
≥ 60.3 (2.375) to ≤ 168.3 (6.625)	± 0.007 5 D				0.020 D	0.015 D
≥ 168.3 (6.625) to ≤ 610 (24.00)	± 0.007 5 D	± 0.007 5 D but maximum of + 3.2 (0.125)	± 0.005 D, but maximum of ± 1.6 (0.063)
> 610 (24.000) to ≤ 1 422 (56.00)	± 0.01 D	± 0.005 D, but maximum of + 4.0 (0.160)	± 2.0 (0.079)	± 1.6 (0.063)	0.015 D	0.01 D,
					but maximum of 15 (0.6),	but maximum of 13 (0.5),
					for d / ts ≤ 75	for d / ts ≤ 75
					by agreement	by agreement
					for d / ts > 75	for d / ts > 75
> 1 422 (56 000)	as agreed

Grade Chart of API 5L Carbon Steel Seamless Pipe

GR.B PSL 1
X 42 PSL 1
X 46 PSL 1
X 52 PSL 1
X 56 PSL 1
X 60 PSL 1
X 65 PSL 1
X 70 PSL 1

GR.B PSL 2
X42 PSL 2
X46 PSL 2
X52 PSL 2
X56 PSL 2
X60 PSL 2
X65 PSL 2
X70 PSL 2
