Monel 400 Pipe in Indonesia

  Home   ⁄   Monel 400 Pipe

Nickel Alloy 400 Tube Suppliers in Jawa Timur, Indonesia - UNS N04400 Tubing Expertise

Monel 400 Pipe comprises a nickel alloy with about 67% nickel content, offering exceptional corrosion resistance to seawater. Piping Material is a top supplier of Monel 400 Pipe, available in various dimensions and large quantities. The alloy includes carbon, aluminum, manganese, silicon, iron, sulfur, and 28% copper alongside nickel, ensuring superior mechanical and physical properties. With a minimum yield strength of 240MPa and minimum tensile strength of 550MPa, the Monel 400 Tube is a durable and reliable choice.

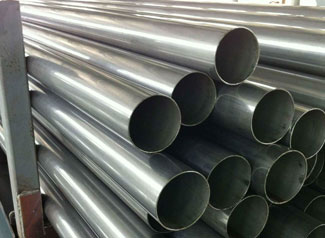

Monel 400 Pipe
Monel 400 Pipe

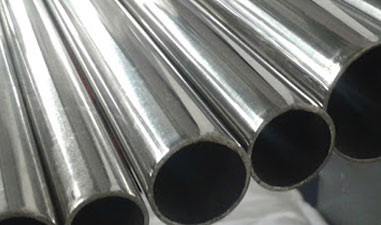

Nickel Alloy 400 Tube
Nickel Alloy 400 Tube

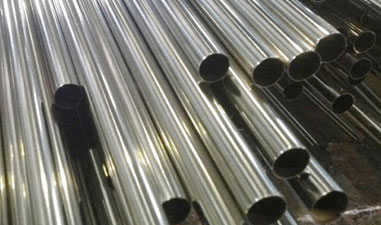

UNS N04400 Tubing
UNS N04400 Tubing

Check the hot sale price of Monel 400 Welded Pipe in Indonesia - Manufacturer of Alloy 400 ERW Pipe, Monel 400 Seamless Pipe available.

Monel 400 Pipe: The Monel 400 Pipe, known as UNS N04400 Tubing, boasts a high 1350 degrees Celsius melting point, making it ideal for high-temperature applications. This nickel copper alloy meets ASTM B165 and B725 specifications, offering seamless, welded, ERW, and fabricated options. The ASME SB165 Monel 400 Seamless Pipe adheres to ASTM, ASME, and API standards, available in sizes ranging from 15 inches to 150 inches in nominal bore size.

Table of Contents

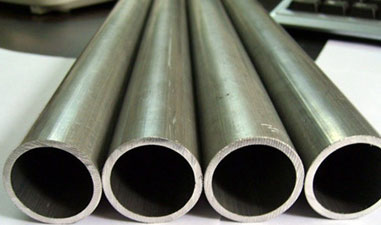

Monel 400 Pipe

```html Monel 400 Pipe The Monel 400 pipes have a diameter ranging from 6.35mm to 254mm and wall thickness from 0.6mm to 20mm. Available in round or hydraulic Alloy 400 ERW Pipe varieties, they feature plain, beveled, or threaded ends. These pipes find uses in sea water, desalination, chemical processing, heat exchangers, condensers, boilers, and more. The ASTM B165 Monel 400 Welded Pipe is also utilized in pharmaceuticals, petrochemicals, paper and pulp industries, specialty chemicals, and gas processing applications. For further details on Monel WERKSTOFF NR. 2.4360 EFW Pipes and pricing, please don't hesitate to get in touch with us. ```

Specification Format of Nickel Alloy 400 Tube

Specifications ASTM B 165 ASME SB 165 / ASTM B 725 ASME SB 725
Dimensions ASTM, ASME and API
Size 15″NB TO 150″NB IN
Specialized in Large Diameter Size
Range 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Type Seamless / ERW / Welded / Fabricated
Form Round, Hydraulic Etc
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

Check the dimensions of ASME SB165 Monel 400 Rectangular Pipe, Monel WERKSTOFF NR. 2.4360 EFW Pipes, 400 Alloy Square Pipe, and Alloy UNS N04400 Seamless Tubes

Schedule List of UNS N04400 Tubing

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Monel 400 Seamless Pipe Size Inch to MM

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

ASTM B165 monel 400 Pipe OD
mm 		Pipe WT
mm 		in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Alloy 400 ERW Tube Size Inch

Wall Thickness Monel Tube Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

Monel 400 Welded Pipe Chemical Formula

Grade C Mn Si S Cu Fe Ni Cr
Monel 400 0.30 max 2.00 max 0.50 max 0.24max 28.0-34.0 2.50 max 63.00 min –

Monel WERKSTOFF NR. 2.4360 EFW Pipes Mechanical Analysis

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %

400 Alloy Square Pipe Physical Analysis

Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3

Common Types Of ASME SB165 Monel 400 Rectangular Pipe

Nickel Alloy Monel 400 Material Steel Pipe

Nickel Alloy Monel 400 Material Steel Pipe

ASTM B127 Nickel Copper Alloy Monel 400 Seamless Pipe / tube

ASTM B127 Nickel Copper Alloy Monel 400 Seamless Pipe / tube

Monel 400 Seamless Pipe

Monel 400 Seamless Pipe

Monel 400 seamless pipe sch40

Monel 400 seamless pipe sch40

Monel 400 NUS N04400 2.4360 Seamless Pipe

Monel 400 NUS N04400 2.4360 Seamless Pipe

OD 5mm Ni-Cu alloy Monel 400 Tube pipe

OD 5mm Ni-Cu alloy Monel 400 Tube pipe

Monel 400 seamless pipe sch10s

Monel 400 seamless pipe sch10s

Monel 400 (UNS N04400)pipe/tube

Monel 400 (UNS N04400)pipe/tube

welded pipe with monel 400 steel

welded pipe with monel 400 steel

Monel 400 seamless pipe 3 inch

Monel 400 seamless pipe 3 inch

Monel 400 seamless pipe 60.3mm

Monel 400 seamless pipe 60.3mm

ASME SB127 nickle alloy monel 400 welding pipe

ASME SB127 nickle alloy monel 400 welding pipe

Equivalent List of UNS N04400 Decorative Pipe

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Monel 400 Thick Wall Pipe Weight Per Foot

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020 16.073 10.790
0.337 8.560 22.318 14.983
6″ 6.625 168 0.188 4.775 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
8″ 8.625 219 0.188 4.775 25.233 16.940
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14″ 14.000 356 0.188 4.775 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
16” 16.000 406 0.188 4.775 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525

30

STD

 93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700

40

XHY

 123.289 82.770
18″ 18.000 457 0.219 5.563 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20″ 20.000 508 0.250 6.350 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
24″ 24.000 610 0.250 6.350 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.688 17.475 40 255.148 171.293
0.750 19.050 277.401 186.233
30″ 30.000 762 0.250 6.350 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36″ 36.000 914 0.250 6.350 142.180 95.453
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128

0.688

 17.475 386.487 259.467

0.750

 19.050 420.576 282.353
42″ 42.000 1067 0.312 7.925 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383
ASTM B725 Monel 400 Decorative Pipe with Ready Stock, Monel Thick Wall Pipe UNS N04400, Hollow Pipe Schedule 40, ASTM B725 400 Monel

Alloy UNS N04400 Seamless Tubes Pressure Class

Pipe O.D.
(in.) 		Wall Thickness of Pipe/Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/8 3100 4400 6100
1/2 2300 3200 4400
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300
Nickel, Copper / ASTM B-165 or Equivalent, Maximum Allowable Working Pressure (Psi) For Fractional Sizes
Pipe OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
1/16 6,422 7,872 10,768 13,484
1/8 6,422 9,325 11,823
3/16 4,081 5,935 7,630 11,005
1/4 4,305 5,518 8,053 10,946
3/8 3,530 5,107 7,029
1/2 2,595 3,721 5,078 6,699
5/8 2,051 2,927 3,970 5,200 6,056
3/4 1,696 2,412 3,259 4,249 4,933 5,755 6,422
7/8 1,446 2,051 2,764 3,592 4,161 4,842 5,391
1 5,040 7,140 9,595 12,445 14,390 16,715 18,585
Maximum Allowable Working Pressure (Bar) For Metric Sizes
Pipe OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
3 464 567 672 775 965
4 335 411 491 567 723 873
6 310 360 464 567 723 775
8 227 262 335 411 528 567
10 206 262 320 411 442
12 169 215 262 335 360 411 464
14 182 222 282 303 345 389 433 500 612
16 158 192 244 262 298 335 372 430 528
18 140 169 215 230 262 294 326 377 464
22 113 137 173 186 211 236 262 301 369
25 99 120 152 162 184 206 228 262 320
Price in Indonesia: Small Diameter Monel Alloy 400 Welded Tubes, 400 Monel Round Pipe. DIN 2.4360 Monel 400 Schedule 80 Hexagonal Pipe, B725 Alloy 400.

ASTM B725 400 Monel Schedule 40 Pipe Price per Foot

Price of monel 400 pipe manufacturer in Indonesia ASTM B165 monel 400 Pipe Price in Indonesia (INR) UNS N04400 Pipe Price in UAE Dirham
Monel 400 Pipe Nipple : Size:1 X 3/4 Xsch- 80s X Length 3 1/2 Inch INR 9,885 510.80 UAE Dirham
Nickel Alloy Smls Pipe 3/4 X Sch 805 X1 Mtr Long Monel 400 INR 11,559 597.30 UAE Dirham
Monel 400 Pipe 1/4 Sch 40 (Seamless Orwelded) (4 To 7 Mtr Long) INR 2,264 116.99 UAE Dirham
Monel 400 Pipe 1 1/2 Sch 40 (Seamlessor Welded) (4 To 7 Mtr Long) INR 14,785 764.00 UAE Dirham
