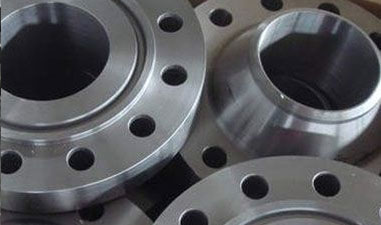

Alloy Steel Flanges

Check the material of ASTM A182 Low Alloy Steel flanges for customized high quality.

Alloy Steel Flanges are crafted from various steel alloys, each with unique dimensions and styles. Available in sizes ranging from Â½ to 48 inches in nominal diameter, Piping Material specializes in producing ASTM A182 Low Alloy Steel flanges for high-pressure applications, in adherence to ASTM A 182 standards.

ASTM A182 Low Alloy Steel flanges

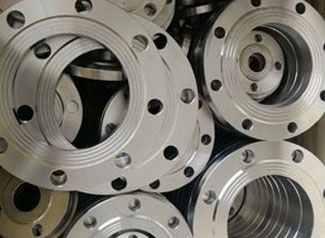

Alloy Steel Flange Material

Alloy Steel Blind Flanges at Competitive Prices in Indonesia, ASME SA 182 AS Pipe Flange Available, Top Quality ANSI B16.5 Alloy Steel Slip On Flange in Indonesia

The Alloy Steel Flanges are available in various standards and dimensions including B16.5 and B16.47. The material composition can vary, with grade 304 being popular due to its 18% chromium and 8% nickel content. The ANSI B16.5 Alloy Steel Slip On Flange facilitates precise pipe connections by allowing pipes to slip onto the flange.

Alloy Steel Flanges: Seamless pipes combined with slip on flanges ensure a smooth process. Alloy Steel Blind Flanges seal pipe connections, with various grades available. ASME SA 182 AS Pipe Flanges include weld neck and socket weld types for specific functions. Options include threaded, ring type joint, lap joint, weld neck, and socket welded flanges. The Alloy Steel Weld Neck Flange features a welded neck for secure pipe placement during welding. As a top Alloy Steel Flanges Manufacturer in Indonesia, we offer a wide range of flanges in different material grades. Contact us for your alloy steel flange requirements.

Check weight chart for Alloy Steel Weld Neck Flange, Manufacturers of Alloy Steel Flanges in Indonesia, Alloy Steel Threaded Flanges

ASTM A182 Low Alloy Steel flanges Chart And Weight

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flange	80	55	4	M10	11
	PN10 Flange	95	65	4	M12	14
	PN16 Flange	95	65	4	M12	14
	PN20 Flange	90	60.5	4	M14	16
	PN25 Flange	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Chemical Element of Alloy Steel Flange Material

Grade	C	Mn	Si	P	S	Cr	Mo
F1	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F5	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	4-6	0.44-0.65
F9	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	8-10	0.9-1.1
F11	0.5-0.15	0.3-0.6	0.5-1.0	0.03	0.03	1.0-1.5	0.44-0.65
F12	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F22	0.50.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F91	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	8-10	0.9-1.1

Mechanical Properties of ANSI B16.5 Alloy Steel Slip On Flange

Grade	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
F1	275	485	20 %
F5	275	485	20 %
F9	380	585	20 %
F11	205	415	20 %
F12	275	485	20 %
F22	205	415	20 %
F91	380	585	20 %

Types Of Alloy Steel Blind Flanges

AS slip-on raised face forged flange

BS4504 Welding Neck AS Flange

astm a182 f11 AS forged weld neck flange

ASME B16.5 ASTM A182 S31254 FLANGE SIZE 3/4 INCH CLASS150 SCH160 AS RAISED FACE WELDING NECK FLANGE

alloy flange 2-1/2"inch class300 lap joint loose flange LJW ANSI B16.5

ANSI b16.5 150 lb 300 lb 600lb Alloy Steel Pipe Flange sorf Flange

Forged Flange Alloy Steel Flange DN150 Class 150 Plate Flange ASME B16.5

Forged Flange Alloy Flange DN150 Class 150 Plate Flange ASME B16.5

Alloy Steel Flanges, Size: 0-1 inch and 1-5 inch

Alloy Steel Flange, Size: 0-1 inch and 1-5 inch

Alloy Steel Blind Flanges, Size: 1- 30 Inch

AS Blind Flanges, Size: 1- 30 Inch

High Alloy Steel Slip on Flanges, Size: 1/2 to 48 inch

High Alloy Slip on Flanges, Size: 1/2 to 48 inch

ASTM A105 Alloy Steel Wld Neck Flanges, Size: 5-10 inch

Astm / Asme A 182 AS Pipe Flanges, Size: 12-24 Inch

We are Manufacturer and Exporter of Alloy Steel Flanges Supplier In Indonesia. All of our Alloy Steel F22 Flanges,Alloy Steel F9 Flanges is made and tried to worldwide guidelines.

ASME SA 182 AS Pipe Flange Equivalent Material

Material Group	Common Name	Type	UNS	Forging Spec.	Casting Spec. Equivalent	DIN	DIN W. No	Application
Low AS	Moly Steel	C-1/2Mo	K12822	A182-F1 cl2	A217-WC1	15M03	1.5415	Up to 470ºC* (875ºF)
	AS Chrome Moly	1.1/4Cr-1/2Mo	K11572	A182-F11 cl2	A217-WC6	13CRM044	1.7335	Up to 593ºC (1100ºF)
		2.1/4Cr-1Mo	K21590	A182-F22 cl3	A217-WC9	10CRM0910	1.7380	Up to 593ºC (1100ºF), HP steam
		5Cr-1/2Mo	K41545	A182-F5/F5a	A217-C5	12CRMO195	1.7362	High temp refinery service
		9Cr-1Mo	K90941	A182-F9	A217-C12	X 12 CrMo 9 1	1.7386	High temp erosive refinery service
		9Cr-1Mo-V		A182-F91	A217-C12A	X 10 CrMoVNb 9 1	1.4903	High pressure steam

Explore our extensive inventory of Alloy Steel Plate Flanges, ANSI / ASME B16.5 Alloy Steel Flanges, and discover the specifications of Chrome Moly Alloy Steel RTJ Flanges

Specification Chart of Alloy Steel Weld Neck Flange

ASTM Specification	ASTM A182 , ASME SA182
Size in inch	1/2 inch (15 NB) to 48 inch (1200NB)
Standards	ANSI/ASME B16.5, B16.48, B 16.47 Series A & B, EN-1092, BS4504, BS 10, DIN
Class and Pressure Chart	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

We are well-known as a trusted Alloy Steel F1 Flanges Manufacturers in Indonesia, Alloy Steel A182 F91 Flanges, Alloy Steel Lap Joint Flange in Jawa Timur, Indonesia

Pressure Rating of Alloy Steel Flanges

ANSI/ASME B16.34	ANSI PRESSURE RATING
Temperature °F	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	265	695	925	1390	2085	3470	5785
200	260	680	905	1360	2035	3395	5660
300	230	655	870	1305	1955	3260	5435
400	200	640	855	1280	1920	3200	5330
500	170	620	830	1245	1865	3105	5180
600	140	605	805	1210	1815	3025	5040
650	125	590	785	1175	1765	2940	4905
700	110	570	755	1135	1705	2840	4730
750	95	530	710	1065	1595	2660	4430
800	80	510	675	1015	1525	2540	4230
850	65	485	650	975	1460	2435	4060
900	50	450	600	900	1350	2245	3745
950	35	280	375	560	845	1405	2345
1000	20	165	220	330	495	825	1370

Check the dimensions of ANSI B16.5 Alloy Forged Flanges - Wholesale Alloy Steel SWRF Flanges and AS Orifice Flanges at a competitive price.

Dimensions of ANSI B16.5 Alloy Steel Forged Flanges

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)	ASME B1.20.1, Pipe Threads, General Purpose ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250 ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 ASME B16.11, Forged Fittings, Socket Welding and Threaded ASME B16.25, Buttwelding Ends ASME B16.36, Orifice Flanges ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60 ASME B31.1, Power Piping ASME B31.3, Process Piping ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)

ASME B1.20.1, Pipe Threads, General Purpose
ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250
ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24
ASME B16.11, Forged Fittings, Socket Welding and Threaded
ASME B16.25, Buttwelding Ends
ASME B16.36, Orifice Flanges
ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60
ASME B31.1, Power Piping
ASME B31.3, Process Piping
ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay)

Alloy Steel Plate Flanges Price

Alloy Steel Blind Flange Price Per Piece in Indonesia	AS Weld Neck Flange Price in INR	Alloy Threaded Flange Price in UAE Dirham
1-1/2″ Alloy F5 blind flange Price in Indonesia	4295.11	UAE Dirham 227.43
1-1/2″ AS Threaded Flange Price in Indonesia	6203.36	UAE Dirham 328.48
Forged Alloy Slip-On Flange Price in Indonesia	2621.32	UAE Dirham 138.80
3″ AS Weld Neck Flange Price List	11160.22	UAE Dirham 590.95
3″ Alloy F5 blind flange Price List	10095.45	UAE Dirham 534.57
