Hastelloy C276 Flanges in Indonesia

Manufacturer of UNS N10276 SORF Flange, DN15-1200 Forged Alloy C276 Flange with 3000lbs forged strength

Hastelloy C276 Flanges are made from a durable nickel-chromium-molybdenum alloy called hastelloy, containing 50.99% nickel, 14.5% chromium, and 15% molybdenum, along with other essential elements. With a high melting point of 1370 degrees Celsius, these flanges are designed to resist extreme temperatures. They offer a minimum tensile strength of 790MPa and a minimum yield strength of 355MPa.

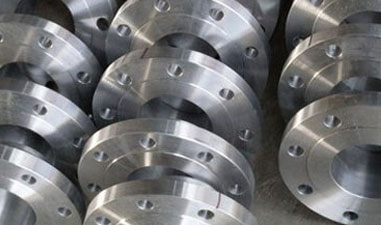

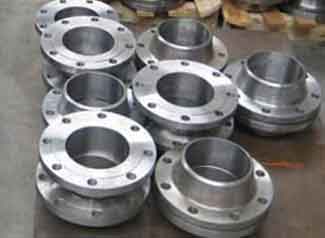

Hastelloy C276 Flanges

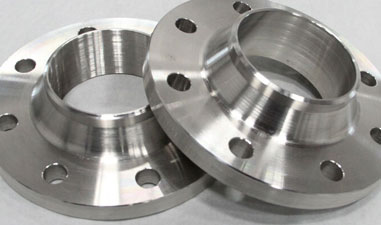

Alloy C276 Forged Flange

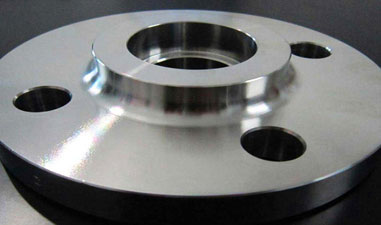

UNS N10276 SORF Flange

Price in Indonesia for CNC machining ASTM B564 Hastelloy C276 Pipe Flanges and Blind Flanges made from Hastelloy Alloy C276

The Hastelloy C276 Flange is crafted using a forging method to enhance its strength, ensuring it retains its shape. Available in various sizes, standards, and specifications like the UNS N10276 SORF Flange, it can adhere to ASTM B564 specifications and various industry standards like ANSI, ASME, EN, or DIN. These flanges come in sizes ranging from ½ inch to 60 inches in this specific material grade.

Table of Contents

• Specification List of Alloy C276 Forged Flange
• Size Schedule Chart of UNS N10276 SORF Flange
• Hastelloy C276 Pipe Flanges Chemical Composition
• Alloy C276 Blind Flanges Mechanical Strength Table
• Most Selling Types Of Alloy UNS N10276 Nippolet Flanges
• Equivalent Material Grade Of Alloy C276 Plate flange
• Hastelloy C276 Lap Joint Flange Pressure Chart
• Weight Of Hastelloy C276 ASME SB564 Screwed Flanges
• Hastelloy C276 UNS N10276 Nippo Flanges Dimension
• Price List of ASTM B564 Hastelloy C276 Weld Neck Flange

The ASTM B564 Hastelloy C276 Pipe Flanges are available in various pressure classes ranging from 150 to 2500 and PN6 to PN64. These flanges are used in offshore oil drilling, power generation, petrochemicals, gas processing, and specialty chemicals industries. Specialized flanges like the Hastelloy Alloy C276 Blind Flanges are utilized for pipeline closure. These flanges find applications in pharmaceuticals, sea water equipment, heat exchangers, and condensers. The ASME SB564 Alloy C276 Plate flange is also commonly used in these sectors. Contact us for more details and pricing information.

Specification List of Alloy C276 Forged Flange

Standards	GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN
Pressure Rating ANSI	Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600,
Pressure Calculation in DIN	10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6
JIS	16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K,
UNI	10Bar 16Bar 6Bar 25Bar 40Bar
EN	6Bar 25Bar 40Bar 10Bar 16Bar
Most common Types	Threaded / Screwed / Forged / Plate
Production technique	Forged, Heat treated and machined
Shapes and Types we produce	Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF)
Test	Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector
Equipment	Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc

Indonesia Hastelloy C276 ASME SB564 Alloy Plate Flange Dimensions, #150 ANSI C276 Hastelloy Lap Joint Flange, Screwed Flanges.

Size Schedule Chart of UNS N10276 SORF Flange

Nickel C276 Flange	1/2″ (15 NB) to 48″ (1200NB)
ASME SB564 Alloy C276 Slip on Flange	1/2″ NB – 12″ NB
ASTM B564 UNS N10276 Blind Flange	1/2″ NB – 24″ NB

Hastelloy C276 Pipe Flanges Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 ? 16.50	4.00 ? 7.00	15.00 ? 17.00	0.04 max

Alloy C276 Blind Flanges Mechanical Strength Table

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 ?C (2500 ?F)	Psi ? 1,15,000 , MPa ? 790	Psi ? 52,000 , MPa ? 355	40 %

Most Selling Types Of Alloy UNS N10276 Nippolet Flanges

forged Hastelloy C276 alloy flange

hastelloy g flange SGS Hastelloy C276 flange flat face flange

ansi b16.5 1500lb c276 N10276 hastelloy flange

UNS N10276 Hastelloy C276 Blind Flange DIN2527 PN6-PN100 DN10-DN1000

hastelloy c276 din standard plate flange

hastelloy c276 weld neck flat face flanges

Hastelloy flanges hastelloy C276 Flange

Hastelloy c276 UNS N10276 welding neck WN flange

hastelloy c276 weld overlay clad flange

UNS N10276 C276 Flange 1 1/2" Class 600 SO RF Forged Flange Hastelloy Flange

nickel alloy C276 hastelloy flange

Hastelloy C276 Socket Welding SW Flange

Equivalent Material Grade Of Alloy C276 Plate flange

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C276	2.4819	N10276	NW 0276	??65???	NiMo16Cr15W	??760

Hastelloy C276 Lap Joint Flange Pressure Chart

ANSI/ASME B16.34	PRESSURE RATING CHART
Temperature °F	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

Weight Of Hastelloy C276 ASME SB564 Screwed Flanges

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

ASTM B564 Hastelloy C276 Weld Neck Flange, ANSI / ASME B16.5 UNS N10276 Socket Weld Flanges, Check ASME SB564 Ring Type Joint Flanges Pressure Rating

Hastelloy C276 UNS N10276 Nippo Flanges Dimension

AMERICAN SOCIETY OF MECHANICAL ENGINEERS (ASME)

ASME B16.11, Forged Fittings, Socket Welding and Threaded ASME B16.25, Buttwelding Ends ASME B16.36, Orifice Flanges ASME B1.20.1, Pipe Threads, General Purpose ASME B16.1, Cast Iron Flanges and Flanged Fittings Classes 25, 125 and 250 ASME B16.5, Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 ASME B16.47, Large Diameter Steel Flanges NPS 26 Through NPS 60 ASME B46.1, Surface Texture (Surface Roughness, Waviness, and Lay) ASME B31.1, Power Piping ASME B31.3, Process Piping

C276 Hastelloy Slip On Flanges, API / DIN / JIS / GB UNS N10276 Orifice Flange, DN15~DN150 Hastelloy C276 Long Weld Neck Flange, Hastelloy DIN NR. 2.4819 Spectacle Blind Flanges weight Chart

Price List of ASTM B564 Hastelloy C276 Weld Neck Flange

Hastelloy C276 Flanges Price List	Alloy C276 Forged Flange Price in Indonesia	UNS N10276 SORF Flange Prices
Hastelloy C276 Flange Prices	US $1.8-159 / Piece	UAE Dirham 0.087 - 7.73
Alloy C276 Pipe Flange Price Per kg	US $1500 / Ton	UAE Dirham 72.90
Alloy C276 Blind Flange Price	US $1-500 / Piece	UAE Dirham 0.049 - 24.30
Price List of ASTM B564 Orifice Flange	US $999-1499 / Piece	UAE Dirham 48.55 - 72.85

Available Inventory Of Hastelloy C276 Flanges

Hastelloy C276 Weld Neck Flanges	ASME SB564 Alloy C276 Lap Joint Flanges
C276 Hastelloy Long Weld Neck Flanges	Alloy C276 Spectacle Blind Flanges
Nickel C276 Spades & Ring Spacers	Hastelloy Alloy C276 Nipoflange
ASTM B564 UNS N10276 5D Weldoflange	Hastelloy C276 Flange Outlet
Hastelloy DIN 2.4819 Flange	Hastelloy Alloy C276 Blind Flange
Hastelloy DIN 2.4819 Forged Flanges	C276 Hastelloy Plate Flange
Hastelloy DIN 2.4819 Flanges	C276 Hastelloy BS 10 Flanges
Nickel C276 BS 4504 Flanges	ASTM B564 UNS N10276 EN 1092-1 Flanges
Hastelloy C276 SORF Flange	Alloy C276 BLRF Flange
Hastelloy Alloy C276 WNRF Flange	Hastelloy DIN 2.4819 Series a Lap Joint Ring Flange
Alloy C276 Class 150 LBS Flange	ASME SB564 Alloy C276 PN10 Forged Flanges
