Carbon Steel Flanges Manufacturer Indonesia in Indonesia

Price List of Carbon Steel Pipe Flange, ANSI B16.5 Class 150 Flange

Piping Material is a top manufacturer of Carbon Steel Flanges in Indonesia, offering a variety of types and material grades. Our flanges contain carbon, manganese, phosphorus, sulfur, silicon, copper, nickel, chromium, molybdenum, and vanadium based on the material grade. The prices of Carbon Steel Pipe Flanges vary depending on the material grade.

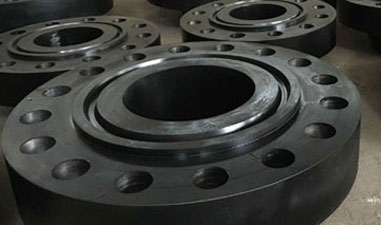

Carbon Steel Flanges Manufacturer Indonesia

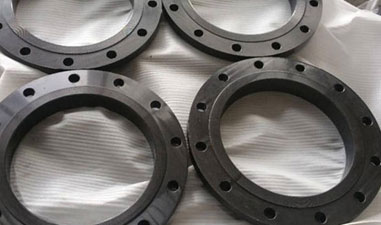

Carbon Steel Pipe Flange

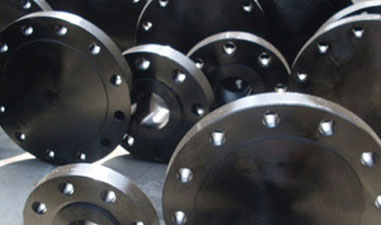

Flange ANSI B16.5 Class 150

View Dimensions of Carbon Steel Weld Neck Flange from Reliable Manufacturer of CS Lap Joint Flange and Blind Flange

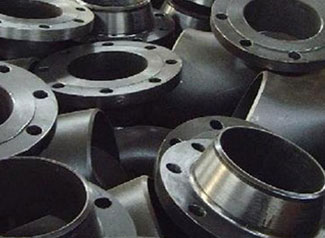

Carbon Steel Flanges Manufacturer in Indonesia

The carbon steel flanges vary in dimensions and strengths. They have a minimum tensile strength of 485MPa and a minimum yield strength of 250MPa. The Flange ANSI B16.5 Class 150 falls under the medium pressure category of the B16.5 standard flanges. The materials and pressure classes for the flanges are determined by the nominal bore sizes and wall thicknesses.

Table of Contents

• Carbon Steel Pipe Flange Specification List
• Pressure classes of Flange ANSI B16.5 Class 150
• Carbon Steel 150# Flange Dimension Table
• Carbon Steel Blind Flange Physical Composition
• CS Lap Joint Flange HSN Code
• Most Commonly Used Carbon Steel Weld Neck Flange Types
• Chemical Composition of BS 4504 Carbon Steel Forged Flange
• Mechanical Properties of ANSI B16.48 CS Threaded Flange
• Carbon Steel Plate Flange Weight
• ANSI B16.5 Carbon Steel Spectacle Blind Flange Price

Carbon Steel Flanges Manufacturer in Indonesia The nominal bore sizes range from ½ inches to 48 inches with various classes like Carbon Steel 150# Flange Rating for different pressure ratings. Various types of flanges serve specific purposes. The Carbon Steel Blind Flange terminates pipe connections permanently or temporarily. Permanent connections involve welding, while temporary ones use bolts and nuts. The CS Lap Joint Flange features a lap joint. Carbon steel flanges are durable with high wear resistance. Contact us for details on Carbon Steel Weld Neck Flange Dimensions, prices, and more information.

Carbon Steel Pipe Flange Specification List

Specifications	ASTM A105 / ASME SA105, A105N
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/2″ to 48″
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flanges Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

View 3000lbs Forged BS 4504 Carbon Steel Flange DN15-1200, ANSI B16.48 Threaded Flange, and Carbon Steel 150# Flanges Rating

Pressure classes of Flange ANSI B16.5 Class 150

pressure rating in psig for common CS ASME flanges ( A105 / A350 LF2 / A350 LF3 / A350 LF6)
Temperature (F°)	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	285	740	985	1480	2220	3705	6170
200	260	680	905	1360	2035	3395	5655
300	230	655	870	1310	1965	3270	5450
400	200	635	845	1265	1900	3170	5280
500	170	605	805	1205	1810	3015	5025
600	140	570	755	1135	1705	2840	4730
650	125	550	730	1100	1650	2745	4575
700	110	530	710	1060	1590	2655	4425
750	95	505	675	1015	1520	2535	4230
800	80	410	550	825	1235	2055	3430
850	65	320	425	640	955	1595	2655
900	50	230	305	460	690	1150	1915
950	35	135	185	275	410	685	1145
1000	20	85	115	170	255	430	715

Carbon Steel 150# Flange Dimension Table

Pipe Size	150 #			300 #			600 #			900 #			1500 #			2500 #
	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD	WN	SO	BLD
1/2"	2	1	1	2	1	1	2	2	2	SEE 1500 # WEIGHTS			5	4	4	7	7	7
3/4"	2	2	2	3	3	3	4	3	3	SEE 1500 # WEIGHTS			6	5	6	8	8	8
1"	3	2	2	4	3	3	4	4	4	SEE 1500 # WEIGHTS			9	8	8	12	11	11
1 1/2"	4	3	3	7	6	6	8	7	8	SEE 1500 # WEIGHTS			13	12	13	25	22	23
2"	6	5	5	9	7	8	12	9	10	SEE 1500 # WEIGHTS			25	25	25	42	37	39
2 1/2"	8	7	7	12	10	12	18	13	15	SEE 1500 # WEIGHTS			36	36	35	52	55	56
3"	10	8	9	15	13	16	23	16	20	31	26	29	48	48	48	94	83	86
4"	15	13	17	25	22	27	42	37	41	53	53	54	73	73	73	145	125	130
5"	19	15	20	32	28	35	68	63	68	86	83	87	130	130	140	245	210	225
6"	24	19	26	42	39	50	81	80	86	110	110	115	165	165	160	380	325	345
8"	39	30	45	67	58	81	120	115	140	175	170	200	275	260	300	580	485	530
10"	52	43	70	91	81	124	190	170	230	260	245	290	455	435	510	1075	930	1025
12"	80	64	110	140	115	185	225	200	295	325	325	415	690	580	690	1525	1100	1300
14"	110	90	140	180	165	250	280	230	355	400	400	520	940	NA	975	NA	NA	NA
16"	140	98	180	250	190	295	390	330	495	495	425	600	1250	NA	1300	NA	NA	NA
18"	150	130	220	320	250	395	475	400	630	680	600	850	1625	NA	1750	NA	NA	NA
20"	180	165	285	400	315	505	590	510	810	830	730	1075	2050	NA	2225	NA	NA	NA
22"	225	185	355	465	370	640	720	590	1000	NA	NA	NA	NA	NA	NA	NA	NA	NA
24"	260	220	430	580	475	790	830	730	1250	1500	1400	2025	3325	NA	3625	NA	NA	NA

Conversion Data
• 1 inch = 25.44 mm	• 1 mm = 0.03937 inches	• 1 lb/ft^2 = 47.88 Pa	• 1 psi = 6.8948 Pa	• x°F = (5/9)(x-32)°C
• 1 pound = 0.45359 Kg	• 1 Kg = 2.20462 pounds	• 1 Pa = 0.020885 lb/ft^2	• 1 Pa = 0.00014504 psi	• x°C = (9/5)x + 32°F

Carbon Steel Blind Flange Physical Composition

Density (lb / cu. in.)	0.284
Specific Gravity	7.9
Specific Heat (Btu/lb/Deg F - [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Thermal Conductivity	360
Mean Coeff Thermal Expansion	6.7
Modulus of Elasticity Tension	30
Modulus of Elasticity Torsion	11

CS Lap Joint Flange HSN Code

73072100

Flanges

601

Most Commonly Used Carbon Steel Weld Neck Flange Types

150# astm a105 ansi b16.5 carbon steel rf plate flat flanges

ANSI B16.5 150# SORF SLIP ON Raised Face 24" A105 Carbon Steel Flanges

Galvanized carbon pipe flanges

Carbon Flanges A350 LF2 6'' x 4'' 150# STD RF Nipo Flanges

ASME b16.48 carbon steel blind flanges

2Inch so rf class 150 flanges Astm a105 carbon steel slip on flanges

Forging Carbon Steel Flanges Slip on So Flanges

10'' x 2'' CL300 STD RF Carbon Steel Flanges

class 150 3Inch so rf flanges Astm a105 carbon steel slip on flanges

CS WNRF FLANGES CL:150 1.5" SCH40 PN 16 Steel flanges

A105 6in RF Class 600 SCH 40 WN carbon steel flanges

carbon steel din standard flanges pn10 sch80 flanges

Chemical Properties of Carbon Steel Industrial Flanges: ANSI B16.5 Spectacle Blind Flanges, Orifice Flanges, and Check CS Flanges

Chemical Composition of BS 4504 Carbon Steel Forged Flange

Elements	Composition, %
Carbon [C]	≤0.35
Manganese [Mn]	0.60-1.05
Phosphorus [P]	≤0.35
Sulfur [S]	≤0.40
Silicon [Si]	0.10-0.35
Copper [Cu]	≤0.40
Nickel [Ni]	≤0.40
Chromium [Cr]	≤0.30
Molybdenum [Mo]	≤0.12
Vanadium [V]	≤0.08

Mechanical Properties of ANSI B16.48 CS Threaded Flange

Tensile Strength min.		Yield Strength min.		Elongation min.	Reduction of Area, min.	Hardness
MPa	ksi	MPa	ksi	%	%	HBW
485	70	250	36	22	30	137-187

Supplier of Carbon Steel Plate Flange in Indonesia, Check Forged Carbon Steel Socket Weld Flange sizes, CS Flange Weight Chart

Carbon Steel Plate Flange Weight

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129 Flanges	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN) Flanges	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

ANSI B16.5 Carbon Steel Spectacle Blind Flange Price

Carbon Steel Flanges Price Per Piece in Indonesia	CS Blind Flanges Price in INR
carbon steel pipe flanges	$0.80-$1.50/ Piece
CS Flanges A350 LF2 6'' x 4'' 150# STD RF Nipo Flanges	$24.22-$29.99/ Piece
ASME b16.48 carbon steel blind flanges	$2.50-$4.00/ Kilogram
Carbon Steel Flanges Slip on Flanges	$5.00-$50.00/ Piece
