ASTM A106 Grade B Seamless Pressure Pipe in Indonesia

View ASME SA106 GRB CS Welded Pipe, Buy ASTM A106 Gr B Pipe Weight Chart

ASTM A106 Grade B Seamless Pressure Pipe is designed for pressure use according to ASTM A106 standards. This carbon steel material offers excellent durability, corrosion resistance, strength, and toughness. Piping Material is a reputable provider of ASTM A106 Grade B Pipe in various dimensions and sizes.

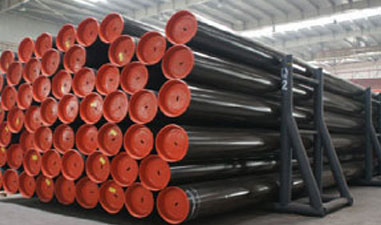

ASTM A106 Grade B Seamless Pressure Pipe

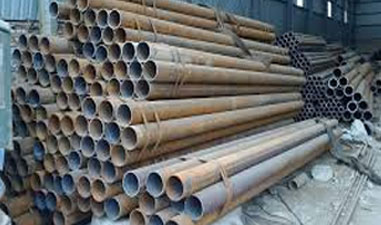

ASME SA106 GRB CS Welded Pipe

ASTM A106 Gr B Pipe

ASTM A106 Gr B ERW Pipe Manufacturer, Carbon Steel Seamless Pipe ASTM A106 Supplier, A106 SCH 40 Carbon Steel Pipe Supplier In Indonesia

ASTM A106 Grade B Seamless Pressure Pipe Specifications The ASTM A106 Grade B Seamless Pressure Pipe adheres to ASTM, ASME, and API standards. Widely used in the oil and gas sector and petrochemical applications, this pipe comes in sizes ranging from 1/2 inches to 36 inches in nominal bore size and 3mm to 12mm in wall thickness. The pressure ratings are determined by the wall thickness and nominal bore size, classified into schedules ranging from sch 40 to XXS.

Table of Contents

• ASME SA106 GRB CS Welded Pipe Specification List
• ASTM A106 Gr B Pipe Weight Chart Diameter
• ASTM A106 Gr B ERW Pipe Tensile
• Composition of Carbon Steel Seamless Pipe ASTM A106
• Mechanical Analysis of A106 SCH 40 Carbon Steel Pipe
• Most Commonly Used CS A106 Grade B Square Pipe Types
• Equivalent Material Of ASTM A106 GR. B Carbon Steel Pipes
• CS A106 Grade B Hollow Pipe Dimension Table
• CS A106 Gr.B Bush Hex Pipe Price
• Pressure classes of A106 Seamless Black Round Pipes
• Carbon Steel ASTM A106 Pipe Size Schedule Chart

ASTM A106 Grade B Seamless Pressure Pipe The ASME SA106 GR.B Welded Pipe comes in lengths ranging from 3m to 18m, with options for custom lengths to suit customer needs. This pipe offers plain end, threaded, and beveled end varieties. A part of a comprehensive selection of seamless, welded, fabricated, or electric resistance welded pipes, the ASTM A106 Gr B ERW Pipe undergoes a process that includes welding strips or sheets in a longitudinal or spiral fashion. Comprised of carbon, manganese, silicon, copper, nickel, chromium, molybdenum, vanadium, and phosphorus, this carbon steel pipe boasts a minimum yield strength of 240MPa and a minimum tensile strength of 415MPa. Ideal for applications in chemical, petrochemical, pharmaceutical, and high-temperature environments, the A106 SCH 40 Carbon Steel Pipe offers dependable performance. For further details and pricing on various schedules of these pipes, please reach out to us.

ASME SA106 GRB CS Welded Pipe Specification List

Standards	ASTM, ASME and API, ANSI B 36.10
Craft	Cold rolled and Cold drawn
ANSI Standard	B1.20.
Grades	ASTM A106 Grade A, Grade B, Grade C
Type	ERW / Seamless / Fabricated / Welded
Size	1/2” NB to 36” NB
Length	Minimum 3 Meters, Maximum 18 Meters
Thickness	3-12mm
Specialized in	Large Diameter ASTM A106 Grade B Pipe
Schedules	Schedule 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
ASME Standard	B36.10M
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
End	Plain End, Beveled End, Treaded

Suppliers of Carbon Steel A106 Grade B Square Pipe diameter and ASTM A106 GR. B Hollow Pipes, CS A106 Grade B Hollow Pipe Manufacturers

ASTM A106 Gr B Pipe Weight Chart Diameter

NPS [DN Designator]	Over		Under
	in.	mm	in.	mm
1/8 to 1-1/2 [6 to 40], incl	1/64 (0.015)	0.4	1/64 (0.015)	0.4
Over 1-1/2 to 4 [40 to 100], incl	1/32 (0.031)	0.8	1/32 (0.031)	0.8
Over 4 to 8 [100 to 200], incl	1/16 (0.062)	1.6	1/32 (0.031)	0.8
Over 8 to 18 [200 to 450], incl	3/32 (0.093)	2.4	1/32 (0.031)	0.8
Over 18 to 26 [450 to 650], incl	1/8 (0.125)	3.2	1/32 (0.031)	0.8
Over 26 to 34 [650 to 859], incl	5/32 (0.156)	4.0	1/32 (0.031)	0.8
Over 34 to 48 [850 to 1200], incl	3/16 (0.187)	4.8	1/32 (0.031)	0.8

ASTM A106 Gr B ERW Pipe Tensile

Seamless	Grade A	Grade B	Grade C
Tensile Strength, min., psi	48,000	60,000	70,000
Yield Strength, min., psi	30,000	35,000	40,000

Composition of Carbon Steel Seamless Pipe ASTM A106

Element	Grade A	Grade B	Grade C
Carbon max. %	0.25	0.30*	0.35*
*Manganese %	0.27 to 0.93	*0.29 to 1.06	*0.29 to 1.06
Phosphorous, max. %	0.035	0.035	0.035
Sulfur, max. %	0.035	0.035	0.035
Silicon, min.%	0.10	0.10	0.10
Chrome, max. %	0.40	0.40	0.40
Copper, max. %	0.40	0.40	0.40
Molybdenum, max. %	0.15	0.15	0.15
Nickel, max. %	0.40	0.40	0.40
Vanadium, max.%	0.08	0.08	0.08

Mechanical Analysis of A106 SCH 40 Carbon Steel Pipe

Grade	Yield Strength	Tensile Strength
A106 Gr.B	240	415

Most Commonly Used CS A106 Grade B Square Pipe Types

ASTM a106 steel pipe spiral welded steel pipes

ASTM a106 gr.b 30 inch carbon steel seamless pipes

astm a106 gr.b 12 inch hot dipped galvanized steel pipes

ASTM A106 gr.b carbon welded steel pipes

sch 160 astm a106 gr.b erw carbon steel pipes

A106 Gr. B API 5L Standard Seamless pipes

asme b36.10 pe 23mm astm a106 gr. b seamless stainless spiral pipes

1inch - 10 inches Hot Dipped Galvanized Steel Welded Pipes ASTM A106 GR. B SCH 40 Pipes

ASTM A106 Gr. B ERW schedule 40 carbon steel pipes

ASTM A106 gr.b seamless steel pipes

astm a106 gr b cement line seamless cs pipes

Astm A106 Gr B Carbon Steel Seamless Pipe

Equivalent Material Of ASTM A106 GR. B Carbon Steel Pipes

Former		New
Execution	Standard	Material	Standard	Material
Seamless	EN 10216-4	P265NL	ASTM A333	GRADE 6
Seamless	EN 10216-2	P265GH	ASTM A106	GRADE B
Welded	EN 10208-2	L360NB	API 5L	Grade X52
Welded	EN 10208-2	L245NB	API 5L	Grade B
Seamless	EN 10208-2	L360NB	API 5L	Grade X52
Seamless	EN 10208-2	L245NB	API 5L	Grade B

A106 Pipe vs A53 Pipe

		Grade A	Grade B	Grade C
ASTM A53	Tenside strength, min, psi (MPa)	48000(330)	60000(415)
	Yield strength, min, psi (MPa)	30000(205)	35000(240)
ASTM A106	Tenside strength, min, psi (MPa)	48000(330)	60000(415)	70000(485)
	Yield strength, min, psi (MPa)	30000(205)	35000(240)	40000(275)

CS A106 Grade B Hollow Pipe Dimension Table

Standard	Permissible Variations in Outside Diameter
	NPS”	OVER	UNDER
ASTM A53-12	1-1/2 and less	1/64” (0.015”)	1/64” (0.015”)
ASTM A53-12	2 and over	1% of OD	1% of OD
ASTM A106-15	1/8 to 1-1/2	1/64” (0.015”)	1/64” (0.015”)
ASTM A106-15	Over 1-1/2 to 4	1/32” (0.031”)	1/32” (0.031”)
ASTM A106-15	Over 4 to 8	1/16” (0.062”)	1/32” (0.031”)
ASTM A106-15	Over 8 to 18	3/32” (0.093”)	1/32” (0.031”)
A106-15	Over 18 to 26	1/8” (0.125”)	1/32” (0.031”)
A106-15	Over 26 to 34	5/32” (0.156”)	1/32” (0.031”)
A106-15	Over 34 to 48	3/16” (0.187”)	1/32” (0.031”)

Purchase CS A106 Gr.B Bush Hex Pipe in any quantity, A106 Seamless Black Round Pipes at competitive prices, Carbon Steel ASTM A106 Pipe available in Jawa Timur, Indonesia

CS A106 Gr.B Bush Hex Pipe Price

Size"	MSL Make	ISMT make	JSL Make
1/2"	1,323.53	1,316.18	1,330.88
3/4"	1,102.94	1,095.59	1,110.29
1"	955.88	948.53	963.24
1.25"	911.76	904.41	919.12
1.5"	808.82	801.47	816.18

Size”	A106 grade b smls pipe Price list in Indonesia(US$)	SA106 Welded pipes Price list in UAE Dirham(AED)
1/2″ ASTM A106 Grade B Pipe	1,323.40	4861.40
3/4″ A106 Gr B Erw Pipe	1,102.84	4051.16
1″ ASTM A106 Seamless Pipe	955.80	3511.10
1.25″ SA106 Welded pipes	911.66	3349.10
1.5″ ASTM A106 Grade B	808.81	2972.92

Pressure classes of A106 Seamless Black Round Pipes

NPS	Outside Diameter	Schedule
(in)	(in)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4	0.54				7985	7985		10798	10798
3/8	0.675				6606	6606		9147	9147
1/2	0.84				6358	6358		8575	8575				10908	17150
3/4	1.05				5273	5273		7187	7187				10220	14373
1	1.315				4956	4956		6670	6670				9316	13340
1 1/4	1.66				4133	4133		5638	5638				7380	11276
1 1/2	1.9				3739	3739		5158	5158				7247	10316
2	2.375				3177	3177		4498	4498				7097	8995
2 1/2	2.875				3460	3460		4704	4704				6391	9408
3	3.5				3024	3024		4200	4200				6132	8400
3 1/2	4				2769	2769		3896	3896
4	4.5				2581	2581		3670	3670		4769		5782	7339
5	5.563				2273	2273		3303	3303		4404		5505	6606
6	6.625				2071	2071		3195	3195		4157		5318	6390
8	8.625		1420	1574	1829	1829	2307	2841	2841	3375	4085	4613	5147	4971
10	10.75		1140	1399	1664	1664	2279	2279	2708	3277	3847	4558	5128	4558
12	12.75		961	1268	1441	1560	2160	1922	2644	3244	3843	4324	5042	3843
14	14	875	1092	1313	1313	1533	2079	1750	2625	3283	3829	4375	4921
16	16	766	956	1148	1148	1531	2009	1531	2585	3157	3733	4404	4882
18	18	681	849	1192	1021	1530	2042	1361	2553	3147	3743	4252	4848
20	20	613	919	1225	919	1455	1989	1225	2526	3138	3675	4288	4824
22	22	557	835	1114	835		1949	1114	2506	3063	3619	4176	4733
24	24	510	766	1147	766	1405	1978	1021	2489	3126	3700	4210	4786
30	30	510	817	1021	613			817
32	32	478	766	957	574	1054
34	34	450	721	901	540	992
36	36	425	681	851	510	1021
42	42		583	729	438	875

Purchase A106 Grade B Pipes Directly from Manufacturers, Ready Stock of A106 LSAW Pipes in Various Sizes including Carbon Steel A106 Gr.b Rectangular Pipe

Carbon Steel ASTM A106 Pipe Size Schedule Chart

ASTM A106 Grade B Seamless Pressure Pipe OD milimeter	Pipe WT milimeter	inch	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97
