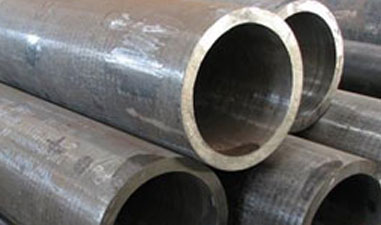

ASTM A335 P11 Seamless Pipe

Leading Manufacturer of ASTM A335 P11 Alloy Steel Pipe in Indonesia, Offering the Oldest ASME SA335 Grade P11 High Pressure Steel Pipe

ASTM A335 P11 Seamless Pipe is crafted from carbon steel with a minimum tensile strength of 415MPa and minimum yield strength of 205MPa. This material boasts exceptional toughness and resistance to wear and tear. Piping Material is a top provider of ASTM A335 P11 Pipe in a range of sizes and variations.

ASME SA335 Grade P11 High Pressure Steel Pipe

ASTM A335 P11 Alloy Steel Pipe

Check the composition of P11 Alloy Steel Welded Pipe, Buy ASTM A335 P11 ERW Pipe in any size and quantity, AS P11 Grade Material available

ASTM A335 P11 Seamless Pipe The ASTM A335 P11 Seamless Pipe is made up of carbon, manganese, phosphorus, sulfur, silicon, chromium, and molybdenum. This composition gives the ASME SA335 Grade P11 Chrome Pipe toughness, strength, hardness, wear resistance, hardenability, hot hardness, and corrosion resistance. Heat treatment is an option for these ASTM A335 P11 Alloy Steel Pipe products, which find applications in spacecraft, jet engine turbine blades, and nuclear reactors.

ASTM A335 P11 Seamless Pipe is crucial for transformers and electric motors, leveraging its magnetic properties. The alloy's ferromagnetic nature is vital in these applications, with chromium enhancing oxidation resistance. Molybdenum adds elasticity, wear resistance, and strength. Different applications may require ASTM A335 P11 ERW Pipe, which is electric resistance welded. Both seamless and ERW pipes are versatile and can be used interchangeably. Contact us for more information and pricing details.

SA335 Gr P11 High Pressure Steel Pipe Material Specification

Size in Inch	1/8NB TO 24NB inch
ASTM Standards	ASTM A 335, and ASME SA 335
Type	Seamless Pipe
Specialized in Size	Large Diameter Size
Outer Dimensions Chart	19.05milimeter – 114.3milimeter
Wall Thickness Chart	2.0milimeter – 14 milimeter
Length in milimeter	max 16000milimeter
Schedule Chart	Schedule 20 - XXS up to 250 milimeter thk.
Pipe Form	Round, Rectangular, Square, Hydraulic Etc.
Length	Single, Double Random & Cut to Length.
Pipe & Tube End	Plain, Beveled, Treaded.

Discover the Properties of Alloy Steel P11 EFW Pipes, Source P11 Alloy Steel Hollow Pipe, Alloy Steel P11 Pipe Supplies Available

Heat Treatment of ASTM A335 P11 Alloy Steel Pipe

	P5, P9, P11, and P22
Grade Chet	Heat Treatment Type	Normalize Temp Range F [C]	Annealing and Tempering Temp Range F [C]
P5 (b,c)	Isothermal or Full Anneal
	Temper and Normalize	*	1250 [675]
	Subcritical Anneal (P5c only)	*	1325 - 1375 [715 - 745]
P9	Isothermal or Full Anneal
	Temper and Normalize	*	1250 [675]
P11	Isothermal or Full Anneal
	Temper and Normalize	*	1200 [650]
P22	Isothermal or Full Anneal
	Temper and Normalize	*	1250 [675]
P91	Temper and Normalize	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]
	Temper and Quench	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]

Tensile Chart of P11 Alloy Steel Welded Pipe

	Seamless Pipe
	P5	P9	P11	P22	P91
Tensile Strength, minimum., psi
ksi	60	60	60	60	85
MPa	415	415	415	415	585
Yield Strength, minimum., psi
ksi	30	30	30	30	60
MPa	205	205	205	205	415

AS P11 Grade Material Size Chart In Mm

ASTM A335 P11 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

ASTM A335 P11 ERW Pipe Chemical Structure

C, %	S, %	Si, %	Mn, %	P, %	Cr, %	Mo, %
0.015 Maximum	0.025 Maximum	0.50 Maximum	0.30-0.60	0.025 Maximum	4.00-6.00	0.45-0.65

Alloy Steel P11 EFW Pipes Mechanical Properties Table

Tensile Strength, in MPa	Yield Strength, in MPa	Elongation, %
415 minimum	205 minimum	30 minimum

Basic Types Of P11 Alloy Steel Hollow Pipe

ASTM A335 Steel p11 seamless steel pipe steel tube

ASTM A335 Steel p11 seamless steel pipes steel tube

6m, 3m Astm A335 P11 Alloy Pipes

ASTM A335 Gr P11 Pipes 30m

1/2 inch, 2 inch, 1 inch, Round ASTM A 335 P11 Pipes

3/4 inch, 1 inch, Black Alloy ASTM A335 Pipes

ASTM A 335 P22 Alloy Steel Pipes, Size: 1/2 Inch And 3 Inch

Black P11 Alloy Steel Seamless Pipe, Size: 2 Inch And >3 Inch

Black P11 Alloy Steel Seamless Pipes, Size: 2 Inch And >3 Inch

6m Round Alloys Steel ASTM A335 P11 Welded Pipes

ASTM A335 P11 Seamless Steel Pipes

ASTM A335 Grade P11 Alloy Steel Seamless Pipes, Size: 1/2 & 3/4 inch

ASTM A335 Grade P11 AS Seamless Pipes, Size: 1/2 & 3/4 inch

P11 Alloy Steel Welded Pipe, Size: upto 48 ''

P11 Alloy Welded Pipes, Size: upto 48 ''

Black Alloy Steel Seamless Tube A335 P11

Black Alloy Seamless Tube A335 P11

Alloy Steel P11 Pipe Equivalent Grades

ASTM Number	ASME Number	Equivalent Grade	JIS G 3458 Chart	UNS Number	BS Number	DIN Number	ISO Number	ABS Number	NK Numbero	LRS Number
A335 P11	SA335 P11	T11	STPA 23	K11597	3604 P1 621	-	-	ABS 11	KSTPA 23	-

ASTM Standard	British Standards institute(BSI)	Alloy P11 Steel Material
A335 Gr. P11	3604/621	1 1/4% Cr 1/2% Mo

Check the dimension of AS P11 Bush Hex Pipe in Jawa Timur, UNS K11597 High Pressure Pipe Price, Alloy Steel Grade P11 Pipe stockist

Alloy Steel Grade P11 Pipe Price List in Indonesia

Size in Inch	MSL Make	ISMT make	JSL Make
1/2 Inch	4,263.70	4,256.00	4,272
3/4 Inch	4,044.10	4,035.76	4,050.47
1 Inch	3,898.06	3,885.71	3,900.41
1.25 Inch	3,851.94	3,846.59	3,869.29
1.5 Inch	3,751.00	3,743.65	3,755.35

Check Weight Chart for In Stock Alloy Steel Gr.P11 Pipes, Alloy Steel P11 Hexagonal Pipe Sizes, Chrome Moly Pipe P11 Available

AS P11 Bush Hex Pipe Standard Weight Chart

Size Chart NPS	Pipe Outside Diameter	Wall Chart Thickness	Pipe inside Diameter	Weight Chart per Foot	Standard to XXHY	Schedule Chart Pipe #	Section Modulus	Gallon Capacity as Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809
