Zirconium Rod in Indonesia

Manufacturer of UNS R60702 Round Bar and UNS R60705 Zirconium Bar in India

Zirconium Rod consists of zirconium metal, available in various grades, including commercially pure options. Piping Material offers a wide range of dimensions and grades for these rods. Renowned for its exceptional corrosion resistance, the oxide layer on the surface provides protection against acids and alkalis, barring hydrofluoric acid. The UNS R60702 Round Bar is extensively used in chemical and petrochemical sectors due to its superior corrosion resistance.

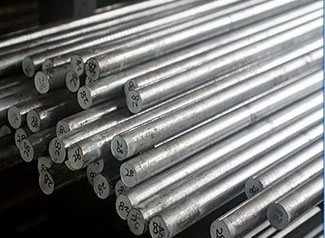

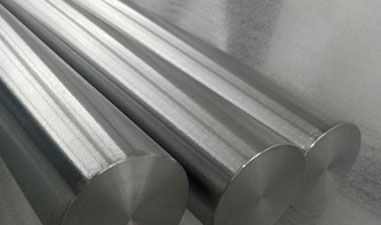

Zirconium Rod

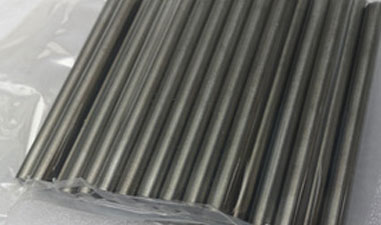

UNS R60702 Round Bar

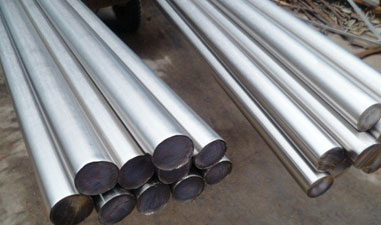

UNS R60705 Zirconium Bar

Buy ASME SB-550 Black Zirconium Round Bar at Competitive Prices, Purchase SGS Certified Zirconium 702 Round Bars with 2B Surface Finish from Factory

The UNS R60705 Zirconium Rod maintains its integrity due to its resistant oxide layer. This silvery metal boasts a remarkably high melting point of 1852 degrees Celsius. Its exceptional temperature and corrosion resistance make it ideal for various applications, including crucibles, ceramics, abrasives, and bricks. Zirconium oxide, also known as zirconia, serves as an opacifier in enamels and pigments.

Table of Contents

• UNS R60702 / 60705 Round Bar Specification Format
• Weight Chart Of ASTM B550/ Sb-550 Bar
• Zirconium Round Bar Grade Specification
• Black Zirconium Round Bar Size In Inch
• Chemical Properties of Zirconium 702 Round Bars
• Mechanical chart of ASTM B550 Zirconium Welding Rod
• List Of Zirconium Copper Rod Types
• ASME SB 493 Zirconium Bar Stock Tolerance Chart
• Zirconium Alloy Bright Bars Price per kg

The ASME SB-550 Black Zirconium Round Bar is available in various finishes and grades. The extraction of zirconium typically includes hafnium due to their similar chemical properties, with hafnium making up 4-5% of the composition. Zirconium 702 Round Bars are suitable for high temperature and high strength applications with impurities, while pure zirconium is used in nuclear applications. We offer a range of zirconium rods, including the ASTM B550 Zirconium Welding Rod. Contact us for further details and pricing.

UNS R60702 / 60705 Round Bar Specification Format

Item Name	Zirconium Rod
Material	R60702, R60705
Size	5.0mm diameter x L
Specification	ASTM B550/550M-07
Surface	Turning, Grinding

Discover top-quality Zirconium Welding Rods and Copper Rods in Indonesia, including Hot Rolled and Cold Drawn ASTM B550 options. Check out the ASME SB 493 Zirconium Bar Stock Weight Chart and explore the dimensions of Zirconium Alloy Bright Bars.

Weight Chart Of ASTM B550/ Sb-550 Bar

Round Bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3	0.017	0.055	20	0.753	2.470	3"	10.900	35.762
1/8"	0.019	0.062	22	0.908	2.979	3-1/4"	12.800	41.996
5/32"	0.029	0.095	7/8"	0.926	3.038	3-1/2"	14.850	48.772
4	0.030	0.098	24	1.080	3.543	3-3/4"	17.001	55.780
3/16"	0.043	0.141	25	1.180	3.871	4"	19.306	63.340
5	0.047	0.154	1"	1.210	3.970	4-1/4"	21.908	72.249
7/32"	0.058	0.190	26	1.271	4.170	4-1/2"	24.4487	80.340
6	0.068	0.223	27	1.368	4.490	4-3/4"	27.366	90.249
1/4"	0.076	0.249	1-1/8"	1.534	5.033	5"	30.461	99.940
7	0.091	0.298	30	1.691	5.548	5-1/2"	36.690	121.000
5/16"	0.118	0.387	1-1/4"	1.924	6.349	6"	43.860	143.900
8	0.120	0.398	32	1.894	6.314	6-1/2"	51.093	167.630
9	0.152	0.498	1-3/8"	2.303	7.550	7"	59.432	196.000
3/8"	0.170	0.557	35	2.390	7.553	7-1/2"	68.226	225.000
10	0.189	0.620	36	2.438	7.999	8"	77.586	254.55
11	0.228	0.748	38	2.792	8.903	10"	121.048	397.140
7/16"	0.232	0.761	1-1/2"	2.715	8.951
12	0.271	0.889	40	3.009	9.872
1/2"	0.303	0.994	1-5/8"	3.200	10.449
13	0.318	1.043	1-3/4"	3.712	12.179
14	0.368	1.207	45	3.807	12.555
9/16"	0.383	1.256	1-7/8"	4.260	13.977
15	0.424	1.391	48	4.330	14.205
5/8"	0.473	1.551	50	4.698	15.414
16	0.481	1.578	2"	4.848	15.906
17	0.543	1.791	2-1/8"	5.475	17.963
11/16"	0.573	1.880	2-1/4"	6.135	20.128
18	0.610	2.001	60	6.768	22.205
3/4"	0.682	2.237	2-3/8"	6.838	22.435
			2-1/2"	7.576	24.856
			2-5/8"	8.354	27.409
			2-3/4"	9.169	30.083

Zirconium Round Bar Grade Specification

• ZR 702 (R60702)
• ZR 704 (R60704)
• ZR 705 (R60705)

Black Zirconium Round Bar Size In Inch

Type	SIZES in milimeter	SIZES in inches	Tolerance
Peeled and Polished	40.00 - 150.00	1.50 - 6.00	h11, h11-DIN 1013
Cold Drawn and Polish	3.00 to 75.00	1/8 to3.00	h8 to h11
Cold Drawn and Ground	10.00 to 75.00	5/6 to 2.50	h8 to h11
Peeled nd Ground	20.00 - 50.00	3/4 - 2.00	h9 to h11

Standard lengths of 2000 mm up to 6000 mm.

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

Chemical Properties of Zirconium 702 Round Bars

Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	O	Nb
R60702	99.2%	<4.5%	<0.20%	-	<0.005%	<0.015%	<0.030%	<0.15%	-
R60704	97.5%	<4.5%	0.2-0.4%	1.0-2.0%	<0.005%	<0.015%	<0.030%	<0.16%	-
R60705	95.5%	<4.5%	<0.2%	-	<0.005%	<0.015%	<0.050%	<0.16%	2.0-3.0%

Mechanical chart of ASTM B550 Zirconium Welding Rod

Molecular Weight	91.22
Appearance	White
Melting Point	1852 °C
Boiling Point	3580 °C
Density	6506 kg/m3
Solubility in H2O	N/A
Electrical Resistivity	40.0 microhm-cm @ 20 oC °C
Electronegativity	1.4 Paulings
Heat of Fusion	5.50 Cal/gm mole
Heat of Vaporization	120 K-Cal/gm atom at 4377 °C
Poisson's Ratio	0.34
Specific Heat	0.0671 Cal/g/K @ 25 oC °C
Tensile Strength	230 MPa
Thermal Conductivity	0.227 W/cm/K @ 298.2 K
Thermal Expansion	(25 °C) 5.7 µm·m-1·K-1
Vickers Hardness	903 MPa
Young's Modulus	88 GPa

List Of Zirconium Copper Rod Types

Zirconium Rod, Diameter: 2 inch

100mm Chromium Zirconium Rod

7mm to 200 mm C18150 Copper Chromium Zirconium Rod

Round C18150 Rods, Diameter 6mm - 150mm

Zirconium Copper Rod 8mm to 20mm

20 inch Zirconium Round Bar

Explore Global Sales Network for ASTM B493 Cold Drawn Round Bar in Jawa Timur, Certified UNS R60702 Polished Bar Tolerance and Hollow Bar of Zirconium Alloy 702 Materials

ASME SB 493 Zirconium Bar Stock Tolerance Chart

Tolerances for UNS R60702 Round Bar
Shape / Section	Size, diameter or width across flats	Permitted variation
	milimeter	milimeter
Round	≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100	+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140
Flat (thickness)	< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80	+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350
Flat (width)	< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320	+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00
Square and hexagon	≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105	+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250

Tolerances of Turned UNS R60705 ZR Bar (BS 970-3)

Turned UNS R60705 Zirconium Bar Tolerances
Zirconium Rod diameter and sizes	Permitted variation
milimeter	milimeter
≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400	+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250

Tolerances of Precision ZR Rod (BS 970-3)

Precision ASME SB-550 Black ZR Round Bar Tolerances
Section	Size, diameter	Permitted overall variation
		Class A	Class B	Class C
	mm	mm	mm	mm
Round	≧ 6 <75	0.05	0.025	0.013

Tolerance of ZR 702 Round Bar (BS EN ISO 286-2 )

Cold Drawn Hot Rolled /Cold Drawn ASTM B550 Zirconium Welding Rod Tolerance ISO “H” Series in MM
NOMINAL SIZE	h5	h6	h7	h8	h9	H10	H11	h12
DIAMETER milimete
~ to 3	+0.004/0	+0.006/0	+0.01/0	+0.014/0	+0.025/0	+0.04/0	+0.06/0	+0.1/0
3 to 6	+0.005/0	+0.008/0	+0.012/0	+0.018/0	+0.03/0	+0.048/0	+0.075/0	+0.12/0
6 to 10	+0.006/0	+0.009/0	+0.015/0	+0.022/0	+0.036/0	+0.058/0	+0.09/0	+0.15/0
10 to 18	+0.008/0	+0.011/0	+0.018/0	+0.027/0	+0.043/0	+0.07/0	+0.11/0	+0.18/0
18 to 30	+0.009/0	+0.013/0	+0.021/0	+0.033/0	+0.052/0	+0.084/0	+0.13/0	+0.21/0
30 to 50	+0.011/0	+0.016/0	+0.025/0	+0.039/0	+0.062/0	+0.1/0	+0.16/0	+0.25/0
50 to 80	+0.013/0	+0.019/0	+0.03/0	+0.046/0	+0.074/0	+0.12/0	+0.19/0	+0.3/0
80 to 120	+0.015/0	+0.022/0	+0.035/0	+0.054/0	+0.087/0	+0.14/0	+0.22/0	+0.35/0
120 to 180	+0.018/0	+0.025/0	+0.04/0	+0.063/0	+0.1/0	+0.16/0	+0.25/0	+0.4/0
180 to 250	+0.02/0	+0.029/0	+0.046/0	+0.072/0	+0.115/0	+0.185/0	+0.29/0	+0.46/0

Accept all Large Orders of Copper Chromium Zirconium Alloy in Indonesia, Check Copper Zirconium Alloy Square Bar, Zirconium Steel Threaded Bar. View available sizes of ASTM B493 R60702 Flat Bar.

Zirconium Alloy Bright Bar Price per kg

Zirconium Rod Price List	Price in Indonesia
UNS R60702 Round Bar Price	$50.00-$70.00/ Kilogram
UNS R60705 Zirconium Bar Prices	$25.00-$45.00/ Piece
Zirconium 702 Round Bar Price Per Kg	$70.00-$85.00/ Kilogram
Hot Rolled /Cold Drawn ASTM B550 Zirconium Welding Rod Price	$65.00-$80.00/ Kilogram
