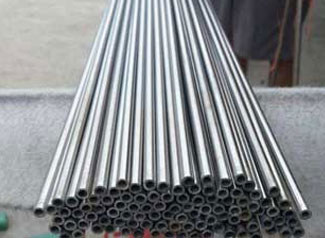

Stainless Steel 304 Pipe

Manufacturer of SS 304 Welded Pipe and ASTM A312 TP304 Seamless Pipe

Stainless Steel 304 Pipe is crafted from an austenitic stainless steel blend with 18% chromium and 8% nickel. Piping Material stands out as a top provider of this pipe, offering various types and sizes. Specifications include A312 and A358 in the ASTM guidelines, with dimensions following ASTM, ASME, and API standards. Options include welded, SS 304, and electric fusion welded pipes.

ASTM A312 TP304 Seamless Pipe

SS 304 Welded Pipe

Contact Us for ASME SA312 SS 304 Round Pipe Weight Chart, SS 304 ERW Pipe Size Chart, and 304 Stainless Steel Exhaust Pipe

The Stainless Steel 304 Pipe comes in various sizes, from Â½ inches to 16 inches for seamless pipes, Â½ inches to 24 inches for ERW pipes, and 6 inches to 100 inches for EFW pipes. All pipes range from 1/8 inches to 30 inches. The Stainless Steel 304 Welded Pipe is created by welding a narrow sheet or strip and is available in seamless, welded, or LSAW forms, including round, square, rectangular, and hydraulic variations.

The ASTM A312 TP304 Pipe is ideal for high-pressure, high-temperature use due to its impressive 870 degrees Celsius operational temperature and strength. With a minimum yield strength of 205MPa and minimum tensile strength of 515MPa, the SS UNS S30400 ERW Pipe is perfect for various applications like commercial, industrial, domestic, and corrosive services. The ASME SA312 Grade 304 Welded Pipe stands out as a cost-effective option in the stainless steel pipe market, being widely used globally. For further details on the 304 Stainless Steel Pipe and pricing inquiries, please reach out to us.

ASTM A312 TP304 Seamless Pipe Material Specification

Specifications	ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions	ASTM, ASME and API
SS 304 Pipes	1/2″ NB – 16″ NB
ERW 304 Pipes	1/2″ NB – 24″ NB
EFW 304 Pipes	6″ NB – 100″ NB
Size	1/8″NB TO 30″NB IN
Specialized in	Large Diameter Size
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type	Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form	Round, Square, Rectangular, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

Schedule Chart of SS 304 Welded Pipe

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

304 stainless steel Exhaust Pipe Size Chart In Mm

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

ASTM A312 SS 304 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

SS 304 Erw Tube Size Chart

Wall Thickness	Stainless Steel 304 Tube Sizes ( O.D.) Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Surface Finish of SS 304 Seamless Pipe

Surface Finish		Internal Surface(ID)		Exterbal Surface(OD)
		Roughness Average(RA)		Roughness Average(RA)
		μ inch	μm	μ inch	μm
AP	Annealed & Pickled	Not defined	Not defined	40 or Not defined	1.0 or Not defined
BA	Beight Annealed	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
MP	Mechanical Polish	40,32,25,20	1.0,0.8,0.6,0.5	32	0.8
EP	Electro Polish	15,10,7,5	0.38,0.25,0.20;0.13	32	0.8

ASME SA312 SS 304 Round Pipe Chemical Structure

Element	SS 304
Ni	8.0 – 11.0
C	0.08
Mn	2.0 max
P	0.045 max
S	0.03 max
Si	1.0 max
Cr	18.0 – 20.0

Schedule 10 304 Stainless Steel Pipe Properties Table

Element	SS 304
Density	8.0 g/cm3
Melting Point	1400 °C (2550 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %
Elongation	35 %

SS DIN 1.4301 Hexagonal Pipe Physical Composition

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
304	8000	193	17.2	17.8	18.4	16.2	21.5	500	720

Basic Types Of SS UNS S30400 Pipes

ASTM A358 TP304H ERW Pipe, BE, 16 X 1/2 Inch

304 Stainless Steel Seamless Bare Pipe

SS 304 Pipe, ERW , Square

ASTM A213 TP304 Steel Pipe, SCH 10S, PE

SS ERW Pipe, ASTM A312 TP304, SCH 10S, 8 Inch

ASTM A312 TP 304H Pipe, SCH 40S, 10 Inch

ASTM A213 TP304 Seamless Pipe, OD 26.7 MM, 1.2 MM, Length 7300 MM

3x2 25mm Rectangular 304 Stainless Steel Pipe

20mm diameter chrome plated stainless steel pipe 304

10MM 304 Stainless Steel Round Pipe

8 Inch Seamless 304 Stainless Steel Pipe

Seamless Stainless Steel Pipe, ASTM A312 TP304

Stainless Steel DIN 1.4307 Clad Pipe Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 304	1.4301	S30400	SUS 304	Z7CN18‐09	304S31	08Х18Н10	X5CrNi18-10

SS DIN 1.4301 Hexagonal Pipe Pressure Rating and Stainless Steel UNS S30400 Pipes Schedule 10, Stainless Steel DIN 1.4307 Clad Pipe

304 SS Schedule 40 Pipe Standard Weight Chart

28	.028" Thick
035	.035" Thick
039	.039" Thick
049	.049" Thick
065	.065" Thick
083	.083" Thick
109	.109" Thick

Check out the sale on ASTM A312 SS F304 Rectangular Pipe with a thickness of 9.0mm, made from 304 SS Schedule 40 Pipe and SS UNS S30400 Square Pipe.

Pressure Rating Table of SS UNS S30400 Square Pipe

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Purchase the best price in Indonesia for 304 Stainless Steel Tubes, Stainless Steel 304 Pipe, and ANSI B16.5 SS 304 Round Pipe

ASTM A312 SS F304 Rectangular Pipe Price List in Indonesia

Price of 304 Stainless Steel Pipes manufacturer in Indonesia	304 Stainless Steel Pipes Price in Indonesia (INR)	304 SS Pipes Price in UAE Dirham
Stainless Steel Seamless Pipes (Cold Finished) Grade - 304	324 INR	16.56 UAE Dirham
Stainless Steel Welded Pipes Grade 304	178 INR	9.10 UAE Dirham
Stainless Steel Pipes (Cold Finished) Grade - 304	280 INR	14.31 UAE Dirham

Huge Stock Of Stainless Steel 304 Tube

SS 304 EFW Pipes	SS 304 Large Pipes
Stainless Steel 304 Welded Pipes	ASTM A312 tp304 Thick Wall Pipes
304 SS CDW Pipes	Cold Drawn ASTM A312 tp304 Seamless Pipes
Stainless Steel 304 Seamless Pipes	4 inch Stainless Steel 304 Pipes
ASTM A312 tp304 ERW Pipe	Schedule 5S ASTM A213 Stainless Steel 304 Pipe
304 Stainless Steel Pipes	Schedule 40 TP304 SS Pipes
ASME SA213 TP 304 Stainless Steel Fabricated Pipes	SS WERKSTOFF NR. 1.4301 Clad Pipes
SA213 tp304 Cold Drawn Pipes	ASME SA213 TP 304 Stainless Steel Pipes material
SS UNS S30400 Bush Hex Pipes	Cold Drawn 304 Stainless Steel Welded Pipes
GOST 08Х18Н10 Stainless steel Rectangular Pipes	304 Stainless Steel Capillary Pipe
SS WERKSTOFF NR. 1.4301 Beveled End Pipes	304 Stainless Steel Rectangle Pipes
Capillary 304 Stainless Steel Thin Pipes	SS UNS S30400 Electropolished Pipes

Tolerance Chart of 304 Stainless Steel 304 Tube

Stainless Steel 304 Pipe OD	ASTM A312 TP304 Pipe Tolerance
4 to 35mm	+/- 0.08mm
35 to 38mm	+/- 0.15mm
38 to 60mm	+/- 0.20mm
60 and above	+/- 0.25mm

Quick RFQ

Email

Sales Representative

Stainless Steel 304 Pipe in Indonesia
