Stainless Steel 316L Flanges in Indonesia
Check the dimension of SS 316L Slip On Flange, A182 F316L Plate Flange
Stainless Steel 316L Flanges are a popular choice, being a low-carbon version of the 316 flanges. Widely used globally, they are among the top choices alongside the 304, 304L, and 316 flanges. Piping Material offers a range of these flanges in various sizes, pressure ratings, and configurations to meet diverse needs. Different standards and specifications cover a variety of flange types available.

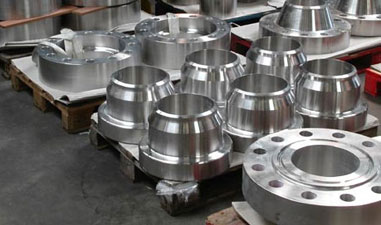

Stainless Steel 316L Flange

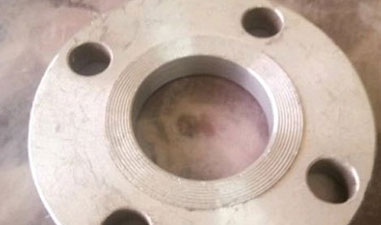

A182 F316L Plate Flange

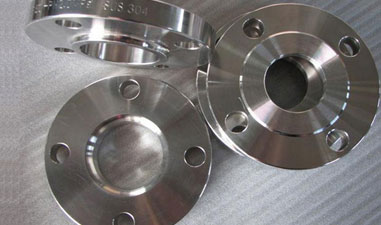

SS 316L Slip On Flange
Fastest Delivery Guaranteed for SS WERKSTOFF NR. 1.4404 Socket Weld Flanges, 316L Stainless Steel WNRF Flanges, and Stainless Steel 316L Ring Type Joint Flanges
The A182 F316L Plate Flange, part of A182 specification, is designed for high-temperature services, with a maximum operating temperature of 870 degrees Celsius. SS 316L Slip On Flange Dimensions vary for pipe connection flexibility, ranging from ½ to 48 inches in bore size.
Table of Contents
- A182 F316L Plate Flange Specification Table
- Sizes of SS 316L Slip On Flange
- DIN 1.4404 Socket Weld Flanges Chemical Composition
- Mechanical Behaviour of 316L Stainless Steel WNRF Flanges
- What Are The Different Types Of SS 316L RTJ Flanges?
- 316L SS Flanges Material Equivalent
- SS UNS S31603 Orifice Flange Weight In Kg
- Dimensions Schedule of ASTM A182 F316L Weld Neck Flange
- Price of ANSI B16.5 SS F316L RTJ Flange
- Pressure Rating Chart of 150# ANSI SS 316L Blind Flanges

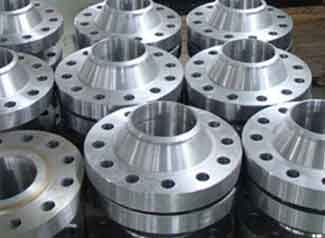

The Stainless Steel 316L Flanges contain molybdenum, enhancing corrosion resistance over 304 flanges. The socket weld design securely holds pipes in place, ideal for smaller sizes up to 4 inches. The UNS S31603 Stainless Steel WNRF Flanges are also available, known for reducing localized corrosion. Weld neck raised face flanges provide extra connection surface, while the ANSI B16.5 SS F316 Lap Joint Flange offers a unique lap joint for pipe connection. Contact us for a wide range of stainless steel flanges in various sizes and grades.
A182 F316L Plate Flange Specification Table
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards |
ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard Flange | ANSI, ASME, BS, DIN, EN etc. |
Price List for DN15-1200 3000lbs Forged 316L SS Flanges, Weight Chart for SS UNS S31603 Orifice Flange, CNC Machining of ASTM A182 SS F316L Long Weld Neck Flange
Sizes of SS 316L Slip On Flange
| Nominal Pipe Size | Outside Diameter of Flange | Thickness of Flange | Diameter of Raised Face | Diameter of Hub at Base | Length Thru Hub | Diameter or Bore | Diameter of Hub at Bevel | Radius of Fillet | Depth of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding Neck | Slip-On Threaded Socket | Lap Joint | Slip-on Socket | Lap Joint | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.20 | 18.00 | 1/2 | 1-15/16 |
| 20 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | 20.20 | 20.25 | 20.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
SS WERKSTOFF NR. 1.4404 Socket Weld Flanges Chemical Material Compositio
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Mechanical Behaviour of 316L Stainless Steel WNRF Flanges
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
What Are The Different Types Of SS 316L RTJ Flanges?
ASTM A182 F316L Spacer Ring Blind Flange, Class 300, 2 Inch
Spacer Ring Blind Flange, PDO, ASTM A182 F316L, 300 LB, 6 Inch
Stainless Steel Slip On Flange, A182 F316/F316L, 18 Inch, CL150, RF
Socket Weld Flange, 2 1/2 Inch, 150#, A182 F316L
SS Forged WN Flange, ASTM A182 F316L, 2 1/2 Inch, SCH 80S, B16.5
ASTM A182 F316L SW Flanges, Class 150, 2 Inch, SCH 40, RF
ASTM A182 F316L Slip-on Flange, ANSI B16.5, Class 150, 12 Inch, RF
Dual Rated ASTM A182 F316L Blind Flange, RF, 150LB
A182 F316L WN Flange, 10 Inch, RF, 600 LB, SCH80S
ASTM A182 F316L Weld Neck Flange, ANSI B16.5, Class 900, 14 Inch
A182 F316L Spade Flanges & Spacer Flanges, 300LB, 1 1/2
SS Orifice Flange, A182 F316L, 3 In, Class 300, SCH 40, Raised Face
316L SS Flanges Material Equivalent
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316L | 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS UNS S31603 Orifice Flange Weight In Kg
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
150# ANSI SS 316L Blind Flanges, ASME SA182 SS 316L Weld Neck Flange. DN25 DN40 DN80 DN100 DN150 DN600 SS UNS S31603 Pipe Flanges
Dimensions Schedule of ASTM A182 F316L Weld Neck Flange
Dimensions: ANSI/ASME B16.5, B16.28, MSS-SP-43.
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
316L stainless steel Forged Flanges, SS Grade F316L Threaded Flanges, 316L Stainless Steel Spectacle Blind Flanges, Stock of SS DIN 1.4404 Lap Joint Flange in Indonesia.
Price of ANSI B16.5 SS F316L RTJ Flange
| ASTM A182 Gr F316L Pipe Flange Price Per Piece in Indonesia | ASTM A182 Grade F316L Flange Price in INR | ASTM A182 Grade F316L Flange Price in UAE Dirham |
| ASME SA182 F316L Pipe Flanges Cost in Jawa Timur | Rs. 1417.44 | UAE Dirham 73.49 |
| Cost of ASTM A182 316L SS Blind Flanges in Jawa Timur | Rs. 2480.51 | UAE Dirham 128.60 |
| ASTM A182 Grade F316L SO Flanges Price in Indonesia | Rs. 1771.79 | UAE Dirham 91.86 |
| ASTM A182 Gr F316L Flanges Price in Indonesia | Rs. 850.46 | UAE Dirham 44.09 |
| Stainless Steel ASTM A182 F316L Plate Flanges Price List | Rs. 4252.31 | UAE Dirham 220.46 |
Wide Range of 316L Stainless Steel Flanges
| Stainless Steel 316L Flanges | Stainless Steel 316L EN 1092-1 Flanges |
| SS 316L Weld Neck Flanges | SS 316L Socket weld Flanges |
| SS 316L Long Weld Neck Flanges | Steel 316L Threaded Flanges |
| Stainless Steel SUS 316L Reducing Flanges | SS 316L Ring Type Joint Flanges |
| Stainless Steel DIN 1.4435 Orifice Flange | Stainless Steel BS 316S11 Spectacle Blind Flanges |
| Stainless Steel 316L BS 4504 Flanges | Stainless Steel 316L Forged Flanges |
| Stainless Steel UNS S31603 Flanges | Stainless Steel 316L Slip on Flanges |
| SS 316L Flat Flange | ANSI 316L Stainless Steel Blind Flange |
| Stainless Steel 316L WNRF Flange | Stainless 316L SORF Flanges |
| A182 SS 316L Square Flanges | ASME SA182M SS 316L SWRF Flange |
Pressure Rating Chart of 150# ANSI SS 316L Blind Flanges
| ANSI/ASME B16.34 | PRESSURE RATING CHART | ||||||
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
