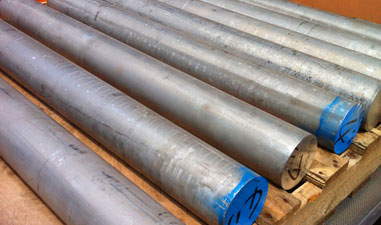

Aluminium 6063 Round Bar in Indonesia

Buy Large Quantity of ASTM B221 Flat Bar at the Lowest Price in Indonesia - 6063 T6 Rod

Aluminium 6063 Round Bar is composed of an aluminum alloy containing copper, silicon, iron, manganese, magnesium, zinc, chromium, and titanium. This material offers heat resistance, oxidation resistance, and corrosion resistance. It is known for its strength, high tensile, and yield strength.

Aluminium 6063 Round Bar

6063 T6 Rod

ASTM B221 Flat Bar

Check 6063 Aluminium Flat Bar Dimension in Indonesia, View 6063-T6 Aluminium Rod and Bar

Aluminium 6063 Round Bar The 6063 T6 aluminium round bar has a minimum tensile strength of 27ksi and a minimum yield strength of 21ksi. It is ideal for marine components, bridges, cranes, railroad cars, trusses, furniture, tank fittings, and electric appliances. This durable and corrosion-resistant material also boasts excellent thermal and electric conductivity, making it versatile for various applications. Its impeccable finishes add a touch of sophistication.

Table of Contents

• 6063 T6 Rod Specification Format
• Chemical Properties of ASTM B221 Flat Bar
• Mechanical And Physical Properties of 6063 Aluminium Rod
• List Of 6063-T6 Aluminium Bar Types
• Equivalent Of 6063 Aluminium Flat Bar
• Weight Chart Of 6063 Aluminium Square Bar
• Tolerance Chart of 6063 Aluminium T Bar
• ASTM B211 Alloy 6063 Cold Rolled Round bar Size In Inch
• Aluminium 6063 Black Bars Price per kg

The Aluminium 6063 Round Bar, compliant with ASTM B221 standards, offers durability and precision. Available in various tempers and shapes, it boasts an outer diameter ranging from 0.1mm to 600mm and lengths from 1m to 12m. Choose from bright, polish, or black finishes for your specific application needs. Contact us for pricing and more details on our range of products.

6063 T6 Rod Specification Format

Specifications : ASTM B221 / ASME SB221

Length : 1 to 6 Meters, Custom Cut Lengths

Finish : Bright, Polish & Black

Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI

Range : 3.17 MM TO 350 MM DIA

Diameter : 25mm to 152mm

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc.

Condition : Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished

Bulk Stock of ASTM B211 Aluminium Alloy 6063 Cold Rolled Round Bar and 6063 Aluminium T Bar Available at Our Stockyard in Indonesia

Chemical Properties of ASTM B221 Flat Bar

Grade	Element
	Al	Si	Fe	Cu	Mn	Cr	Mg	Ti	Zn
6063	Bal	0.40-0.8	0.7	0.15-0.40	0.15	0.04-0.35	0.8-1.2	0.15	0.25

Mechanical And Physical Properties of 6063 Aluminium Rod

Properties	Metric
Yeild Strength	40 Ksi
Tensile Strength	45 Ksi
Hardness Brinell	95 BHN
Elongation	17 %

List Of 6063-T6 Aluminium Bar Types

6063-T5 6061-T6 Aluminium Billets Round Bars

6063 aluminium alloy bars OD4mm-OD600mm

size 6000 Series 6063 kn95 Round aluminium bars

60mm 6063 Aluminium Rod

Hot rolled 25mm 6063 Aluminium round bars

3-400 mm diameter 6063 Aluminium Rod

Equivalent Of 6063 Aluminium Flat Bar

UNS	EN	DIN, WNR	ISO	BS (OLD)	USA	WNR
A96063	AW-AlMg0,7Si EN AW-6063	AlMgSi0.5	AlMg0,7Si	HE9	AA6063	3.32206

Check ASME SB211 Aluminium Alloy 6063 Forged Bars Weight Chart at Factory Price from Manufacturers of 6063 Aluminium Hot Rolled Round Bars, UNS A96063 Bright Bars, and Polished Bars

Weight Chart Of 6063 Aluminium Square Bar

Round Bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3"	10.900	35.762
1/8"	0.019	0.062	22mm	0.908	2.979	3-1/4"	12.800	41.996
5/32"	0.029	0.095	7/8"	0.926	3.038	3-1/2"	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4"	17.001	55.780
3/16"	0.043	0.141	25mm	1.180	3.871	4"	19.306	63.340
5mm	0.047	0.154	1"	1.210	3.970	4-1/4"	21.908	72.249
7/32"	0.058	0.190	26mm	1.271	4.170	4-1/2"	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4"	27.366	90.249
1/4"	0.076	0.249	1-1/8"	1.534	5.033	5"	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2"	36.690	121.000
5/16"	0.118	0.387	1-1/4"	1.924	6.349	6"	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2"	51.093	167.630
9mm	0.152	0.498	1-3/8"	2.303	7.550	7"	59.432	196.000
3/8"	0.170	0.557	35mm	2.390	7.553	7-1/2"	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8"	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10"	121.048	397.140
7/16"	0.232	0.761	1-1/2"	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2"	0.303	0.994	1-5/8"	3.200	10.449
13mm	0.318	1.043	1-3/4"	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16"	0.383	1.256	1-7/8"	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8"	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2"	4.848	15.906
17mm	0.543	1.791	2-1/8"	5.475	17.963
11/16"	0.573	1.880	2-1/4"	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4"	0.682	2.237	2-3/8"	6.838	22.435
			2-1/2"	7.576	24.856
			2-5/8"	8.354	27.409
			2-3/4"	9.169	30.083

Tolerance Chart of 6063 Aluminium T Bar

Tolerances for 6063 T6 Rod
Shape / Section	Size, diameter or width across flats	Permitted variation
	milimeter	milimeter
Round	≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100	+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140
Flat (thickness)	< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80	+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350
Flat (width)	< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320	+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00
Square and hexagon	≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105	+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250

Tolerances of Turned ASTM B221 Flat Bar (BS 970-3)

Turned ASTM B221 Flat Bar Tolerances
Aluminium 6063 Round Bar diameter and sizes	Permitted variation
milimeter	milimeter
≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400	+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250

Tolerances of Precision Aluminium 6063 Round Bar (BS 970-3)

Precision 6063 Aluminium Rod Tolerances
Section	Size, diameter	Permitted overall variation
		Class A	Class B	Class C
	mm	mm	mm	mm
Round	≧ 6 <75	0.05	0.025	0.013

Tolerance of 6063-T6 Aluminium Bars (BS EN ISO 286-2 )

Cold Drawn 6063 Aluminium Flat Bars Tolerance ISO “H” Series in MM
NOMINAL SIZE	h5	h6	h7	h8	h9	H10	H11	h12
DIAMETER milimete
~ to 3	+0.004/0	+0.006/0	+0.01/0	+0.014/0	+0.025/0	+0.04/0	+0.06/0	+0.1/0
over 3 to 6	+0.005/0	+0.008/0	+0.012/0	+0.018/0	+0.03/0	+0.048/0	+0.075/0	+0.12/0
over 6 to 10	+0.006/0	+0.009/0	+0.015/0	+0.022/0	+0.036/0	+0.058/0	+0.09/0	+0.15/0
over 10 to 18	+0.008/0	+0.011/0	+0.018/0	+0.027/0	+0.043/0	+0.07/0	+0.11/0	+0.18/0
over 18 to 30	+0.009/0	+0.013/0	+0.021/0	+0.033/0	+0.052/0	+0.084/0	+0.13/0	+0.21/0
over 30 to 50	+0.011/0	+0.016/0	+0.025/0	+0.039/0	+0.062/0	+0.1/0	+0.16/0	+0.25/0
over 50 to 80	+0.013/0	+0.019/0	+0.03/0	+0.046/0	+0.074/0	+0.12/0	+0.19/0	+0.3/0
over 80 to 120	+0.015/0	+0.022/0	+0.035/0	+0.054/0	+0.087/0	+0.14/0	+0.22/0	+0.35/0
over 120 to 180	+0.018/0	+0.025/0	+0.04/0	+0.063/0	+0.1/0	+0.16/0	+0.25/0	+0.4/0
over 180 to 250	+0.02/0	+0.029/0	+0.046/0	+0.072/0	+0.115/0	+0.185/0	+0.29/0	+0.46/0

We Have Dedicated AMS 4156 Aluminium 6063 Hex Bars, B211 Aluminium Alloy 6063 Hollow Rods, Alloy 6063 Triangular Bars, 6063 Alloy Rectangular Bar Sizes

ASTM B211 Alloy 6063 Cold Rolled Round bars Size In Inch

Manufacture Method: Extruded

Temper: T52

Description	Diameter	Shape	Specification
6063T52 AL EXT BAR .1875 X .7500	0.1875	BAR RECTANGULAR	ASTM B221
6063T52 AL EXT BAR .1875 X 1.000	0.1875	BAR RECTANGULAR	ASTM B221
6063T52 EXT B221 1.00 DIA	1.0000	ROD/BAR ROUND	ASTM B221
6063T52 EXT BAR B221 .500 X .750	0.5000	BAR RECTANGULAR	ASTM B221
6063T5 EXT B221 .3750 DIA	0.3750	ROD/BAR ROUND	ASTM B221 AMS-QQ-A-200/9
6063T52 AL EXT BAR .2500 X 2.000	0.2500	BAR RECTANGULAR	ASTM B221
6063T52 AL EXT BARS .1250 X 1.250	0.1250	BAR RECTANGULAR	ASTM B221
6063T52 AL EXT BARS .1250 X .500	0.1250	BAR RECTANGULAR	ASTM B221
6063T52 AL EXT BARS .1250 X 1.500	0.1250	BAR RECTANGULAR	ASTM B221
6063T52 AL EXT BARS .1250 X 1.000	0.1250	BAR RECTANGULAR	ASTM B221

Aluminium 6063 Black Bars Price per kg

Aluminium 6063 Round Bars Price List	Price in Indonesia	Price in UAE
6063 T6 Rod Price	Rs. $1.00-$4.00/ Kilogram	$ 0.049 - 0.19
ASTM B221 Flat Bars Prices	Rs. $3.10-$3.90/ Kilogram	$ 0.15 - 0.19
6063-T6 Aluminium Bars Price Per Kg	Rs. $2,800.00-$3,000.00/ Ton	$ 136.10 - 145.82
6063 Aluminium Flat Bars Price	Rs. $1,707.00-$2,134.00/ Kilogram	$82.97 - 103.73
