Molybdenum Plate in Indonesia

Highly Reliable and Trusted ASTM B386 Mu0079 Material, TZM Mo1 Sheet, and TZM Mo2 Coils

Molybdenum Plate consists of over 99.95% pure molybdenum, offering a density of 10.2 grams per cubic centimeter, nearly three times that of typical aluminum plates. Piping Material is a top supplier of Molybdenum Plate.

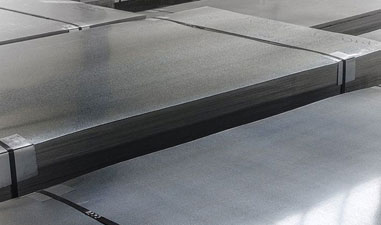

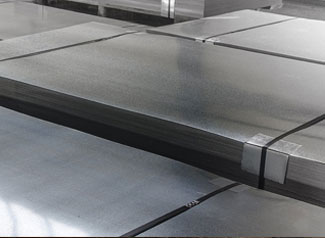

Molybdenum Plate

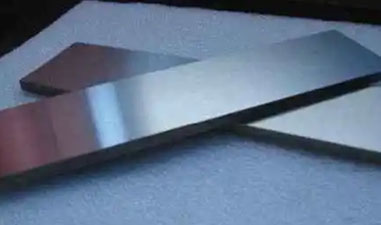

TZM Mo1 Sheet

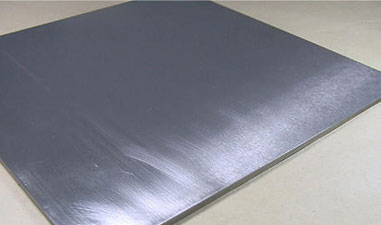

ASTM B386 Mu0079 material

Check Molybdenum Sheet Price in Jawa Timur, Indonesia - Leading ASME SB386 Molybdenum Foil Supplier

Molybdenum Plate Specifications: Meet ASTM B386 standards with thickness ranging from 0.09 to 3 inches for various applications. Length varies from 42 to 114 inches based on width and thickness, while width typically falls between 24 to 30 inches. Contains elements like lead, bismuth, tin, cadmium, iron, nickel, aluminum, silicon, magnesium, phosphorus, carbon, oxygen, and nitrogen in different classes.

Table of Contents

• TZM Mo1 Sheet Spec Chart
• TZM Mo2 Coils Thickness
• ASTM B386 Mu0079 material Chemical Composition Chart
• ASME SB386 Molybdenum Foil Mechanical Strength Table
• Most Common Types Of Molybdenum Sheet
• Sizes Of Molybdenum Alloy Steel Strip
• Molybdenum Alloy Plate Physical properties
• Polished Molybdenum Plate Price List

The TZM Molybdenum Plates contain no lead, bismuth, tin, or cadmium. With a melting point of 2623 degrees Celsius, molybdenum has one of the highest melting points on the periodic table. This makes it a suitable alternative to tungsten in various applications. Prices for Molybdenum Alloy Steel Strips, plates, coils, and foils vary depending on the material's purity. Contact us for information on different grades and pricing.

TZM Mo1 Sheet Spec Chart

Specification	molydenium sheet/plates
Density	10.2g/cm3
Standard	ASTM B386, GB/T3876
Grade	Mo1
Material	99.95% min. Mo99.95% min. Mo
Melting Point	2610 Centigrade
Using temperature	1400 Centigrade max.
Size	Thick 0.025mm min. x W600mm max. x L3000mm max.
Processing	Cold rolled, Stress relief annealing, Hot rolled
Colour	Black or bright

Check Weight Chart or Thickness of Reliable Supplier's Molybdenum Alloy Steel Strip and Plate, Including Polished Molybdenum Plate

TZM Mo2 Coils Thickness

Thickness	Max. Width	Max. Length	Thickness Tolerance
0.090" ~ 0.200"	30"	114"	+/- 0.008"
0.200" ~ 0.250"	24"	84"	+/- 2%
0.250" ~ 0.500"	24"	42"	+/- 2%
>0.500"	24"	+/- 2%

ASTM B386 Mu0079 material Chemical Composition Chart

Brand		Mo-1	Mo-2	Mo-3
Mo(%)		99.95	99.95	99.95
Other Element Content(%) ≤	Pb	—	—	0.001
	Bi	—	—	0.001
	Sn	—	—	0.001
	Sd	—	—	0.001
	Cd	—	—	0.001
	Fe	0.005	0.006	0.010
	Ni	0.002	0.003	0.005
	Al	0.002	0.002	0.005
	Si	0.003	0.003	0.010
	Ca	0.002	0.002	0.005
	Mg	0.001	0.002	0.003
	P	0.001	0.001	0.002
	C	0.005	0.008	0.010
	O	0.003	0.005	0.050
	N	0.001	0.003	-

ASME SB386 Molybdenum Foil Mechanical Strength Table

Tensile Strength	KSI (MPa)-RT	150 (1034)
	KSI (MPa)-500°C	75 (517)
	KSI (MPa)-1000°C	25 (172)
Elongation	% in 1.0".	12
Typical Hardness	HV10	>220
Modules of Elasticity	GPa	320

Most Common Types Of Molybdenum Sheet

ASTM B386 tzm molybdenum alloy foil

aisi grade 11-pvq a387-22-2 chromium molybdenum plates

99.95% Pure Molybdenum Sheet

1mm-50mm Molybdenum Plates/ Sheet

BS 1501 620B Chrome Moly Steel Plates, Thickness: 5-50 mm

Astm 1/4 Chrome Moly Plates, Thickness: 10-350 mm

In Indonesia, find a wide selection of Mo 99.95% Molybdenum Plate, Pure Mo1 Molybdenum Hot Rolled Plate, and Cold Rolling Molybdenum Sheet sizes

Sizes Of Molybdenum Alloy Steel Strip

Format	Size Inches “	Size MM
Foil	0.001	0.025
Foil	0.002	0.050
Foil	0.003	0.080
Foil	0.004	0.100
Foil	0.005	0.127
Foil / Sheet	0.006	0.150
Foil / Sheet	0.007	0.178
Foil / Sheet	0.008	0.200
Foil / Sheet	0.010	0.250
Sheet	0.015	0.381
Sheet	0.020	0.500
Sheet	0.025	0.635
Sheet	0.030	0.762
Sheet	0.039	1.000
Sheet	0.040	1.016
Sheet	0.050	1.270
Sheet	0.059	1.500
Sheet	0.060	1.524
Sheet	0.079	2.000
Sheet	0.080	2.032
Sheet	0.090	2.286
Sheet	0.098	2.500
Sheet	0.100	2.540
Sheet	0.118	3.000
Sheet	0.125	3.175
Sheet	0.150	3.810
Sheet	0.157	4.000
Sheet / Plate	0.187	4.763
Plate	0.197	5.000
Plate	0.200	5.080
Plate	0.250	6.350
Plate	0.270	6.858
Plates	0.300	7.620
Plates	0.313	7.938
Plate	0.375	9.525
Plates	0.394	10.000
Plate	0.410	10.414
Plate	0.500	12.700
Plates	0.591	15.000
Plate	0.625	15.875
Plate	0.750	19.050
Plate	0.787	20.000
Plate	1.000	25.400
Plate	1.125	28.575
Plate	1.187	30.150
Plate	1.250	31.750
Plate	1.375	34.925
Plate	1.500	38.100
Plate	1.750	44.450
Plate	2.000	50.800
Plate	2.500	63.500
Plate	3.000	76.201

Molybdenum Alloy Plate Physical properties

Density	lb/in3	0.37
gm/cm3	10.20
Melting Point	°F	4784
	°C	2620
Thermal Conductivity @20°C	W/m-K	142
Specific Heat	Cal/gm/°C	0.061
Coefficient of Linear Thermal Expansion	10-6(°F)-1	2.70
	10-6(°C)-1	4.90
Electrical Resistivity	Micro-ohm-cm	5.34
Recrystallization Temp.	°C	1100

Check Astm B386 Molybdenum Mo-La Plate Price List, Pure Molybdenum Disc Properties, View Mo Round Plate Specifications

Polished Molybdenum Plate Price List

Molybdenum Plates Price List	ASTM B386 Mu0079 material Per Unit (INR)
molybdenum copper alloy plates	$22.93-$25.24/ Piece
High pure Molybdenum sheet / plates	$50.00-$150.00/ Kilogram
cold rolling molybdenum sheet	$55.00-$69.00/ Kilogram
MoLa alloy sheet, TZM molybdenum alloy plates	$31.00-$56.00/ Kilogram

Ready Stock Available Of Pure Mo1 Molybdenum Hot Rolled Plate

Sheet Stock:
.003" x 12" x 36"	.020" x 12" x 36"	.060" x 12" x 36"
.005" x 12" x 36"	.025" x 12" x 36"	.070" x 12" x 36"
.010" x 12" x 36"	.030" x 12" x 36"	.090" x 12" x 36"
.012" x 12" x 36"	.040" x 12" x 36"	.100" x 12" x 36"
.015" x 12" x 36"	.050" x 12" x 36"	.125" x 12" x 36"
Plate Stock:
.187″ x 12″ x 36″	.500″ x 12″ x 36″	1″ x 12″ x 36″
.250″ x 12″ x 36″	.625″ x 12″ x 36″	1.25″ x 12″ x 36″
.375″ x 12″ x 36″	.750″ x 12″ x 36″
