Monel K500 Plate in Indonesia
Price of UNS N05500 Strip from Nickel Alloy K500 Sheet Suppliers in Jawa Timur, Indonesia
Monel K500 Plate is a nickel copper alloy with minimum 63% nickel and 28% copper, along with carbon, manganese, silicon, sulfur, and iron. Piping Material offers a variety of dimensions and types, including thicker plates, thinner sheets, coils, and strips. With a high melting point of 1350 degrees Celsius, this material is ideal for high temperature applications. The Monel K500 Sheet boasts high tensile and yield strength, as well as high density.

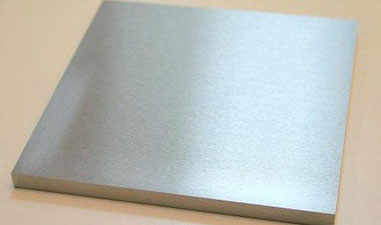

Monel K500 Plate

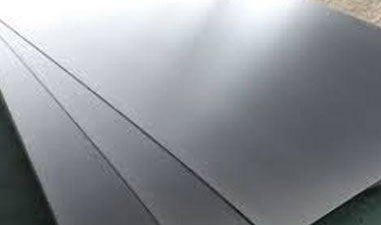

Nickel Alloy K500 Sheet

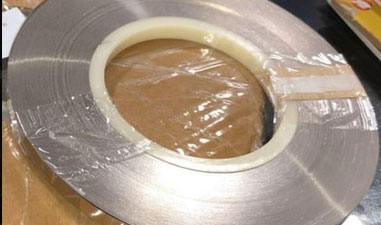

UNS N05500 Strip
View Weight Chart of ASME SB 127 Monel Cold Rolled Plates in Jawa Timur, Indonesia - Monel K500 Coil and K500 Monel Hot Rolled Plates
Monel K500 Plate: The UNS N05500 Strip has a minimum yield strength of 240MPa and a minimum tensile strength of 550MPa, with a melting point of 1350 degrees Celsius. These low width strips are used for pipes, tubes, linings, and in the form of Nickel Alloy K500 Coil for heat exchanging applications like condensers and boilers, due to its high thermal conductivity.
Table of Contents
- Various Types Of Nickel Alloy K500 Sheet
- UNS N05500 Strip Dimensions Standard
- Monel K500 Coil Density
- K500 Monel Hot Rolled Plates Melting point
- ASME SB 127 Monel Cold Rolled Plates Sizes In Mm
- K500 Monel Alloy Flat Plates Equivalent Material Grade
- Thickness Of ASME SB 127 Monel K500 Chequered Sheets
- Material Specification Chart of Monel K500 Decorative Sheets
- Composition Chart of Alloy UNS N05500 Circle
- ASTM B 127 K500 Monel Strip Mechanical Properties Chart
- K500 Alloy Blank Sheets Prices

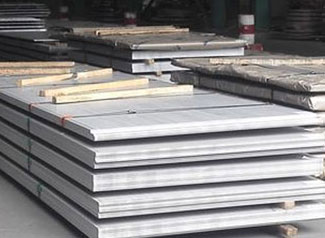

Monel K500 Plate Specifications The Monel K500 plates and sheets follow ASTM B127 standards. Available in hot rolled and cold rolled finishes, they vary in thickness from 0.3mm to 20mm, width from 1000mm to 2000mm, and length from 2000mm to 6000mm. ASME SB 127 Monel Cold Rolled Plates are ideal for grinding, polishing, and cutting. This material is highly machinable and resistant to oxidation, stress cracking, pitting, and crevice corrosion. For more details on K500 Monel Alloy Flat Plates and pricing, please get in touch with us.
Various Types Of Nickel Alloy K500 Sheet
K- 500 Monel Plate, Thickness: 0.5 milimeter To 200 milimeter, Material Grade: Uns N05500
Coated Monel K-500 Plate
Monel K500 Plate, K500 Sheets, Thickness: 2 milimeter To 50 milimeter
Nickel Monel K500 UNS N05500 2.4375 K500 Corrosion Resistant plate sheet
Monel K500 Alloy 4*8 Steel Plate Sheet
Nickel copper monel k500 plate
N 286 Copper Nickel monel k500 Plate
DIN 2.4375 K500 plate sheet strip nickel Monel plate
Monel K500 Clad Plate
12 milimeter thick nickel monel k500 plate/alloy steel plate
nickel monel K500 plate/ sheet
5*200 milimeter Monel K500 plate
Supplier of K500 Monel Alloy Flat Plates, ASME SB 127 Monel K500 Chequered Sheets, Monel K500 Decorative Sheets, Check Alloy UNS N05500 Circle Dimension
UNS N05500 Strip Dimensions Standard
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
ASTM B127 K500 Alloy Plate Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
Monel K500 Coil Density
| UNS N05500 Monel K500 Plate density |
|
g/cm3 : 8.44 lb/in.3 : .0.305 |
K500 Monel Hot Rolled Plates Melting point
| ASTM B127 Alloy K500 Plate melting range |
|
ASME SB 127 Monel Cold Rolled Plates Sizes In Mm
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125" | 3.18mm |
| .134" | 3.40mm |
| .156" | 3.96mm |
| .187" | 4.75mm |
| .250" | 6.35mm |
| .312" | 7.92mm |
| .375" | 9.53mm |
| .500" | 12.7mm |
| .601" | 15.9mm |
| .750" | 19.1mm |
| .875" | 22.2mm |
| 1" | 25.4mm |
| 1.125" | 28.6mm |
| 1.250" | 31.8mm |
| 1.500" | 38.1mm |
| 1.750" | 44.5mm |
| 2" | 50.8mm |
| 2.500" | 63.5mm |
| 3" | 76.2mm |
K500 Monel Alloy Flat Plates Equivalent Material Grade
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Monel K500 | 2.4375 | N05500 |
Thickness Of ASME SB 127 Monel K500 Chequered Sheets
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Buy directly from K500 Alloy Blank Sheets - High strength ASTM B 127 K500 Monel Strip. Explore ASTM B 127 Monel Perforated Coil and Monel K500 Plate Specification.
Material Specification Chart of Monel K500 Decorative Sheets
| Specifications | ASTM / ASME SB 127 |
|---|---|
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
Properties of UNS N05500 Foils - DIN 2.4375 Monel K500 Shim Sheets, ASTM B 127 Alloy K500 Polished Cold Drawn Plate, Alloy K500 Slatting Coil, Monel K500 Strips
Composition Chart of Alloy UNS N05500 Circle
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
ASTM B 127 K500 Monel Strip Mechanical Properties Chart
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
K500 Alloy Blank Sheets Prices
| UNS N05500 Strip Price List |
Nickel Alloy K500 Sheet Per Unit (INR) |
|---|---|
|
Alloy K500 Plate/Sheet |
$26.00-$28.00/ Kilogram |
|
Copper nickel alloy price per kg monel k500 plate/sheet |
$10.00-$30.00/ Kilogram |
|
Nickel copper alloy monel k500 plate |
$18.00-$38.00/ Kilogram |
| Nickel Alloy K500 UNS N05500 2.4375 Monel K500 Corrosion Resistant plate sheet price | $20.00/ Kilogram |
