Stainless Steel Chequered Plate in Indonesia
Check Weight of SS 304 Chequered Plate and Get Stainless 316 Chequer Sheet
Stainless Steel Chequered Plate offers a unique finish in stainless steel plate options. Widely used for pipes, sheets, and coils, stainless steel comes in various grades, specifications, and sizes. Piping Material is a top supplier of these plates, offering ASTM, JIS, and AISI standards with grades like 304, 304L, 301, and more.

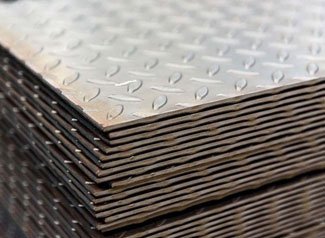

Stainless Steel Chequered Plate

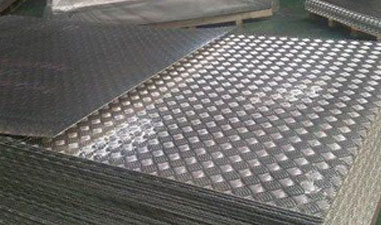

Stainless 316 Chequer Sheet

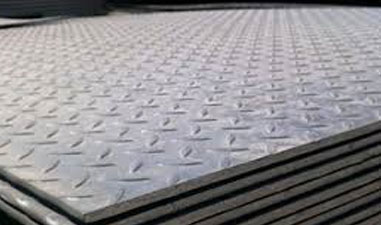

SS 304 Chequered Plate
Stainless Steel Chequer Plate Manufacturer in Jawa Timur - ASME SA240 316 Chequer Plate Expert
The SS Chequered Plate comes in various finishes such as 2B, NO 1, No 4, 8k, and standard checkered finishes. The weight of the plate is determined by multiplying the volume by the density, with SS 304 Chequered Plate weighing 8 grams per cubic centimeter. Different material grades have varying densities, resulting in different weights.
Table of Contents
- Stainless 316 Chequer Sheet Specification Chart
- SS 304 Chequered Plate Physical Composition
- ASME SA240 316 Chequer Plate Chemical Standard
- Stainless Steel Chequer Plate Mechanical Strength
- ASTM A240 Stainless Steel UNS S30400 Checkered Plate Types
- AISI SS 304 Chequer Plates Equivalent
- WNR 1.4301 Chequered Plates Dimensions
- Weight of SS Chequered Plate in KG
- Stainless Steel Checkered Sheet Size Chart
- SS 316 Chequered Plate Price in Indonesia
The Stainless Steel Chequered Plate is highly resistant to corrosion compared to grade 304 plates due to its 4% molybdenum content. It is specifically designed for high pressure and high-temperature applications, with varying widths from 1000mm to 3500mm and lengths from 2000mm to 6000mm, including custom sizes. Our company, a top Stainless Steel Chequered Plate Manufacturer, offers a wide range of materials in different grades and dimensions, all tested to meet international standards. For more information on ASTM A240 Stainless Steel UNS S30400 Chequered Plate types and pricing, please get in touch with us.
Stainless 316 Chequer Sheet Specification Chart
| Specifications | ASTM A240 / ASME SA240 |
| Item | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface | the surface and finish of ss Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hair line, sand blast, Brush, etching, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Manufacturer | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
| Thickness | 0.3~10.0mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Grade | ASTM /ASME SA 240 gr. Tp 304 , 304l, 304h, 309s, 309h, 310s, 310h, 316, 316l, 316h, 316, 317l ,321, 321h, 347, 347 h, 409, 410s, 420, 430, 904l chequered Plate |
SS 304 Chequered Plate Physical Composition
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| SS chequered 304/L/H Sheet | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
| Stainless Steel Chequered 316/L/H Plates | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
ASME SA240 316 Chequer Plate Chemical Standard
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel Chequered 304 Plates | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — | — |
| Stainless Steel Chequered 304L Sheets | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max | — |
| Stainless Steel Chequered 304H Coil | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max | — |
| Stainless Steel Chequered 316 Foil | Min | - | - | - | 0 | - | 16.0 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316L Plates | Min | - | - | - | - | - | 16.0 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | 0.10 | |
| Stainless Steel Chequered 316H Sheet | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 14.0 | - |
Stainless Steel Chequer Plate Mechanical Strength
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
ASTM A240 Stainless Steel UNS S30400 Checkered Plate Types
304 316 Mirror Finished Diamond Stainless Chequered Steel Sheet Chequered Plate
1220*2440mm 4'*8' stainless steel 2B BA Mirror Chequered chequered durbar plate embossed sheet
304 Stainless Steel clad plate floor press chequered stainless steel plate
316l SS Chequered Plate
200 series 1mm stainless steel chequered plate
0.9mm 0.7MM 0.8mm Thickness aisi 316l 2b stainless steel Chequered plate
0.5mm to 16mm thk stainless steel chequered plate 304
Anti Slip 201 SS Chequered Sheet
stainless steel Chequered sheet 0.2mm thickness
1220*2440MM SS201 SS304 Stainless Chequered Plate
chequered shape stainless steel sheet
stainless steel chequered plate/sheet 2mm 0.3mm 0.2mm 0.8mm
AISI SS 304 Chequer Plates Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | - | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
Check all dimensions of AISI SS 304 Chequer Plate, Accept small and large orders for ASTM A240 Stainless Steel UNS S30400 Checkered Plate
WNR 1.4301 Chequered Plates Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
Weight of SS Chequered Plate in KG
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Check Huge Stock of WNR 1.4301 Chequered Plates and Stainless Steel Checkered Sheets in Indonesia
Stainless Steel Checkered Sheet Size Chart
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125" | 3.18mm |
| .134" | 3.40mm |
| .156" | 3.96mm |
| .187" | 4.75mm |
| .250" | 6.35mm |
| .312" | 7.92mm |
| .375" | 9.53mm |
| .500" | 12.7mm |
| .601" | 15.9mm |
| .750" | 19.1mm |
| .875" | 22.2mm |
| 1" | 25.4mm |
| 1.125" | 28.6mm |
| 1.250" | 31.8mm |
| 1.500" | 38.1mm |
| 1.750" | 44.5mm |
| 2" | 50.8mm |
| 2.500" | 63.5mm |
| 3" | 76.2mm |
Reasonable Price List for SS 316 Chequered Plate, 304L Stainless Steel Chequered Sheets, and Stainless Steel 321 Chequered Plate - Expert SEO Knowledge in Semantics
SS 316 Chequered Plate Price in Indonesia
| Stainless Steel Chequered Plate Price List | Stainless 316 Chequer Sheet Per Unit (INR) |
|---|---|
| 316L Stainless Steel chequered Plate | $1,500.00-$3,000.00/ Ton |
| chequered stainless steel plate | $750.00-$1,000.00/ Ton |
| sus aisi 304 stainless steel chequered plate | $1,300.00-$1,800.00/ Ton |
| 2B Finish Chequered Anti-Slip Stainless Steel Plate | $1,500.00-$1,900.00/ Ton |
