Niobium Sheet in Indonesia

Explore Niobium Plate Price Weight Chart and Find a Reliable UNS R04200 Coil Manufacturer in Indonesia

Niobium Sheet is a cold-rolled and vacuum-annealed product composed of niobium, ideal for high-end applications like supercoolers, superconductors, and supercolliders in particle acceleration. Piping Material offers Niobium Plates in various grades and dimensions, available in forms like coils, foils, and strips.

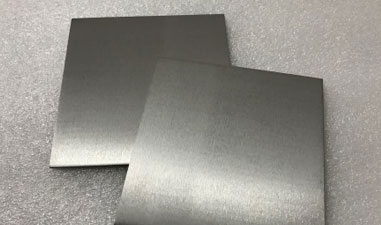

Niobium Sheet

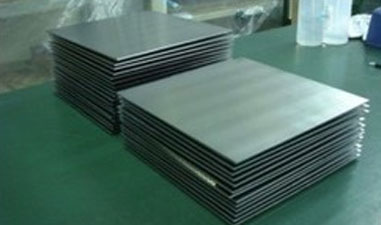

Niobium Plate

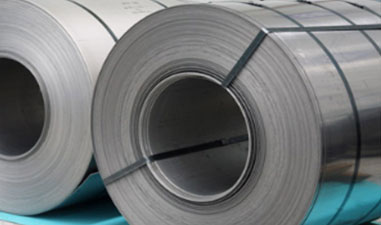

ASTM B393 UNS R04200 Coil

Find Affordable UNS R04210 Pure Niobium Plate, Verify Niobium Alloy Strip Specifications, Locate Reliable ASME SB393 Niobium Foil Suppliers

The Niobium Sheet with ASTM B393 UNS R04200 grade is manufactured using cold rolling techniques, ensuring a chemically pure surface ideal for reactive uses. It is utilized in advanced applications like creating synthetic diamonds and as sputtering targets in fiber optic technology.

Table of Contents

• Niobium Plate Material Specification
• Standards of UNS R04200 Coil
• Tolerance chart of UNS R04210 Pure Niobium Plate
• Niobium Alloy Strip Chemical Structure
• ASME SB393 Niobium Foil Mechanical Properties Table
• Basic Types Of Niobium Alloy Steel Plates
• ASTM B393 Niobium Hot Rolled Plates ASTM Specification
• Dimensions Chart of Niobium UNS R04200 Polished Plates
• UNS R04210 Niobium Alloy Perforated Sheet Price List in Indonesia

The UNS R04210 Pure Niobium Plate is essential in nuclear reactors and particle accelerators for producing superalloys and superconductors. Niobium Alloy Strip and sheets are available in various grades, including type 1 (reactor grade with 0.1% impurities) and type 2 (commercial grade with 0.2% impurities). Sheets range from 0.006 to 0.1875 inches thick. As a top ASME SB393 Niobium Foil Supplier, we offer both grades in different sizes. Contact us for details and pricing.

Niobium Plate Material Specification

Grade	Nb1,NbZr,R04200
Standard	ASTM B393-05
Purity	99.95%
Characteristic	Melting Point:2468 Degrees Celsius
	Boiling Poin:4742 Degrees Celsius
Certification	ISO9001, ISO14001, CE
Size	Thick 0.1mm min.W680mm max. L3000mm max
Applications	Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications.
Product Feature	High melting point, high-density, high temperature oxidation resistance, long service, resistance to corrosion.

Standards of UNS R04200 Coil

Products	Grade	Standard	Application
Nb1Zr	R04261 Type	ASTM B393	Electronic Industry, Superconductivity
Nb	R04210 Type	ASTM B393	Electronic Industry, Superconductivity Sputtering, Target

Tolerance chart of UNS R04210 Pure Niobium Plate

Thickness	Thickness Tolerance		Width	Width Tolerance	Length	Length Tolerance
	Grade 1	Grade 2
0.025 - 0.1	0.005	0.008	50 - 150	2.0	100 - 20 000	2.0
0.1 - 0.2	0.015	0.02	50 - 240	2.0	100 - 20 000	2.0
> 0.2 - 0.3	0.02	0.03	50 - 650	2.0	100 - 6 000	2.0
> 0.3 - 0.5	0.03	0.04	50 - 650	2.0	100 - 6 000	2.0
> 0.5 - 0.8	0.04	0.06	50 - 650	2.0	100 - 6 000	2.0
> 0.8 - 1.0	0.06	0.08	50 - 650	2.0	100 - 6 000	2.0
> 1.0 - 1.5	0.08	0.12	50 - 650	3.0	100 - 6 000	4.0
> 1.5 - 2.0	0.12	0.16	50 - 650	3.0	100 - 4 000	4.0
> 2.0 - 3.0	0.16	0.18	50 - 650	5.0	100 - 4 000	5.0
> 3.0 - 4.0	0.18	0.20	50 - 650	5.0	100 - 3000	5.0
> 4.0 - 6.0	0.20	0.24	50 - 650	5.0	100 - 2000	5.0

View Stock of Niobium UNS R04200 Polished Plates, Check Niobium Alloy Steel Plates for ASTM B393 Niobium Hot Rolled Plates Chemical Properties

Niobium Alloy Strip Chemical Structure

Element	Type 1 (Reactor Grade Unalloyed Nb) R04200	Type 2 (Commercial Grade Unalloyed Nb) R04210	Type 3 (Reactor Grade Nb-1%Nb) R04251	Type 4 (Commercial Grade Nb-1%Nb) R04261
Max Weight % (Except Where Otherwise Specified)
C	0.01	0.01	0.01	0.01
N	0.01	0.01	0.01	0.01
O	0.015	0.025	0.015	0.025
H	0.0015	0.0015	0.0015	0.0015
Zr	0.02	0.02	0.8 - 1.2	0.8 - 1.2
Ta	0.1	0.3	0.1	0.5
Fe	0.005	0.01	0.005	0.01
Si	0.005	0.005	0.005	0.005
W	0.03	0.05	0.03	0.05
Ni	0.005	0.005	0.005	0.005
Mo	0.010	0.020	0.010	0.050
Hf	0.02	0.02	0.02	0.02
Ti	0.02	0.03	0.02	0.03

ASME SB393 Niobium Foil Mechanical Properties Table

Grade Chart	Tensile Ultimate Strength, Minimum,psi(MPa)	Yield Strength Minimum, psi (MPa)	Elongation in 1-inch
			0.010 inch or Greater	Less Than 0.010 inch
Types 1 and 2	18 000 (125)	10 500 (73)	20	15
Types 3 and 4	28 000 (195)	18 000 (125)	20	15

Basic Types Of Niobium Alloy Steel Plates

0.1MM - 3000MM Nb Metal Sheet

Grade: Nb1 Nb2 Nb-zr10 Tanb3 Tanb20, Thickness: 1 - 25 Mm

ASTM B393 Nb Shim Sheet, Thickness: 0.1 to 30 mm

0.1-0.530-80030-2000 MM thick Nb sheet

4 Ft x 8 Ft Nb Sheet

Stainless Steel Nb2 sheet

ASTM B393 Niobium Hot Rolled Plates ASTM Specification

• ASTM B393 R04200: Pure Nb1 Reactor Grade
• ASTM B393 R04210: Pure Nb2 Commercial Grade
• ASTM B393 R04251: Reactor Gr Nb 1% Zirconium
• ASTM B393 R04261: Nb Commercial Gr 1% Zirconium
• ASTM B393 R04220: RRR Gr pure Niobium

Check the dimensions of A36 Steel Niobium Cold Rolled Plates, Get quick delivery of UNS R04210 Niobium Alloy Perforated Sheet and Steel Niobium Alloy Chequered Plate

Dimensions Chart of Niobium UNS R04200 Polished Plates

Niobium Foil	0.001” to 0.006” thick by widths up to 12” wide
Niobium Sheet	0.006” to 0.1875” thick by widths up to 40” wide
Niobium Plate	0.1875” to 1” thick in common widths

Request a Free Sample of Nb Alloy Shim Sheet, Check Price of Stainless Steel Niobium Slatting Coil, Contact Us for Stainless Steel Niobium Circle Manufacturing

UNS R04210 Niobium Alloy Perforated Sheet Price List in Indonesia

Price of UNS R04210 Pure Niobium Sheet	Niobium Plate Price
Niobium Sheet	Rs 300/ Kilogram
Nb Alloy Strip	Rs 120/ Kg
ASME SB393 Nb1 Foil coil Sheet	Rs 150/ Kg
