Zirconium Plate in Indonesia
Prices for UNS R60702 Strip and ASTM B551 Zirconium 702 Sheet
Zirconium Plate offers a density of 6.52 g/cm³, sitting between aluminum and 304 stainless steel. Zirconium boasts a high melting point of 1855°C, making it a crucial material. Piping Material is a leading provider of ASTM B551 Zirconium 702 Sheet, along with different zirconium grades such as 704 and 705, each with distinct chemical makeup.

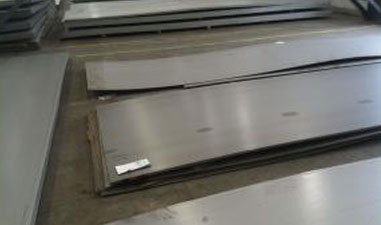

Zirconium Plate

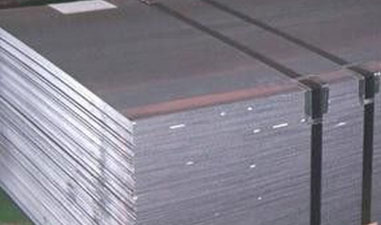

ASTM B551 Zirconium 702 Sheet

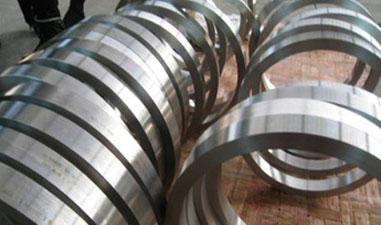

UNS R60702 Strip
Manufacturer of Zirconium Coil and Zirconium 702 Plate in India, ASME SB551 Certified
Zirconium Plate Specifications The UNS R60702 Strip, plate, sheet and coils come in various dimensions. Thickness ranges from 0.5mm to 50mm, width up to 1000mm, and length up to 2000mm. Zirconium 702 Plate has a minimum yield strength of 207MPa, grade 704 has 241MPa, and 705 grade has 379MPa.
Table of Contents
- Specification Chart of ASTM B551 Zirconium 702 Sheet
- Properties of UNS R60702 Strip Prices
- Zirconium 702 Plate Grade
- Material Specification of ASME SB551 Zirconium Coil
- Composition Chart of Zirconium Foil
- Pure Zirconium Plate Mechanical Properties Chart
- Various Types Of Zirconium Plate
- Thickness Chart Of Pure Zr Zirconium Plate
- ASTM B551 R60705 zirconium alloy plate Prices

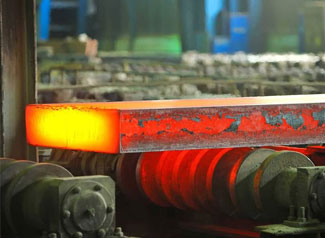

Zirconium Plate The ASME SB551 Zirconium Coil demonstrates varying tensile strength across grades. Comprising tin, iron, chromium, nickel, Hafnium, and niobium, our range includes plates of all grades and sizes. For inquiries on plates, sheets, coils, foils, and Pure Zirconium Plate types, contact us.
Specification Chart of ASTM B551 Zirconium 702 Sheet
| Specification | Pure Zr Plate Target |
| Material |
Pure and Alloy Zirconium |
| Grade |
Zr702/R60702 |
| Specification |
12×170×830mm |
| Processing |
Rolling; Forging; Machining |
| Surface |
bright; polish |
| Applications |
coating industry. |
| Shape |
round/circuler; plate; tubular |
Check Zirconium Plate Manufacturers for Pure Zirconium Plate at the Lowest Cost and Inquire About Zirconium Foil Weight Chart
Properties of UNS R60702 Strip Prices
- Standard : ASTM B551
- Grade : Zr1, R60702 ,R60705
- Surface : Polished
- Density : 6.51g/cm3
- Melting point : 1852℃
- Boiling point : 4377℃
- Application : Chemical processing, Aerospace, Industry, Navigation, Smelting, Chemical plants, Plate heat exchanger, and condensers, Chemical and medical equipment.
Zirconium 702 Plate Grade
Zirconium ingot, billet, slab
Zirconium plate, sheet, foil, strip, ribbon
Standards: ASTM B551, R60700, R60702, R60704, R60705, R60706, Zr2, Zr4, AMS, MIL, JIS, R60001, R60802, R60804, R60901, R60904
Size available: Thick 0.02mm Min * Wide 1200mm Max * Long 3000mm max
Features of Zirconium Sheet
For commercial Application (Hf ≤4.5%):
- UNS R60700 (Zr1): Commercially pure, Zr+Hf≥99.2
- UNS R60702 (Zr3): Commercially pure, Zr+Hf≥99.2
- UNS R60704 (Zirconium-Tin alloy): Zr-1.5%Sn, Zr+Hf≥97.5
- UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18
- UNS R60706 (Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16
For Nuclear Industry (Reactor grade, Hf ≤ 0.01%)
- UNS R60001 (Zr0):
- UNS R60802 (Zr2, Zircaloy2, Zirconium-Tin alloy): Zr-1.5Sn-0.15Fe-0.1Cr-0.05Ni
- UNS R60804 (Zr4, Zircaloy4, Zirconium-Tin alloy): Zr-1.5Sn-0.2Fe-0.1Cr
- UNS R60901 (Zirconium-Niobium alloy): Zr-2.5Nb, O-0.1%
- UNS R60904 (Zirconium-Niobium alloy): Zr-2.5Nb
- Zr-1Nb (Zr-1%Nb alloy)
Material Specification of ASME SB551 Zirconium Coil
| Material |
Zr702, Zr704, Zr705 |
| Thickness |
0.5~50mm, or 0.02"~2" |
| Width |
<1000mm, or 36" |
| Length |
<2000mm, or 72" |
Composition Chart of Zirconium Foil
| Grade | Zr700 (R60700) | Zr702 (R60702) | Zr704 (R60704) | Zr705 (R60705) | Zr706 (R60706) |
| Component % | |||||
| Zr+Hf(min) |
99.2 |
99.2 |
97.5 |
95.5 |
95.5 |
| Hf(max) |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
| Fe+Cr |
0.20(max) |
0.20(max) |
0.2-0.4 |
0.20(max) |
0.20(max) |
| Sn |
- |
- |
- |
1.0-2.0 |
- |
| H(MAX) |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
| C(max) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
| Nb |
- |
2.0-3.0 |
2.0-3.0 |
||
| O(max) |
0.10 |
0.16 |
0.18 |
0.18 |
0.16 |
Pure Zirconium Plate Mechanical Properties Chart
| Grade | Zr700 (R60700) | Zr702 (R60702) | Zr704 (R60704) | Zr705 (R60705) | Zr706 (R60706) |
| Tensile strength min(Mpa) |
- |
380 |
415 |
550 |
510 |
| Yield strength min(Mpa) |
- |
205 |
240 |
380 |
345 |
| Tensile strength max(Mpa) |
380 |
- |
- |
- |
- |
| Yield strength max(Mpa) |
305 |
- |
- |
- |
- |
| Elongation min % |
2 |
16 |
14 |
16 |
20 |
| Bending radius * |
5T |
5T |
5T |
3T |
2.5T |
Various Types Of Zirconium Plate
ASTM B551 Zr702 Plate
Zr 702 plate/sheet
ASTM B551 R60705 alloy plate zirconium sheet
Pure Zr Plate
Zr R60702 plate
pure 702 ASTM B551 bright Zr plate sheet
2mm pure Zr 702 sheet polished plate
CuCrZr Chromium Copper Plate
ASTM B551 R60702 plate/sheet
Check the thickness of our ASTM B551 Zr702 zirconium plates for the supply of Pure Zr Zirconium Plate and ASTM B551 R60705 zirconium alloy plate
Thickness Chart Of Pure Zr Zirconium Plate
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In Jawa Timur, we offer competitive prices for Zr4 Grade Hot Rolled Plate, JIS Zirconium Cold Rolled Plate, and UNS R60001 Zirconium Shim Sheet
ASTM B551 R60705 zirconium alloy plate Prices
| UNS R60702 Strip Price List | ASTM B551 Zirconium 702 Sheet Per Unit (INR) |
|---|---|
| Pure 2mm Zr 702 Sheet Polished Plate | $60.00-$120.00/ Kilogram |
| Zr sheets and plates price per kg | $50.00/ Piece |
| foil sheet Zr alloy price per kg | $100.00-$150.00/ Kilogram |
