Stainless Steel 304 Sheet in Indonesia
Discover AISI 304 Ring and ASTM A240 Type 304 Plate
Stainless Steel 304 Sheet is composed of 18% chromium and 8% nickel in an austenitic stainless steel. Widely used globally, it offers strength, mild corrosion resistance, and versatility across industries. With additional elements like manganese, carbon, silicon, sulfur, nitrogen, and phosphorus, it boasts a minimum yield strength of 205MPa and a minimum tensile strength of 515MPa.

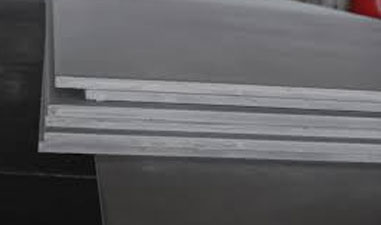

Stainless Steel 304 Sheet

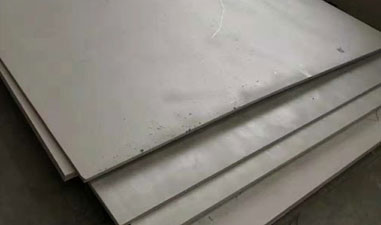

ASTM A240 Type 304 Plate

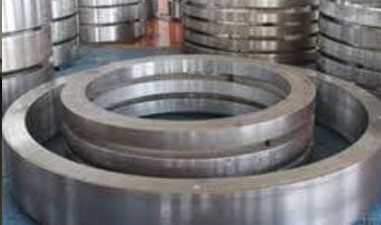

AISI 304 Ring
Manufacturer of 304 Stainless Steel Strip Specification and Stainless Steel 304 Coil Price in Indonesia
Stainless Steel 304 Sheet The thinner sheets boast greater strength. The A240 specification is for pressure vessels and high-temperature uses. ASTM A240 SS 304 Sheet can endure temperatures reaching 870 degrees Celsius. They find use in evaporators, heat exchangers, and similar high-temperature settings. Stainless Steel 304 Plate is also employed in drums, barrels, dairy equipment, food processing, and hospital gear.
Table of Contents
- Standard Specification Of ASTM A240 Type 304 Plate
- AISI 304 Ring Weight Per Foot Chart
- Stainless Steel 304 Coil Density Chart
- 304 Stainless Steel Strip Melting range
- ASME SA240 Stainless Steel 304 Plate Sizes
- Stainless Steel 304 Checker Plate Physical Properties
- Chemical Analysis of Ss 304 Perforated Sheet
- SS UNS S30400 Cold Rolled Plates Mechanical Properties Table
- Different Hot Rolled SUS 304 Polished Plates Types
- Equivalent Material of SS Werkstoff No 1.4301 Shim Sheet
- 304 SS Foils Price List
- Stainless Steel 304 Plate Dimensions Schedule

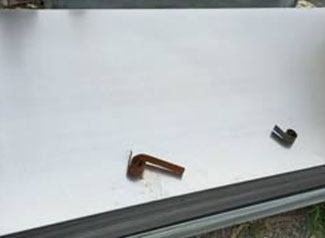

Stainless Steel 304 Sheet Stainless Steel 304 Sheet is known for its cost-effectiveness compared to other grades. It comes in low and high carbon versions, with 304L sheets being ideal for welding due to less carbide precipitation and localized corrosion. ASME SA240 Stainless Steel 304 Coil Thickness can range up to 200mm, with varying width and length options based on application needs. Contact us for more details and pricing.
Standard Specification Of ASTM A240 Type 304 Plate
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Thickness | 4mm-100mm |
| Width |
1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
Explore ASME SA240 Stainless Steel 304 Plate Thickness, Weight of Stainless Steel 304 Checker Plate, and SS 304 Perforated Sheet dimensions
AISI 304 Ring Weight Per Foot Chart
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Stainless Steel 304 Coil Density Chart
| Plate Type | Density |
| Stainless Steel 304 Plate | 8.0 g/cm3 |
304 Stainless Steel Strip Melting range
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
ASME SA240 Stainless Steel 304 Plate Sizes
| SS 304 Plate Thickness | SS 304 Plate Size | SS 304 Sheet Weight per Unit Area | Estimated Weight per Sheet |
|---|---|---|---|
| 0.015 inches 0.381 mm | 36 x 96 | 0.630 lbs/ft²3.07566 kg/m² | 15.12 lbs6.84936 kg |
| 0.015 inches 0.381 mm | 36 x 120 | 0.630 lbs/ft²3.07566 kg/m² | 18.90 lbs8.5617 kg |
| 0.0178 inches 0.45212 mm | 36 x 96 | 0.756 lbs/ft²3.690792 kg/m² | 18.15 lbs8.22195 kg |
| 0.0178 inches 0.45212 mm | 36 x 120 | 0.756 lbs/ft²3.690792 kg/m² | 22.68 lbs10.27404 kg |
| 0.0178 inches 0.45212 mm | 48 x 96 | 0.756 lbs/ft²3.690792 kg/m² | 24.19 lbs10.95807 kg |
| 0.0178 inches 0.45212 mm | 48 x 120 | 0.756 lbs/ft²3.690792 kg/m² | 30.24 lbs13.69872 kg |
| 0.0235 inches 0.5969 mm | 30 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 20.16 lbs9.13248 kg |
| 0.0235 inches 0.5969 mm | 30 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 25.20 lbs11.4156 kg |
| 0.0235 inches 0.5969 mm | 36 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 24.19 lbs10.95807 kg |
| 0.0235 inches 0.5969 mm | 36 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 30.24 lbs13.69872 kg |
| 0.0235 inches 0.5969 mm | 36 x 144 | 1.008 lbs/ft²4.921056 kg/m² | 36.29 lbs16.43937 kg |
| 0.0235 inches 0.5969 mm | 48 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 32.26 lbs14.61378 kg |
| 0.0235 inches 0.5969 mm | 48 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 40.32 lbs18.26496 kg |
| 0.0235 inches 0.5969 mm | 48 x 144 | 1.008 lbs/ft²4.921056 kg/m² | 48.39 lbs21.92067 kg |
| 0.0291 inches 0.73914 mm | 30 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 25.20 lbs11.4156 kg |
| 0.0291 inches 0.73914 mm | 30 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 31.50 lbs14.2695 kg |
| 0.0291 inches 0.73914 mm | 36 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 30.24 lbs13.69872 kg |
| 0.0291 inches 0.73914 mm | 36 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 37.80 lbs17.1234 kg |
| 0.0291 inches 0.73914 mm | 36 x 144 | 1.260 lbs/ft²6.15132 kg/m² | 45.37 lbs20.55261 kg |
| 0.0291 inches 0.73914 mm | 48 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 40.32 lbs18.26496 kg |
| 0.0291 inches 0.73914 mm | 48 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 50.41 lbs22.83573 kg |
| 0.0291 inches 0.73914 mm | 48 x 144 | 1.260 lbs/ft²6.15132 kg/m² | 60.49 lbs27.40197 kg |
| 0.0355 inches 0.9017 mm | 30 x 96 | 1.512 lbs/ft²7.381584 kg/m² | 30.24 lbs13.69872 kg |
| 0.0355 inches 0.9017 mm | 30 x 120 | 1.512 lbs/ft²7.381584 kg/m² | 37.80 lbs17.1234 kg |
| 0.0355 inches 0.9017 mm | 36 x 96 | 1.512 lbs/ft²7.381584 kg/m² | 36.29 lbs16.43937 kg |
Polished and plain 304 Stainless Steel Sheet
huge stock of polished ss 304 sheets, finishes include Natural, Bright, Brushed, Dull Polished, Mirror and Embossed Rigidised
| PRODUCT | FINISH | THICKNESS MM | MAX SHEET SIZE MM |
|---|---|---|---|
| Grade 304 | Plain 2B | 0.9 | 2000 x 1000 |
| Bright | 0.9 | 2000 x 1000 | |
| Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 | |
| Embossed | 0.8, 1.0 | 2500 x 1250 |
Perforated Stainless Steel Sheet 304
We now offer circle cutting in Stainless Steel Grade 304 perforated sheets up to 1000mm diameter.| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
Stainless Steel 304 Checker Plate Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
|
304/L/H |
8000 |
193 |
17.2 |
17.8 |
18.4 |
16.2 |
21.5 |
500 |
720 |
Chemical Analysis of Ss 304 Perforated Sheet
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. |
- 0.08 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 10.5 |
- 0.10 |
| 304H | min. max. |
0.04 0.10 |
- 2.0 |
- 0.75 |
-0.045 |
- 0.030 |
18.0 20.0 |
- |
8.0 10.5 |
|
SS UNS S30400 Cold Rolled Plates Mechanical Properties Table
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
|
304 |
515 |
205 |
40 |
92 |
201 |
|
304H |
515 |
205 |
40 |
92 |
201 |
|
304H also has a requirement for a grain size of ASTM No 7 or coarser. |
|||||
Different Hot Rolled SUS 304 Polished Plates Types
0.012" Stainless Sheet 304-Annealed 2B
304 1500mm*3000mm mirror stainless steel sheet
0.018" Stainless Sheet 304 Annealed #4
0.022" SS 304 Sheet
0.015" Stainless Sheet 304 Annealed 2B
1" x 4.25" Stainless Plate 304 Annealed HRAP
0.022" Stainless Sheet 304 Annealed #4
0.032" Stainless Sheet 304 Full Hard
0.024" Stainless Sheet 304 Cold Roll 2B
0.034" Stainless Sheet 304 Annealed #8
0.025" Stainless Sheet 304 1/4 Hard
0.036" Stainless Sheet 304 Annealed #4
Equivalent Material of SS Werkstoff No 1.4301 Shim Sheet
| rade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
|
304 |
S30400 |
304S31 |
58E |
1.4301 |
X5CrNi18-10 |
2332 |
SUS 304 |
|
304H |
S30409 |
304S51 |
- |
1.4948 |
X6CrNi18-11 |
- |
- |
Price List of Hot Rolled SS 304 Sheet, Cold Rolled Schedule 40 SS UNS S30400 Plates, and 1 inch SS Werkstoff No 1.4301 Shim Sheet
304 SS Foils Price List
| Stainless Steel 304 Plate Price List |
ASTM A240 Type 304 Sheet Per Unit (INR) |
|---|---|
|
2mm 304 stainless steel plate |
$1,400.00-$1,600.00/ Ton |
|
ss 304 mirror Stainless Steel Coil/ Strip/ Sheet |
$1,200.00-$1,800.00/ Metric Ton |
|
304 Stainless Steel Plate / Stainless Steel Sheet 304 |
$1.70-$2.20/ Kilogram |
|
Standard size 4x8 metal sus 304 grade stainless steel checkered Sheet prices |
$1.48-$1.98/ Kilogram |
Check Dimension of ASTM DIN GB JIS standard 304 SS Foils and SS GOST 08Х18Н10 2B Plate For Evaporative Condenser, Stainless Steel 304 Checker Plate Available
Stainless Steel 304 Plate Dimensions Schedule
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
Large Stock Of Stainless Steel 304 Sheet
|
|
