Stainless Steel 316 Round Bar in Indonesia
View Dimensions of A479 Gr 316 Flat Bar from Manufacturer of ASTM A276 Type 316 Rod
Stainless Steel 316 Round Bar is an austenitic stainless steel with a composition of chromium, nickel, and molybdenum. The molybdenum enhances corrosion resistance compared to 304 grade. Piping Material offers a variety of types and specifications for these products.
Stainless Steel 316 Round Bar

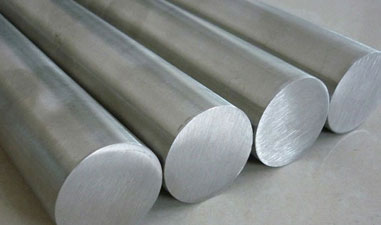

ASTM A276 Type 316 Rod

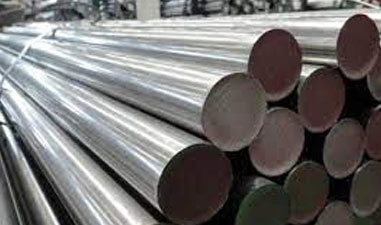

SS 316 Round Bar
Largest Selection of SS 316 Hex Bar, Stainless Steel 316 Square Bar, and 316 Stainless Steel Round Bar in Indonesia
Stainless Steel 316 Round Bar The ASTM A276 Type 316 Rod is a versatile material suitable for various applications. It is known for its strength, durability, and high-temperature resistance. Available in different forms such as flat bars, round bars, and more, with dimensions ranging from 4mm to 500mm in diameter and lengths from 1m to 6m. Custom orders can be accommodated with cut-to-length options.
Table of Contents
- ASTM A276 Type 316 Rod Specifiaction Chart
- Size Chat of A479 Gr 316 Flat Bar
- Various Type of Stainless Steel 316 Square Bar
- Equivalent Material of 316 Stainless Steel Half Round Bar
- Hot Rolled 316 Stainless Steel Bars Weight Chart
- 316 SS Round Bar Price List
- 316 Stainless Steel Round Bar Chemical Formula
- SS 316 Hex Bar Mechanical Strength
Stainless Steel 316 Round Bar Overview: The UNS S31600 Steel Round Bar consists of nickel, carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum, and nitrogen. With similar density and melting point to 304 steel, the SS 316 Hex Bar Sizes range from 18mm to 57mm, offering enhanced strength due to their unique shape. This material boasts a minimum tensile strength of 515MPa, a minimum yield strength of 205MPa, and a maximum hardness of 217BNH. For more details on Stainless Steel 316 Square Bar varieties and pricing, please get in touch.
ASTM A276 Type 316 Rod Specifiaction Chart
| Dimensions Chart | DIN, JIS, ASME, EN, ASTM, BS, AISI |
|---|---|
| size in milimeter | 3-~800 milimeter Diameter |
| SUS316 Flat bars size & Schedule | 2 -100 milimeter Thickness |
| Surface Finish | Cold (bright) drawn, smooth turned, centreless ground, peeled, hot rolled, hot rolled annealed, Bright, Polish, Rough Turned, Grinding, slit rolled edge, Centreless Ground & Black |
| ASTM A276 Type 316 Cold Rolled Bar Technique | 316 Stainless Steel Cold Drawn, Forged Round Bar, Hot Rolled, Cold Rolled, Rod |
| SS 316 Rod Processing | Bar cutting to 650mm |
| SUS316 T-Bar Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Rolled Stainless Steel 316 Flat Bars Condition | Hardened & tempered, annealed |
| Stainless Steel 316 Grade | SS 316 (UNS S31600) |
| SS 316 Standard | ASTM A276, ASME SA276 and ASTM A479 ASME SA479 |
| Stainless Steel 316 Hex Bar size Chart | 2 to 100milimeter A/F |
| Stainless Steel 316 Channel Bars | 80 x 40 - 150 x 75milimeter; thickness upto 5.0 - 6.0milimeter |
| SUS316 Rectangular Bars Section | thickness: 3.0 to 12.0mm |
| SS 316 Threaded Bar Billet Size Chart | 1/2 - 495mm Diameter Width: 10 to 500mm |
| Sizes of SS 316 Angle bars | 3mm*20mm*20mm to 12mm*100mm*100mm |
| Stainless Steel 316 Square bar Sizes | 4 to 100mm |
| Stainless Steel 316 Rectangles Sizes | 33mm x 30mm to 295mm x 1066mm |
| ASTM A276 Type 316 Hollow Bars | 32mm Outside dia x 16mm inside dia to 250mm Outside dia x 200mm inside dia) |
| ASTM A276 Type 316 Hollow Bar Tolerance | H13K9, H8 to H12, K10 to K12 or as per clients’ requirements |
Check the sizes of 316 Stainless Steel Half Round Bar, Hot Rolled SS 316 Round Bar, and UNS S31600 Forged Bars, including 316 SS Hollow Bar dimensions
Size Chat of A479 Gr 316 Flat Bar
| Type | SIZES (Inches) | SIZES (mm) | ISO Tolerance |
|---|---|---|---|
| Peeled and Polished | 1.50 - 6.00 | 40.00 - 150.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 1/8 - 3.00 | 3.00 to 75.00 | h8, h9, h10, h11 |
| Cold Drawn and Ground | 5/6 - 2.50 | 10.00 to 75.00 | h8, h9, h10, h11 |
| Peeled and Ground | 3/4 - 2.00 | 20.00 to 50.00 | h9, h10, h11 |
Length of 316 Stainless Steel Bars is 2000 to 6000 mm.
|
5.0
|
45.0
|
|
6.0
|
50.0
|
|
7.0
|
55.0
|
|
8.0
|
60.0
|
|
9.0
|
65.0
|
|
10.0
|
70.0
|
|
12.0
|
75.0
|
|
16.0
|
80.0
|
|
20.0
|
90.0
|
|
25.0
|
100.0
|
|
30.0
|
130.0
|
|
35.0
|
160.0
|
|
40.0
|
200.0
|
Various Type of Stainless Steel 316 Square Bar
316 SS round bars 10 milimeter
SS Dia 12milimeter 12.7 milimeter 3/8"" 1/2"" Round Bars
10 20 30 50 milimeter cold drawn 316 polished ss round bar rod
SS 316 25mm round bar
20mm SS hex Bar
steel round bars rod 10mm 12mm
Equivalent Material of 316 Stainless Steel Half Round Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐032 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Check Weight Chart for Threaded Round Bars of Stainless Steel Werkstoff Nr. 1.4435, Special Price Offer on Stainless Steel 316 Bars including 316 Stainless Steel Hexagon Bars.
Hot Rolled 316 Stainless Steel Bars Weight Chart
| Diameter in milimeter | Weight Chart in kg | Diameter in inch | Weight Chart in kg |
|---|---|---|---|
| 3 | 0.06 | 1/8" | 0.06 |
| 4 | 0.10 | 3/16" | 0.14 |
| 5 | 0.16 | 1/4" | 0.25 |
| 6 | 0.22 | 5/16" | 0.39 |
| 7 | 0.30 | 3/8" | 0.56 |
| 8 | 0.40 | 7/16" | 0.77 |
| 10 | 0.62 | 1/2" | 1.00 |
| 12 | 0.89 | 9/16" | 1.22 |
| 14 | 1.22 | 5/8" | 1.56 |
| 15 | 1.40 | 11/16" | 1.89 |
| 16 | 1.59 | 3/4" | 2.25 |
| 18 | 2.01 | 7/8" | 3.07 |
| 20 | 2.48 | 1" | 4.03 |
| 22 | 3.00 | ||
| 24 | 3.57 | ||
| 25 | 3.88 |
316 SS Round Bar Price List
| Stainless Steel 316 Round Bar Price List | Price in Indonesia |
|---|---|
| Hot rolled 316 flat round square ss bar Price | $1,000.00-$2,000.00/ Ton |
| ASTM 316 2Cr13 Solid Rod / SS Round Bar Prices | $2.00-$3.00/ Kilogram |
| 316 SS hex bars Price Per Kg | $1,000.00-$5,000.00/ Ton |
| 10mm 16mm 18mm 20mm 25mm 316 SS Round bar Price | $900.00-$2,900.00/ Ton |
Explore a wide selection of SS 316 welding rods, ASTM A479 Gr316 rods, threaded bars, and polished bars. Discover the chemical composition of SS 316 rods and round bars at unbeatable factory prices.
316 Stainless Steel Round Bar Chemical Formula
| Grade | Carbon | Manganese | Silicon | Phospherous | Sulfur | Chromium | Molybdenum | Nickel | Nitrogen |
|---|---|---|---|---|---|---|---|---|---|
| SS 316 | 0.3 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16 - 18 | 2 - 3 | 10 - 14 | 0.10 max |
SS 316 Hex Bar Mechanical Strength
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
