Stainless Steel Square Bar in Indonesia
Stainless Steel 316 Box Bar Manufacturer Specializing in Grade 304 Square Hollow Bar
Stainless Steel Square Bar is crafted from various stainless steel grades like 304 and 316, meeting ASTM 276 and 479 standards. As a top supplier, Piping Material offers a range of sizes and grades, including austenitic, ferritic, martensitic, and duplex options, with the cost-effective austenitic grade being most popular.

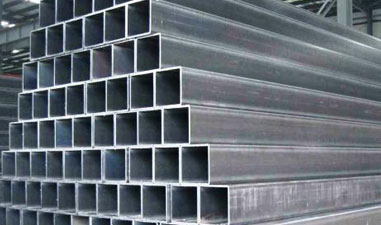

Stainless Steel Square Bar
Grade 304 Square Hollow Bar
Stainless Steel 316 Box Bar
Check Stainless Steel 316 Square Bar Dimension in Jawa Timur, Held wide stock of Stainless Steel Square Hollow Bar Price, Stainless Steel Solid Square Bar
Stainless Steel Square Bar: The Grade 304 Square Hollow Bar is composed of 304 stainless steel with 18% chromium, 8% nickel, 515MPa minimum tensile strength, 205MPa minimum yield strength, and up to 870 degrees Celsius operating temperatures. The Stainless Steel 316 Box Bar contains molybdenum for enhanced corrosion resistance, particularly against salt water and chloride iron rich solutions, while maintaining similar mechanical properties.
Table of Contents
- Grade 304 Square Hollow Bar Specification Schedule
- Different grades of Stainless Steel 316 Box Bar
- Stainless Steel Solid Square Bar Composition Standard
- Stainless Steel 316 Square Bar Mechanical Characteristics
- Common Types Of Stainless Steel Square Hollow Bar
- Equivalent Grades of SS Square Bar
- SS 304 Square Bar Weight Chart
- Stainless Steel Bright Square Bar Sizes And Schedules
- Tolerance Standard of Stainless Steel Square Rod
- SS 316 Square Bars Hs Code
- Price list of 40mm Square Stainless Steel Bar
The Stainless Steel Square Bar is chosen for its superior strength compared to round bars, making it ideal for pressure vessels and corrosive environments. Available in various grades like ASTM A276 Stainless Steel 316, with finishes like bright, black, and polished, each offering unique applications. Weight varies based on dimensions and material density (8g/cm³ for 304 and 316). For SS Square Bar Weight Chart, pricing, and more, please contact us.
Grade 304 Square Hollow Bar Specification Schedule
| Grade List | All Grades |
|---|---|
| Bar Finishing | Bright, Polish, Square Round Bar |
| Otder Services | Machining, Centreless Grinding, Heat Treatment, Polish, Rolling, Anneling, Pickling, Forging, Cutting, Bending |
Processing Steps for SS Square Bar
- Stainless Steel Square Bar Cutting
- Stainless Steel 304 Square Bar Heat Treating
- Stainless Steel 316 Square Bar Machining
- SS Square Bar Additional Services
Different grades of Stainless Steel 316 Box Bar
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
Stainless Steel Solid Square Bar Composition Standard
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 304 | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| SS 316L | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
Stainless Steel 316 Square Bar Mechanical Characteristics
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS 304 | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
Common Types Of Stainless Steel Square Hollow Bar
AISI 10*10mm 9*9mm sizes stainless steel square bar
304 316 stainless steel square bar 40mm
AISI 202 12mm steel square rod
5.5mm-500mm Hot Rolled 200 Series ss square bar
ss Squre bar 50mm
6mm 15mm 25mm 50mm 100mm 30mm square bar
Equivalent Grades of SS Square Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18-09 | X5CrNi18-10 |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 304S11 | 03Х18Н11 | Z7CN18‐09 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Weight Chart for Cold Drawn SS Square Bar, Size of SS 304 Square Bar, Purchase Stainless Steel Bright Square Bar, Price of Stainless Steel Square Rod in Indonesia.
SS 304 Square Bar Weight Chart
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | - | - |
| 65 | - | - |
| 70 | - | - |
| 75 | - | - |
| 80 | - | - |
| 90 | - | - |
| 100 | - | - |
High Quality SS 316 Square Bars from Indonesia's Largest Supplier - Cold Drawn Stainless Steel Square Bar in 40mm Size, Explore Polished Stainless Steel Square Bar Sizes in India
Stainless Steel Bright Square Bar Sizes And Schedules
| Metric Stainless Steel Square bar | 6mm, 8mm, 10mm , 12mm, 13mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 120mm, 150mm |
| Imperial SS Square Bar | 1/4″, 5/16″, 3/8″ 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 3/4″, 2”, 4″ |
Tolerance Standard of Stainless Steel Square Rod
| SIZE in Milimeter | PERMITTED VARIATION CHART | |||
| PRIMARY ROLLED | RE-ROLLED | |||
| DIAMETER +/- Milimeter | OUT OF SECTION Milimeter | DIAMETER OR WIDTH ACROSS FLATS +/- Milimeter | OUT OF SECTION Milimeter | |
| <=16 | 0.2 | 0.3 | ||
| >16 <=26 | 0.3 | 0.5 | ||
| >26 <=38 | 0.4 | 0.6 | ||
| >38 <=51 | 0.5 | 0.8 | ||
| >51 <=64 | 0.6 | 0.9 | ||
| >64 <=76 | 0.7 | 1.1 | ||
| >76 <=90 | 1.3 | 2.0 | ||
| >90 <=120 | 1.5 | 2.3 | ||
| >120 <=160 | 2.0 | 3.0 | ||
| >160 <=200 | 2.5 | 3.8 | ||
| >200 | 3.0 | 4.5 | ||
SS 316 Square Bars Hs Code
HSN Code is known as Harmonized System Code, developed by World Customs Organization (WCO). HSN Code also known as HTS code in USA and NCM code in Brazil, HSN code in Indonesia.
First six digits of HSH Code, In all Countries are same.
- First 2 digits – chapters
- First 4 digits – heading
- First 6 digits – sub heading
| Heading Codes | Heading Description |
|---|---|
| 7222 | Harmonized Syestem Codes Of Other Bars And Square Bars Of SS; Angles, Shapes And Sections Of Stainless Steel First Six Digits HSN Code SS Square Bar |
| HSN Codes | Description of Products |
|---|---|
| 722211 | Harmonized Syestem Codes of Of circular cross section : |
| 722219 | Harmonized Syestem Codes of Other : |
| 722220 | Harmonized Syestem Codes of Bars and rods, cold-formed/cold-finished : |
| 722230 | Harmonized Syestem Codes of Other bars and rods : |
| 722240 | Harmonized Syestem Codes of Angles, shapes and sections : |
| HSN Codes | Description of Products |
|---|---|
| 72221111 | HSN Codes Classification of Chromium type |
| 72221112 | HSN Codes Classification of Nickel chromium austenitic type |
| 72221119 | HSN Codes Classification of Other |
| 72221191 | HSN Codes Classification of Chromium type |
| 72221192 | HSN Codes Classification of Nickel chromium austenitic type |
| 72221199 | HSN Codes Classification of Other |
| 72221911 | HSN Codes Classification of Chromium type |
| 72221912 | HSN Codes Classification of Nickel chromium austenitic type |
| 72221919 | HSN Codes Classification of Other |
| 72221991 | HSN Codes Classification of Chromium type |
| 72221992 | HSN Codes Classification of Nickel chromium austenitic type |
| 72221999 | HSN Codes Classification of Other |
| 72222011 | HSN Codes Classification of Chromium type |
| 72222012 | HSN Codes Classification of Nickel chromium austenitic type |
| 72222019 | HSN Codes Classification of Other |
| 72222091 | HSN Codes Classification of Chromium type |
| 72222092 | HSN Codes Classification of Nickel chromium austenitic type |
| 72222099 | HSN Codes Classification of Other |
| 72223011 | HSN Codes Classification of Chromium type |
| 72223012 | HSN Codes Classification of Nickel chromium austenitic type |
| 72223019 | HSN Codes Classification of Other |
| 72223091 | HSN Codes Classification of Chromium type |
| 72223092 | HSN Codes Classification of Nickel chromium austenitic type |
| 72223099 | HSN Codes Classification of Other |
| 72224010 | HSN Codes Classification of Of thickness of 80 mm and above |
| 72224020 | HSN Codes Classification of Of below 80 mm |
Indonesia's Leading Supplier of Stainless Steel Square Bars in Various Sizes, Including 6mm Diameter, Din 1.4436 SS Square Bars Available at Competitive Prices in Stock Ranging from 3-450mm
Price list of 40mm Square Stainless Steel Bar
| Stainless Steel Square Bar | Price |
|---|---|
| 316 stainless steel square bar price | ₹ 65,368.17-₹ 2,10,630.77 / Ton |
| Factory Wholesale Price Free Sample Cute 316 Stainless Steel Square Bar | ₹ 2,39,683.29-₹ 2,59,439.01 / Metric Ton |
| AISI Stainless steel square Bar 10mm 12mm dia | ₹ 1,30,736.34-₹ 1,37,926.84 / Tons |
| Good quality stainless steel bars steel round bar steel square bar | ₹ 72,631.30 / Ton |
| 310 s stainless steel square bar | ₹ 65,368.17-₹ 2,17,893.90 / Ton |
| Round square hexagonal shape ASTM A276 tp304 stainless steel bar | ₹ 43,578.78-₹ 58,105.04 / Ton |
Square Bar Weight Calculation Formula
| Square Bar Weight Formula 0.00623 X ( mm ) Diam X ( mm ) Diam = Weight / Meter 0.0019 X ( mm ) Diam X ( mm ) Diam = Weight / Feet |
Square Bar Weight Formula
0.00788 X ( mm ) Diam X ( mm ) Diam = Weight / Meter |
| Square Bar Weight Forumla 0.00680 X ( mm ) Diam X ( mm ) Diam = Weight / Meter 0.002072 X ( mm ) Width X ( mm ) Diam = Weight / Feet |
Square Bar Weight Forumla 0.00798 X ( mm ) Thickness X ( mm ) Width = Weight / Meter 0.00243 X ( mm ) Width X ( mm ) Thickness = Weight / Fee |
